Hello everyone, the product being presented below is an Integrated chassis and fan cover.
Here is the product information:
1. Company Strength Background
Ningbo Jingjiang Metal Products Co., Ltd. is located in Ningbo City, Zhejiang Province. The company was established in 2020 and has been focusing on overseas market expansion. Its business has been steadily advancing through platforms such as Alibaba International Station and Made-in-China Network. Currently, the company's factory building area reaches 7,500 square meters and has approximately 90 employees. It is an enterprise specializing in metal processing of stainless steel sheets.
We have equipped a series of advanced processing equipment such as laser cutting machines, bending machines, presses, shearing machines, welding machines, and hydraulic machines. We can provide high-precision customized metal forming processing services for customers in various fields such as automobiles, kitchen and bathroom, construction, medical equipment, bathroom, ships, aviation, and rail transportation, and have accumulated mature processes and quality control experience in the production of metal structural components.
II. Core Information of the Product Product Name
Aluminum alloy casing and fan cover integrated casing
Product material
The product is made of high-quality aluminum alloy, featuring lightweight, excellent heat conductivity, corrosion resistance, and easy processing and shaping. It can be matched with different grades of aluminum alloy according to customer requirements to ensure a balance between product strength and heat dissipation performance.
Product structure and design
Integrated molding: The casing and fan cover are integrated into a single structure, avoiding the assembly errors and connection gaps of traditional separate components, enhancing the overall structural stability and sealing performance, and simplifying the subsequent assembly process for customers.
Efficient heat dissipation design: There are densely spaced comb-shaped / strip-shaped heat dissipation fins around the casing, which increase the heat dissipation area, quickly conduct the heat generated by equipment operation, and effectively reduce the working temperature of internal components, extending the equipment's service life.
Precise installation structure: Standardized installation holes, positioning grooves, and snap-fit structures are reserved, which can adapt to the installation requirements of different specifications of motors and electronic equipment, ensuring installation accuracy and firmness, and reducing structural wear caused by vibration.
Customized appearance and size: It supports adjusting the outline (round, square, and irregular shapes), heat dissipation fin density, installation hole layout, and surface treatment process according to customer drawings or samples, meeting diverse application scenarios.
III. Product Manufacturing Advantages
1. Precision Molding Process: Utilizing extrusion molding combined with CNC precision machining technology, the inner wall of the casing is ensured to have smoothness, dimensional tolerance, and the spacing of heat dissipation fins all meeting high-precision requirements, avoiding any impact on equipment operation due to structural deviations.
2. Surface Treatment Options: Various surface treatment methods such as anodizing, sandblasting, polishing, and painting can be provided. This not only enhances the corrosion resistance and wear resistance of the product but also meets the appearance texture requirements for different scenarios.
3. Stable Quality Control: From the factory inspection of raw materials to the full-process quality inspection of the finished product, each process is strictly controlled to ensure that the product's strength, heat dissipation efficiency, and dimensional accuracy meet the stable standards, suitable for industrial-level long-term operation scenarios.
IV. Application Fields
This aluminum alloy casing and fan cover integrated chassis is widely used in:
The motor industry: Encapsulation of power equipment such as servo motors, stepper motors, and variable frequency motors;
Electronic devices: Frequency converters, power modules, industrial control equipment, etc., which require efficient heat dissipation;
New energy field: Components such as motor of new energy vehicles and charging station modules for structural protection and heat dissipation;
Industrial automation: Enclosures for precision equipment such as robot joints and drive units of automated equipment.
V. Service Assurance
Support for customizing based on provided drawings or samples, enabling optimization of product structure and process according to specific customer requirements;
Offer small-batch prototyping services to quickly verify product compatibility and reduce customer development risks;
Relying on a mature production management system, ensure the delivery cycle and product quality stability of large orders;
Professional foreign trade service team, capable of efficiently connecting with overseas customers and providing full-process support from quotations, production to logistics.
VI. Product Real-Photo Display
The following are the real-photo images of our aluminum alloy case and fan cover integrated case. They can clearly show the product structure and process details:

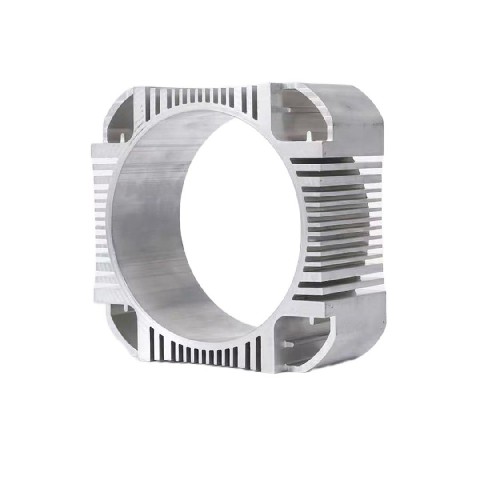

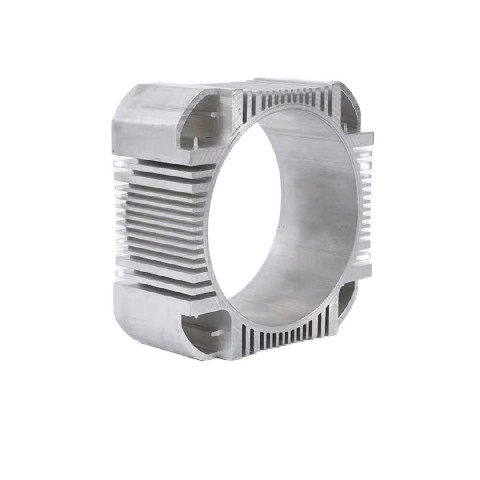

Different angles of product real-photo
Overall appearance:
o Circular / Square integrated structure, with uniform distribution of heat dissipation fins, compact and aesthetically pleasing
o Installation holes and positioning structures are clearly visible, facilitating quick assembly
Close-up details:
o The thickness of the heat dissipation fins is uniform, the edges are smooth without burrs, ensuring heat dissipation efficiency and safety
o The inner wall of the case is flat, with high dimensional accuracy, and can closely fit the internal components
