WinkEE New Prodcut | TM-K090VH Series 90W Encapsulated AC/DC Converters

4 month ago

2 0

DONGGUAN IOTPOWERS CO., LTD

 11 month year

Product details

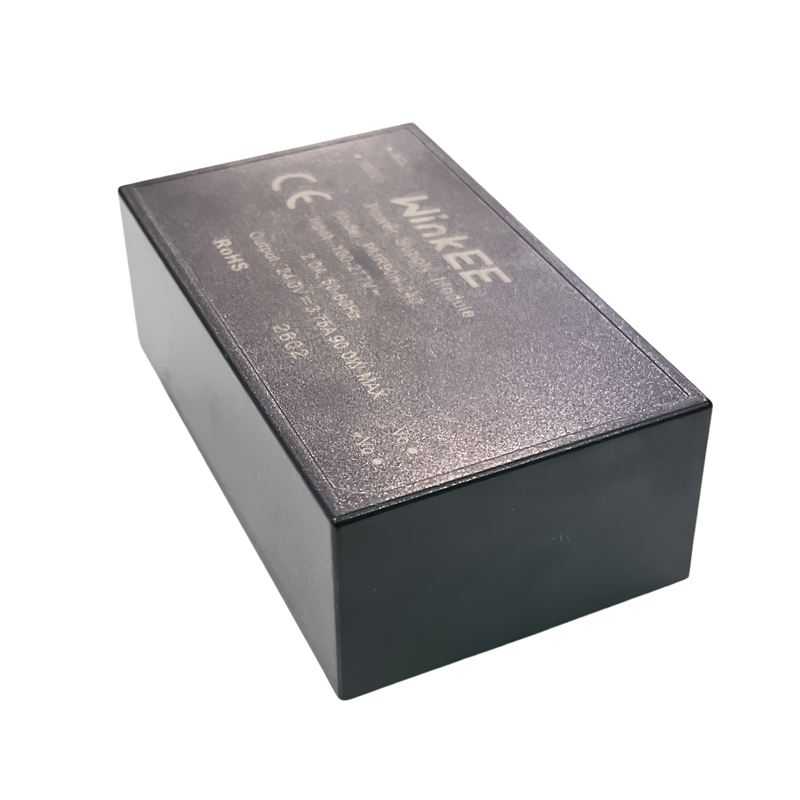

The TM-K090VH series is a 90W encapsulated AC/DC converter engineered for high reliability and universal compatibility. It accepts a wide input range of 85–305VAC / 100–430VDC at 47–63Hz, supporting global power systems with stable single output voltages of 12V, 15V, 24V, and 48V. Delivering up to 93% typical efficiency and only 0.1W typical standby power, it provides exceptional energy savings for long‑term operation.

Model Number	TM-K090VH
Power	90W
Input Voltage（VAC）	85~305VAC
Input Voltage（VDC）	100~430VDC
Output Voltage（VDC）	12, 15, 24, 48v
Output Current（mA）	6700, 5670, 3750, 1875
Package	DIP
Size	87x52x29.5mm
Certification	UL、CB、CE、UKCA

With 4200VAC input‑to‑output isolation, OVC III rating, and full protection including over‑voltage, over‑current, and short circuit with automatic recovery, the module ensures safe and stable performance. It meets strict safety standards including UL/EN/IEC 62368‑1, EN60335‑1, EN61558‑1, UKCA, and achieves CISPR32 / EN55032 Class B EMC without external components. Encapsulated for dust and moisture resistance, it operates from ‑40°C to +85°C up to 5000m altitude, cooled by free air convection. Compact at 87×52×29.5mm and weighing 200g, it requires no external parts and carries a 5‑year warranty, fully RoHS compliant.

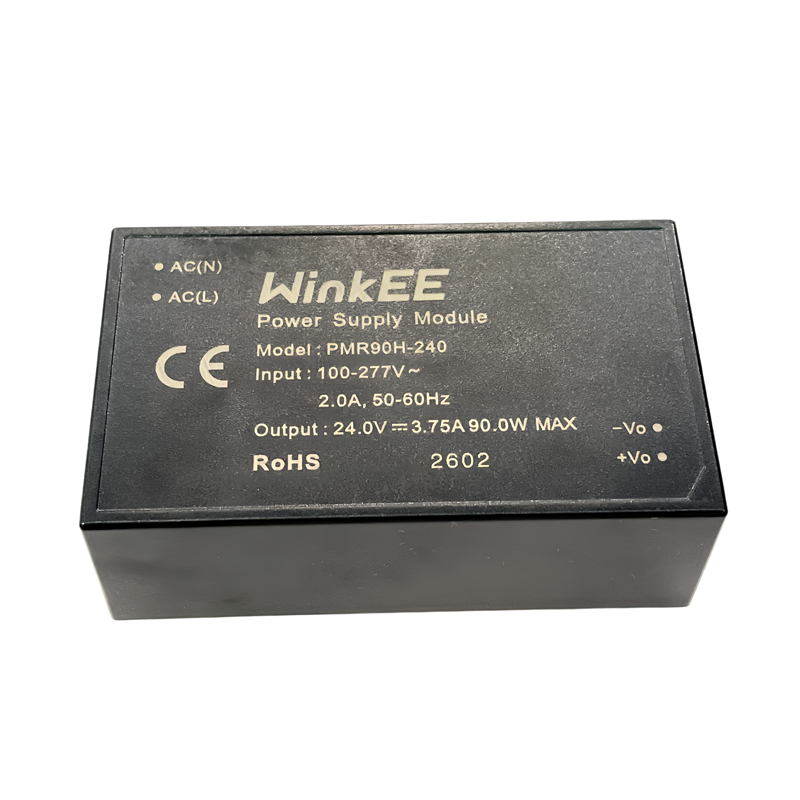

90W reliability and efficiency AC/DC Converters

The TM-K090VH series is widely applied in industrial control, smart home, security surveillance, IoT gateways, medical auxiliary equipment, intelligent building, transportation, and telecom systems.

In industrial control, its wide temperature range and high isolation ensure stable power for PLCs, drivers, and sensors in harsh environments.

For security systems, low ripple and noise support clear imaging and reliable transmission of cameras and monitors.

In IoT gateway applications, ultra‑low standby power extends service life and reduces energy cost.

Medical auxiliary equipment benefits from high safety approvals and low leakage current to meet strict medical requirements.

Intelligent building systems use its OVC III rating and compact design for lighting, control modules, and access control.

In transportation, anti‑vibration and wide input adapt to vehicle and signal power fluctuations.

Telecom infrastructure relies on its high MTBF and full EMC compliance for stable base station and communication power supply.

With robust performance and certifications, this converter provides safe, durable, and maintenance‑free power solutions for mission‑critical applications worldwide.
