I. Product Overview

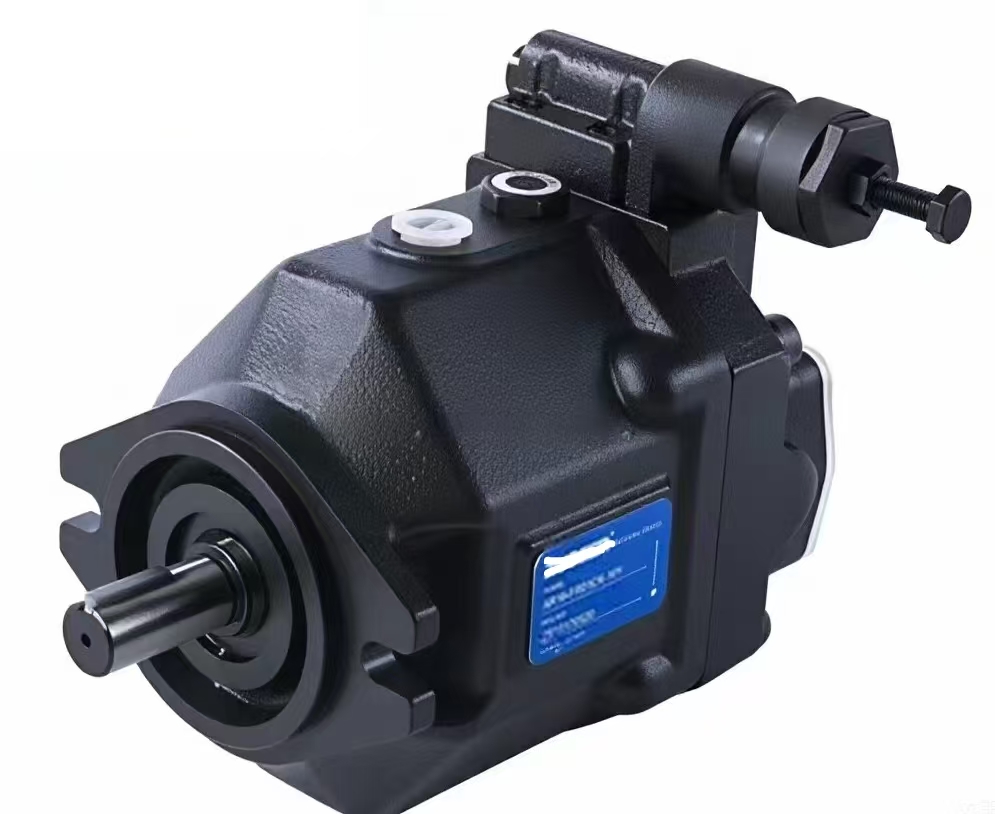

TheAR16-FR01C-22is anaxial variable piston pumpmanufactured by Yuken, part of the AR series. Renowned for itshigh efficiency, low noise, high reliability, and compact, lightweight design, this pump is widely applied in automatic hydraulic machine tool industries, includinginjection molding machines, die-casting machines, leather machinery, shoe-making machines, hydraulic forming machines, stretching machines, and ceramic tile presses.
------
II. Key Specifications
1. Model: AR16-FR01C-22
2. Type: Axial variable piston pump
3. Displacement: 22.2 cm³/rev (some sources indicate 16 cm³/rev; specifics may vary by model suffix)
4. Rated Pressure: 16 MPa (some sources indicate 21 MPa; confirm based on exact model)
5. Speed Range: 1,500 – 3,000 rpm (depends on model and operating conditions)
6. Control Method: Pressure-compensated variable control (FR01 type)
7. Mounting Type: Flange-mounted
8. Rotation Direction: Clockwise (viewed from the shaft end)
9. Fluid: Mineral hydraulic oil (ISO VG32 or VG46)
10. Fluid Temperature Range: -20°C to 80°C
11. Weight: Approximately 9.8 – 12 kg (varies by configuration)
12. Material: Cast iron or aluminum alloy (some models feature aluminum alloy housings for reduced weight)
------
III. Performance Features
1. High Efficiency:
• Pistons and piston bores are precision-machined circular components, ensuring high volumetric efficiency even under high pressure.
2. Low Noise:
• Designed for low noise operation, with optimal motor-pump matching to minimize acoustic emissions.
3. Compact & Lightweight:
• Utilizes high-grade silicon steel sheets or aluminum alloy housings for a compact, lightweight structure, facilitating easy installation and maintenance.
4. Versatile Control Options:
• Offers multiple control methods, ranging from pressure-compensated control to electro-hydraulic proportional pressure and flow control, meeting diverse application requirements.
5. Long Service Life:
• Constructed from special alloy materials with wear and corrosion resistance, ensuring extended operational lifespan.
6. Energy-Saving:
• Pressure compensation control prevents excess flow, reduces heat generation, and achieves energy savings.
------
IV. Application Fields
The AR16-FR01C-22 is widely used in the following industries:
1. Injection Molding Machines: Provides stable hydraulic power for the injection molding process.
2. Die-Casting Machines: Supports high-pressure hydraulic requirements during metal die-casting.
3. Leather Machinery: Utilized in hydraulic systems for leather processing equipment.
4. Shoe-Making Machines: Offers precise hydraulic control for shoe manufacturing machinery.
5. Hydraulic Forming Machines: Delivers high-pressure hydraulic power for metal or non-metal forming processes.
6. Stretching Machines: Used for hydraulic control in material stretching tests or forming operations.
7. Ceramic Tile Presses: Provides consistent hydraulic pressure during ceramic tile production.
------
V. Installation & Maintenance
1. Pre-Installation Preparation:
• Ensure the system tank and piping are clean and free of contaminants.
• The pump's inlet must maintain sufficient suction pressure to avoid cavitation and air ingestion.
2. Installation Requirements:
• Use a flexible coupling to prevent stress from misalignment or thrust.
• Maximum allowable misalignment error (TIR) < 0.1mm; maximum allowable angular error < 0.2°.
• The suction port piping diameter must match the pump's specified flange diameter.
• For steel piping at the suction or discharge ports, use rubber hoses to minimize noise from additional loads.
3. Oil Filling & Air Venting:
• Before initial startup, fill the pump with clean hydraulic oil and vent air through the bleed port.
4. Startup:
• Perform a no-load jog operation to confirm correct rotation direction before gradually increasing pressure to the operating level.
5. Pressure Adjustment:
• The set pressure of the FR01C variable mechanism can be adjusted via the regulating screw, within the system's allowable range.
6. Maintenance:
• Regularly check fluid cleanliness (recommended NAS 9 grade or better) and replace filters and hydraulic oil as scheduled.
• Monitor the pump for abnormal noise or temperature changes; stop immediately if detected.
7. Warnings:
• Never operate under overpressure, oil starvation, or severe contamination conditions.
• Fully relieve system pressure before maintenance.
