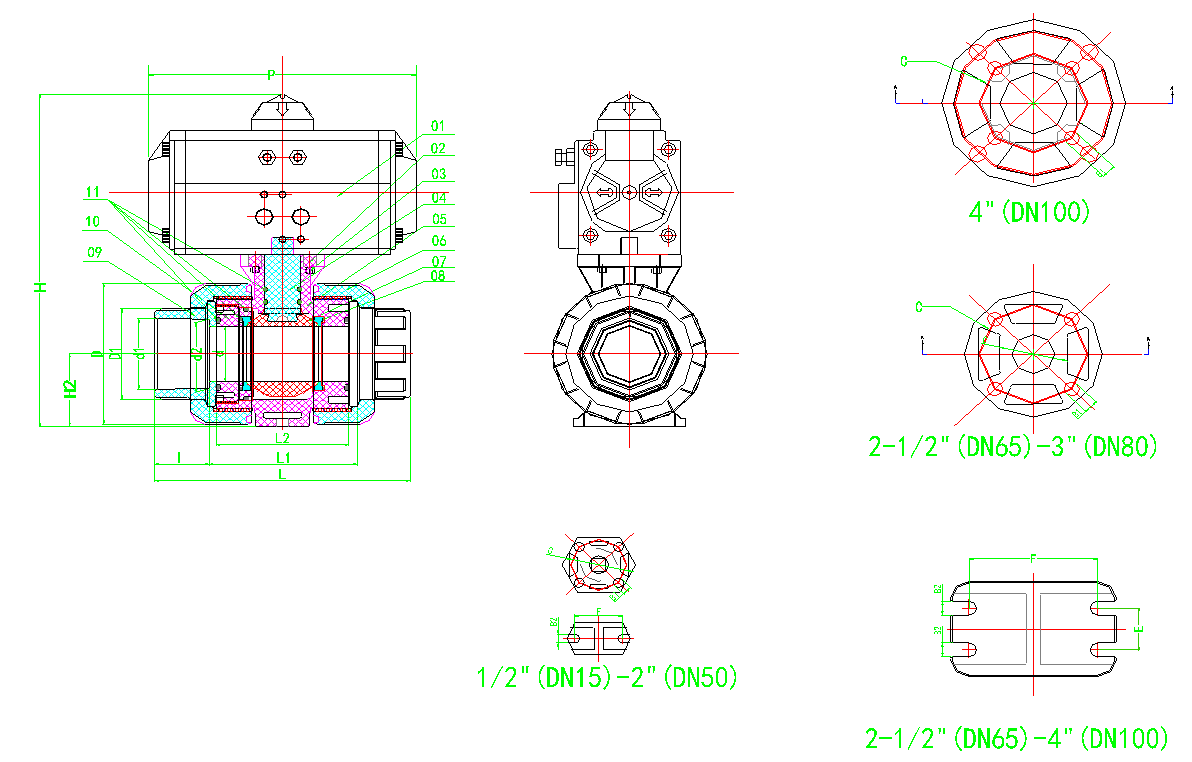

| PNEUMATIC ACTUATED Union BALL VALVE ( UPVC CPVC PPH PVDF ) |
|||||||
| Size: 1/2＂（DN15）～4＂(DN100) | |||||||
| Socket： (DIN / JIS/ ANSI /CNS) | |||||||
| Thread： (PT/NPT/BSPF) | |||||||
| Pressure Rating: 1/2”(DN15)-2”(DN50) PN16 2-1/2”（DN65）-4”(DN100) PN10 |
| S/No. | Item | Material | Q’ty |
| 1 | Pneumatic Actuator | Alu alloy | 1 |
| 2 | Bolt | SUS304 | 4 |
| 3 | Nut | SUS304 | 4 |
| 4 | Stem | SUS304+UPVC | 1 |
| 5 | Body | UPVC | 1 |
| 6 | Screw Nut | UPVC | 2 |
| 7 | Ball | UPVC | 1 |
| 8 | Seat | PTFE | 2 |
| 9 | Socket | UPVC | 2 |
| 10 | Seal Carrier | UPVC | 1 |
| 11 | ORING | EPDM/FKM | 7 |
| Size | d | I | d1 | d2 | ||||||
| UPVC | UPVC | |||||||||
| DIN | JIS | ANSI | CNS | DIN | JIS | ANSI | CNS | |||
| 1/2" (DN15) | 15 | 23.00 | 20.28 | 22.35 | 21.54 | 22.35 | 19.95 | 21.75 | 21.25 | 21.75 |
| 3/4" (DN20) | 20 | 26.00 | 25.30 | 26.40 | 26.87 | 26.40 | 24.95 | 25.70 | 26.58 | 25.70 |
| 1" (DN25) | 25 | 29.00 | 32.30 | 32.40 | 33.65 | 34.50 | 31.95 | 31.70 | 33.28 | 33.90 |
| 1-1/4" (DN32) | 32 | 32.50 | 40.35 | 38.45 | 42.40 | 42.50 | 39.95 | 37.65 | 42.05 | 41.90 |
| 1-1/2" (DN40) | 40 | 35.50 | 50.35 | 48.45 | 48.50 | 48.45 | 49.95 | 47.65 | 48.12 | 47.65 |
| 2" (DN50) | 50 | 38.50 | 63.40 | 60.50 | 60.60 | 60.50 | 62.90 | 59.60 | 60.18 | 59.60 |
| 2-1/2" (DN65) | 63 | 44.50 | 75.40 | 76.50 | 73.35 | 76.50 | 74.90 | 75.60 | 72.85 | 75.60 |
| 3" (DN80) | 75 | 51.00 | 90.45 | 89.60 | 89.30 | 89.60 | 89.90 | 88.60 | 88.70 | 88.60 |
| 4" (DN100) | 90 | 61.50 | 110.45 | 114.60 | 114.75 | 114.60 | 109.90 | 113.60 | 114.10 | 113.60 |
| Size | D | D1 | L | L1 | L2 | H | H2 | P | C | B1 | B2 | E | F | Operating torque (N.M) |
| 1/2" (DN15) | 56.00 | 32.00 | 112.00 | 66.00 | 57.00 | 162.00 | 28.70 | 125 | 36 | M5 | 6 | / | 31 | 2.00 |
| 3/4" (DN20) | 65.00 | 37.00 | 120.00 | 68.00 | 59.00 | 174.00 | 32.70 | 125 | 36 | M5 | 6 | / | 35 | 2.50 |
| 1" (DN25) | 76.00 | 45.50 | 136.00 | 76.00 | 68.00 | 208.00 | 38.75 | 157 | 36 | M5 | 6 | / | 42 | 3.00 |
| 1-1/4" (DN32) | 87.00 | 55.50 | 150.50 | 85.00 | 76.00 | 214.00 | 44.25 | 157 | 50 | M6 | 8 | / | 56 | 3.50 |
| 1-1/2" (DN40) | 101.00 | 62.00 | 168.00 | 95.50 | 86.50 | 237.00 | 51.50 | 175 | 50 | M6 | 8 | / | 58 | 4.50 |
| 2" (DN50) | 121.00 | 79.00 | 180.00 | 103.00 | 92.00 | 258.00 | 62.00 | 175 | 50 | M6 | 8 | / | 70 | 5.50 |
| 2-1/2" (DN65) | 150.00 | 94.20 | 235.00 | 146.00 | 134.00 | 310.00 | 79.50 | 191 | 70 | M8 | 10 | 30 | 84 | 7.50 |
| 3" (DN80) | 169.50 | 113.00 | 265.00 | 163.00 | 148.00 | 341.00 | 90.00 | 217 | 70 | M8 | 10 | 32 | 90 | 8.50 |
| 4" (DN100) | 190.00 | 135.00 | 304.00 | 181.00 | 157.00 | 379.00 | 96.00 | 252 | 70/100 | M8/M10 | 10 | 40 | 100 | 12.00 |
| PNEUMATIC ACTUATED FLANGED BALL VALVE ( UPVC CPVC PPH PVDF ) | |||||||||||||
| Size: 1/2＂(DN15)～4＂(DN100) | |||||||||||||
| Flange： DIN / JIS/ ANSI | |||||||||||||
| Pressure Rating: PN10 |
| S/No. | Item | Material | Q’ty |
| 1 | Pneumatic Actuator | Alu alloy | 1 |
| 2 | Bolt | SUS304 | 4 |
| 3 | Nut | SUS304 | 4 |
| 4 | Stem | SUS304+UPVC | 1 |
| 5 | Body | UPVC | 1 |
| 6 | Ball | UPVC | 2 |
| 7 | Seat | PTFE | 1 |
| 8 | ORING | EPDM/FKM | 6 |
| 9 | Seal Carrier | UPVC | 1 |
| SIZE | d | UPVC/CPVC/PPH/PVDF | |||||||||
| DIN | JIS | ANSI | |||||||||
| D1 | d1 | n | D1 | d1 | n | D1 | d1 | n | |||
| 1/2" (DN15) | 15 | 65 | 14 | 4 | 70 | 15 | 4 | 60.3 | 16 | 4 | |
| 3/4" (DN20) | 20 | 75 | 14 | 4 | 75 | 15 | 4 | 69.8 | 16 | 4 | |
| 1" (DN25) | 25 | 85 | 14 | 4 | 90 | 19 | 4 | 79.4 | 16 | 4 | |
| 1-1/4" (DN32) | 32 | 100 | 18 | 4 | 100 | 19 | 4 | 88.90 | 16 | 4 | |
| 1-1/2" (DN40) | 40 | 110 | 18 | 4 | 105 | 19 | 4 | 98.40 | 16 | 4 | |
| 2" (DN50) | 50 | 125 | 18 | 4 | 120 | 19 | 4 | 121.00 | 19 | 4 | |
| 2-1/2" (DN65) | 63 | 145 | 18 | 4 | 140 | 19 | 4 | 139.70 | 19 | 4 | |
| 3" (DN80) | 75 | 160 | 18 | 8 | 150 | 19 | 8 | 152.40 | 19 | 4 | |
| 4" (DN100) | 90 | 180 | 18 | 8 | 175 | 19 | 8 | 190.00 | 19 | 8 | |
| SIZE | L | D | D2 | b | H | H2 | P | W | C | B1 | Operating torque (N.M) |
| 1/2" (DN15) | 122 | 95 | 40.00 | 15 | 181.00 | 47.60 | 125.00 | 48 | 36 | M5 | 2.00 |
| 3/4" (DN20) | 125 | 105 | 48.00 | 16 | 194.50 | 53.30 | 125.00 | 48 | 36 | M5 | 2.50 |
| 1" (DN25) | 143 | 125 | 56.50 | 17 | 232.00 | 62.60 | 157.00 | 48 | 36 | M5 | 3.00 |
| 1-1/4" (DN32) | 186 | 140 | 66.50 | 18 | 214.00 | 70.00 | 157.00 | 68 | 50 | M6 | 3.50 |
| 1-1/2" (DN40) | 207 | 145 | 76.00 | 20 | 237.00 | 72.50 | 175.00 | 68 | 50 | M6 | 4.50 |
| 2" (DN50) | 222 | 165 | 93.40 | 22 | 258.00 | 80.00 | 175.00 | 68 | 50 | M6 | 5.50 |
| 2-1/2" (DN65) | 280 | 185 | 117.50 | 24 | 310.00 | 90.00 | 191.00 | 90 | 70 | M8 | 7.50 |
| 3" (DN80) | 310 | 200 | 129.00 | 25 | 341.00 | 100.00 | 217.00 | 90 | 70 | M8 | 8.50 |
| 4" (DN100) | 352 | 229 | 149.00 | 25 | 379.00 | 125.00 | 252.00 | 100 | 70 | M8 | 12.00 |
