I. Product Overview

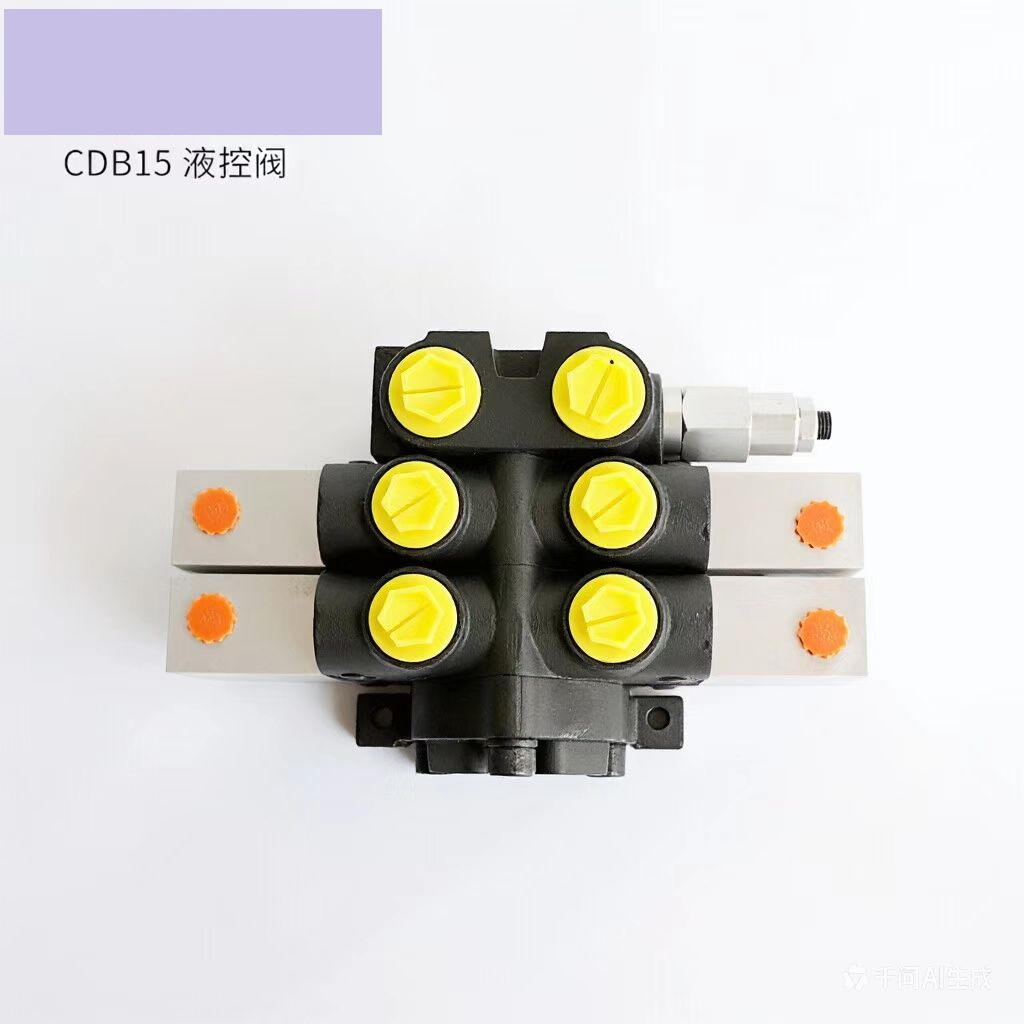

TheCDB15 Hydraulic Control Valveis a hydraulic component that integrates a flow divider valve and a multi-way directional control valve into a single unit. It is designed for applications where the vehicle's steering system and cylinder operating system share a single oil pump. This design simplifies the system structure, facilitating easier installation and maintenance.

------

II. Product Features

1. Compact Structure:

• The CDB15 features a modular (slice-type) design, allowing for flexible combinations of 1 to 10 sections to meet diverse user requirements.

2. Comprehensive Functionality:

• It offers multiple functions, including flow division, directional control, and pressure stabilization, ensuring stable operation of the hydraulic system.

3. Safe and Reliable:

• Equipped with a self-locking valve stem to prevent vibrations caused by negative pressure inside the tilt cylinder.

• Locks the tilt cylinder when the engine is off, avoiding accidental movements and ensuring operational safety.

4. Easy Maintenance:

• Its modular design simplifies repairs and reduces maintenance costs.

------

III. Technical Specifications

1. Nominal Diameter:

• Typically15 mm(may vary by model).

2. Connection Type:

• Threaded or flange connections (determined by specific model and application).

3. Working Pressure:

• Capable of withstanding high working pressures, suitable for heavy-duty applications like construction machinery.

4. Flow Range:

• Varies depending on the model and application scenario.

5. Valve Stem Neutral Positions:

• Includes multiple types such asA, Z, O, Y, selectable based on actual needs.

------

IV. Application Areas

The CDB15 Hydraulic Control Valve is widely used in hydraulic systems of:

• Small-tonnage forklifts

• Mini loaders

• Mini excavators

• Other lifting and transport machinery, mining equipment, and sanitation machinery

It provides stable and reliable hydraulic control solutions for these devices.

------

V. Working Principle

The CDB15 Hydraulic Control Valve achieves various hydraulic functions by moving the valve spool to alter oil path connections and flow directions. For example:

• In directional control valve sections, spool movement controls cylinder extension/retraction and steering system actions.

• In flow divider sections, adjustable flow ratios ensure stable oil supply to both the steering and working systems.
