I. Basic Information

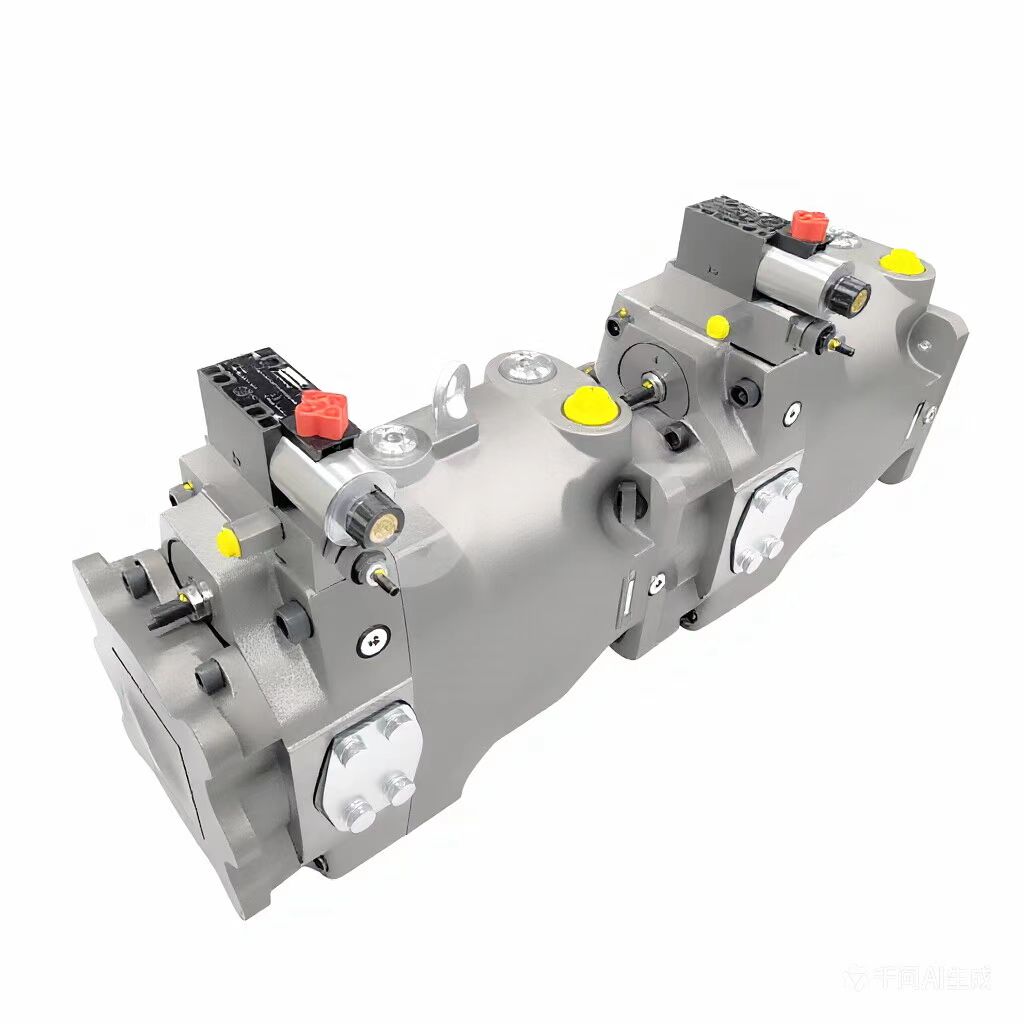

• Model: PV180R1K1T1NMMC

• Type: High-pressure axial variable piston pump

• Brand: PARKER

II. Technical Parameters and Features

• Displacement: 180 cm³/rev

• Rotation Direction: Clockwise (R)

• Mounting Configuration: Metric ISO 3019/2, 4-hole mounting flange, Ø160 mm cylindrical shaft with parallel key

• Pressure Compensation Variable Controller: Standard type (constant pressure), with internal pilot valve

• Oil Viscosity Range: Under normal operating conditions, the oil viscosity ranges from 16 to 100 mm²/s, with a maximum allowable viscosity of 1000 mm²/s

• Rated Operating Pressure: Up to 350 bar

• Self-priming Speed: High

• Shaft Speed: Up to 3000 rpm

• Through-shaft Drive Capability: 100% nominal torque

• Noise Level: Low

• Structural Characteristics:

• Compact structure with flexible mounting interfaces

• Optimized design using FEM (Finite Element Method) for minimal output fluctuations and low noise in the pre-compression chamber

• Modular compensator with rapid response

• Easy maintenance and repair

III. Application Areas

• Construction Machinery: Excavators, loaders, bulldozers, graders, etc.

• Industrial Equipment: Injection molding machines, die-casting machines, hydraulic presses, etc.

• Marine Machinery: Hydraulic systems for various types of ships

• Other Fields: Agricultural machinery, energy industry, automotive industry, as well as process control and pressure control in multiple sectors

IV. Product Advantages

• High Efficiency: Optimized design reduces energy loss, ensuring efficient operation of the hydraulic system under various working conditions

• Strong Durability: Manufactured with high-quality materials, maintaining good performance in harsh environments and offering a long service life

• High Reliability: Reliable operation with large flow rates, meeting the demands of complex working conditions

• Intelligent Control: Some models feature microprocessor intelligent control with an LCD display and the ability to communicate with computers
