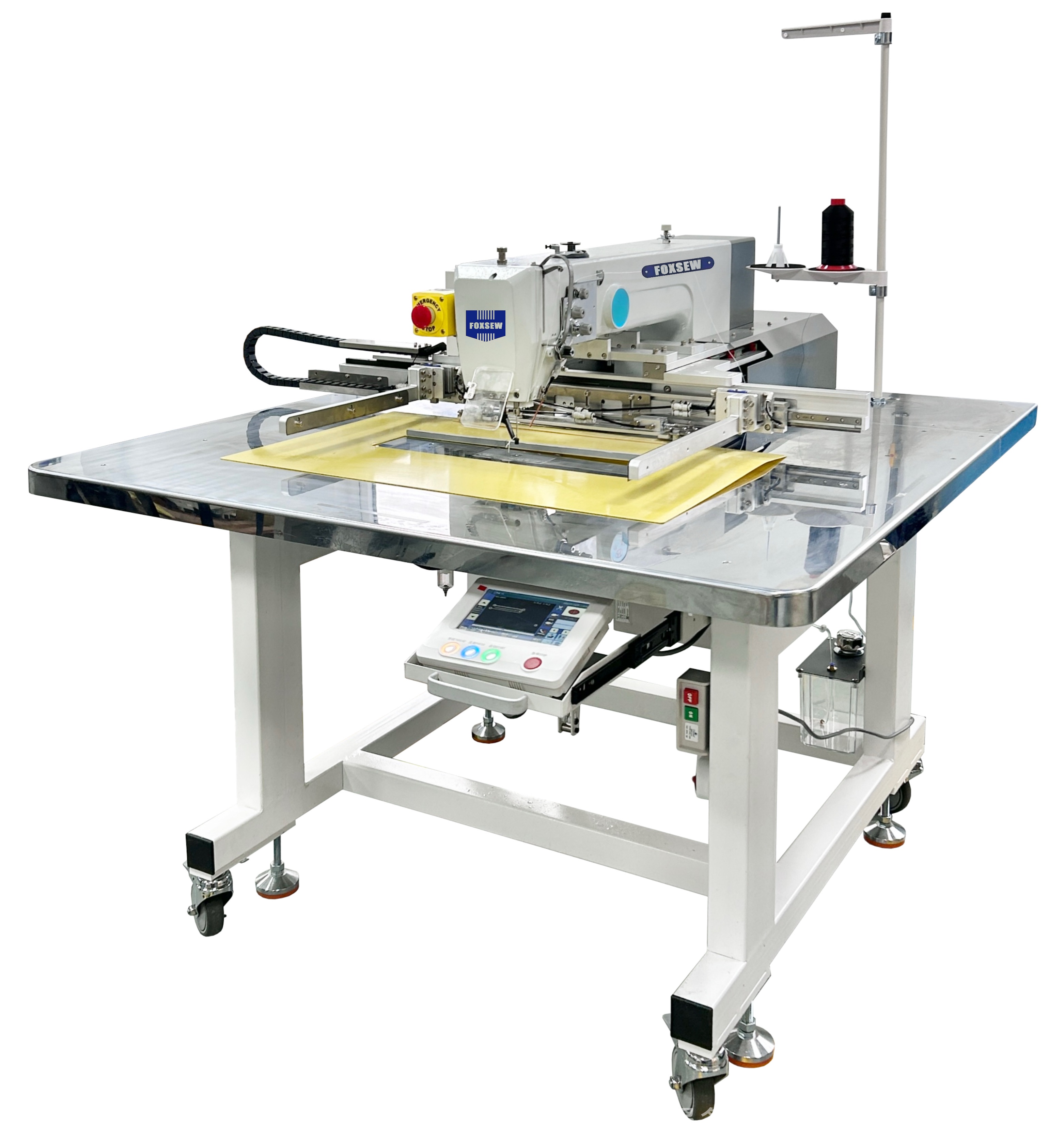

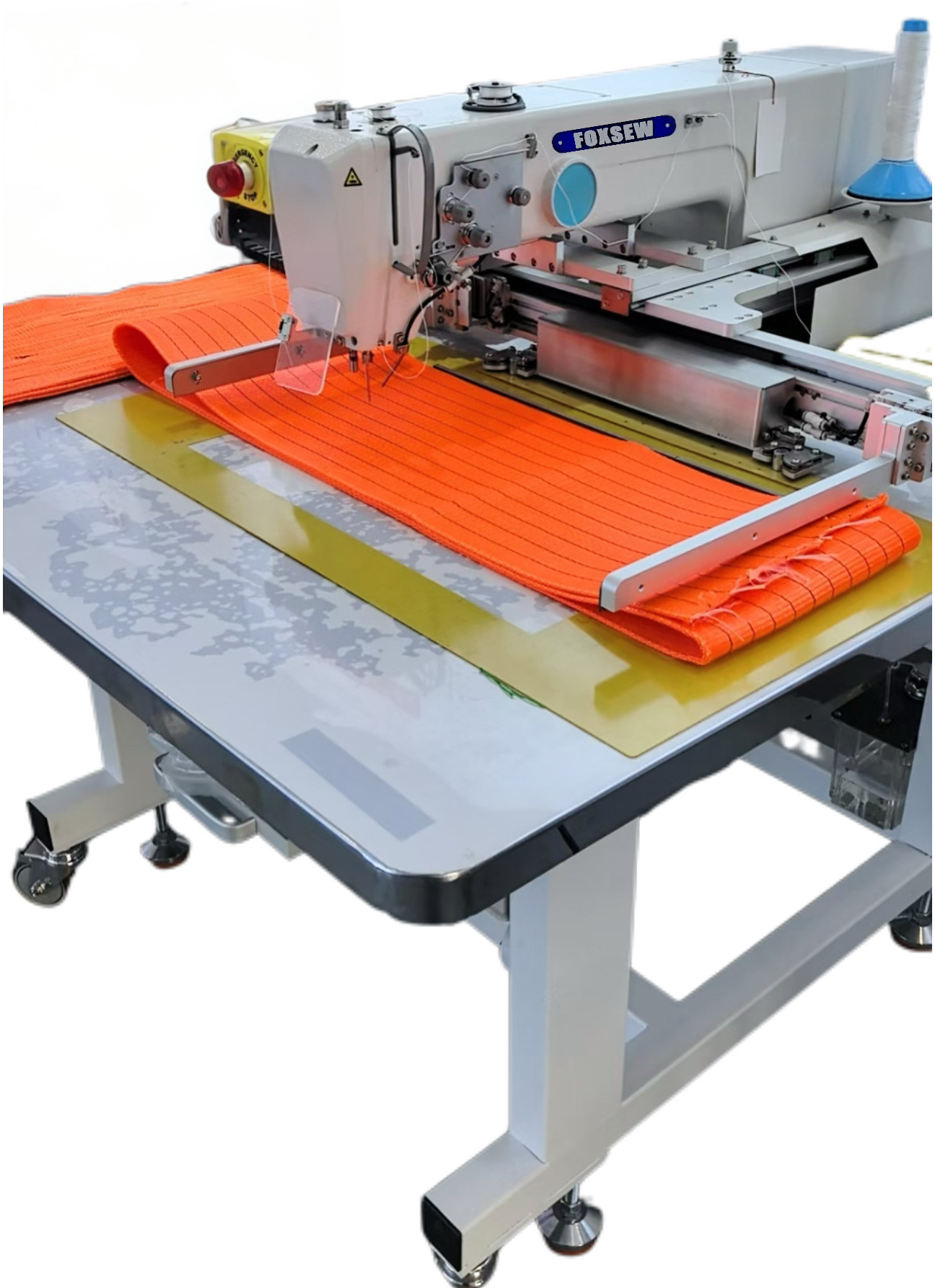

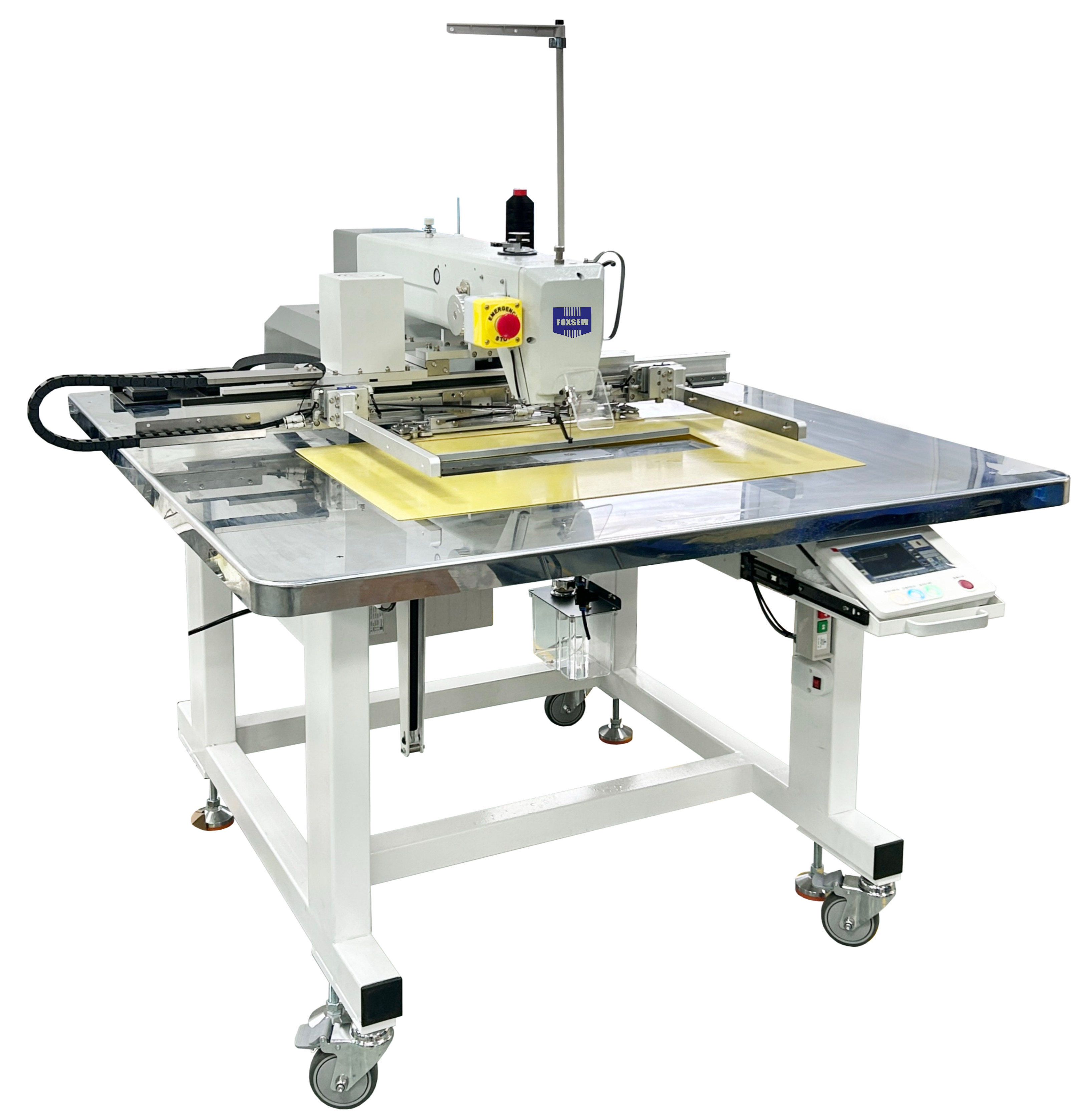

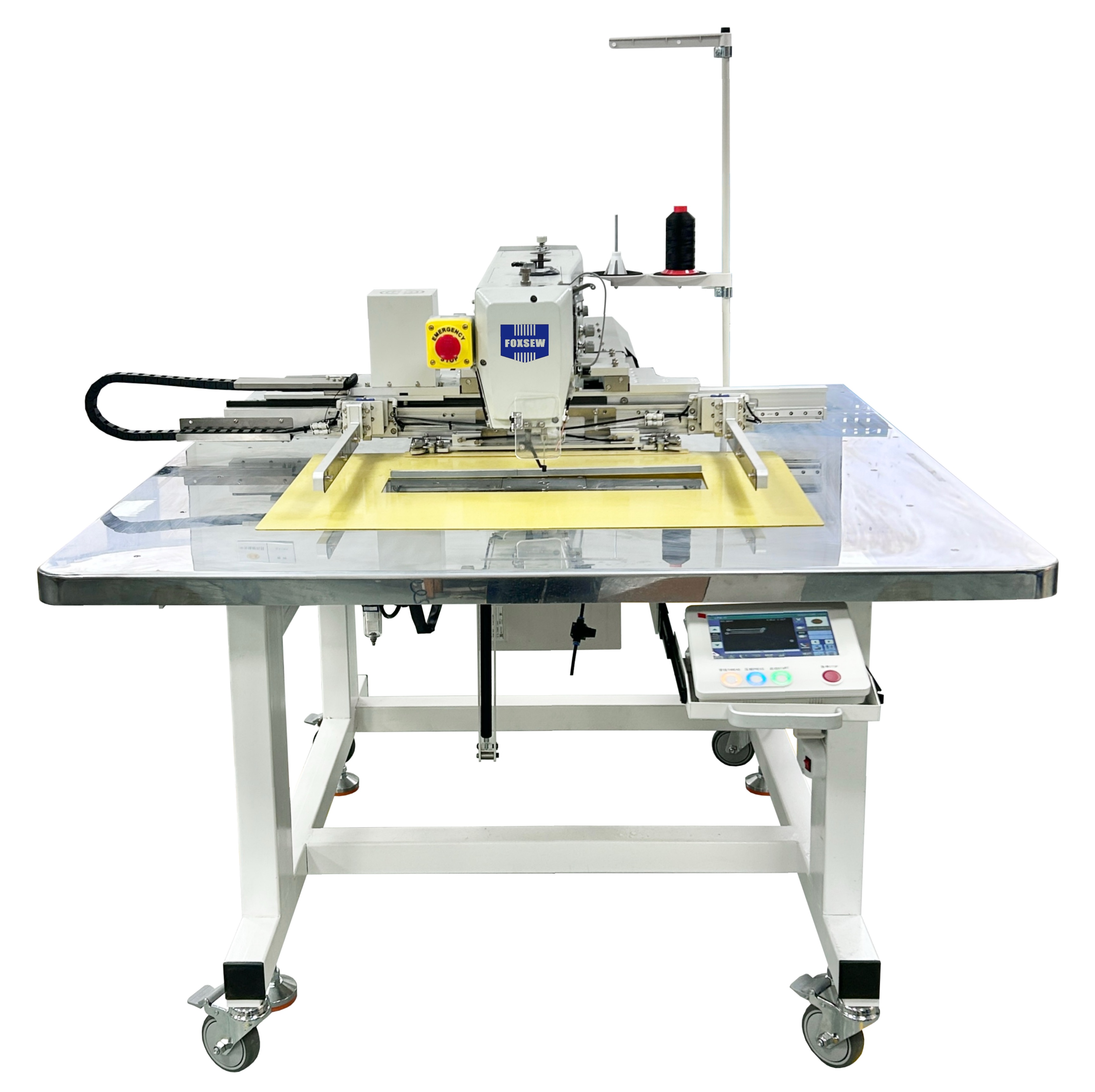

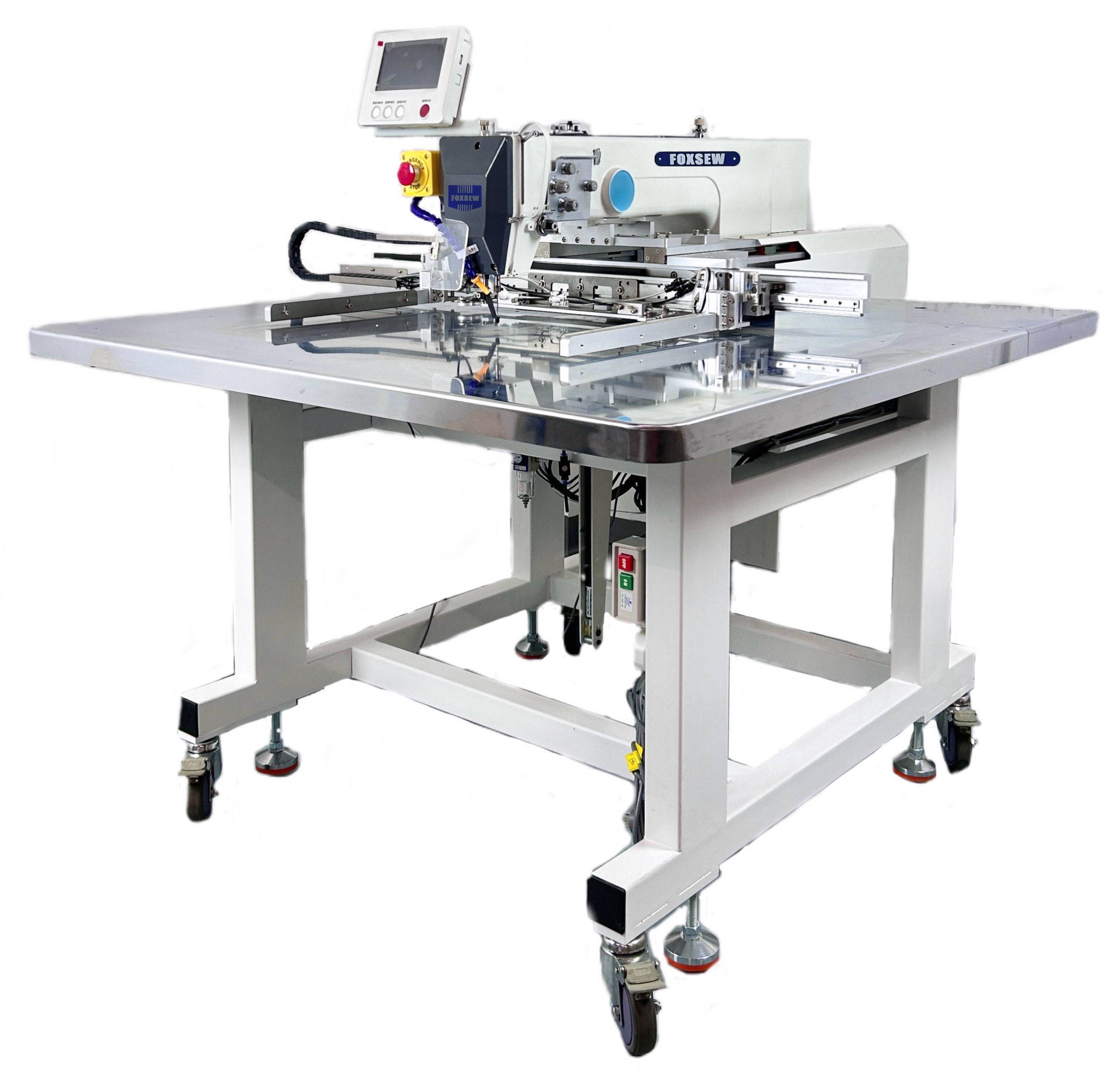

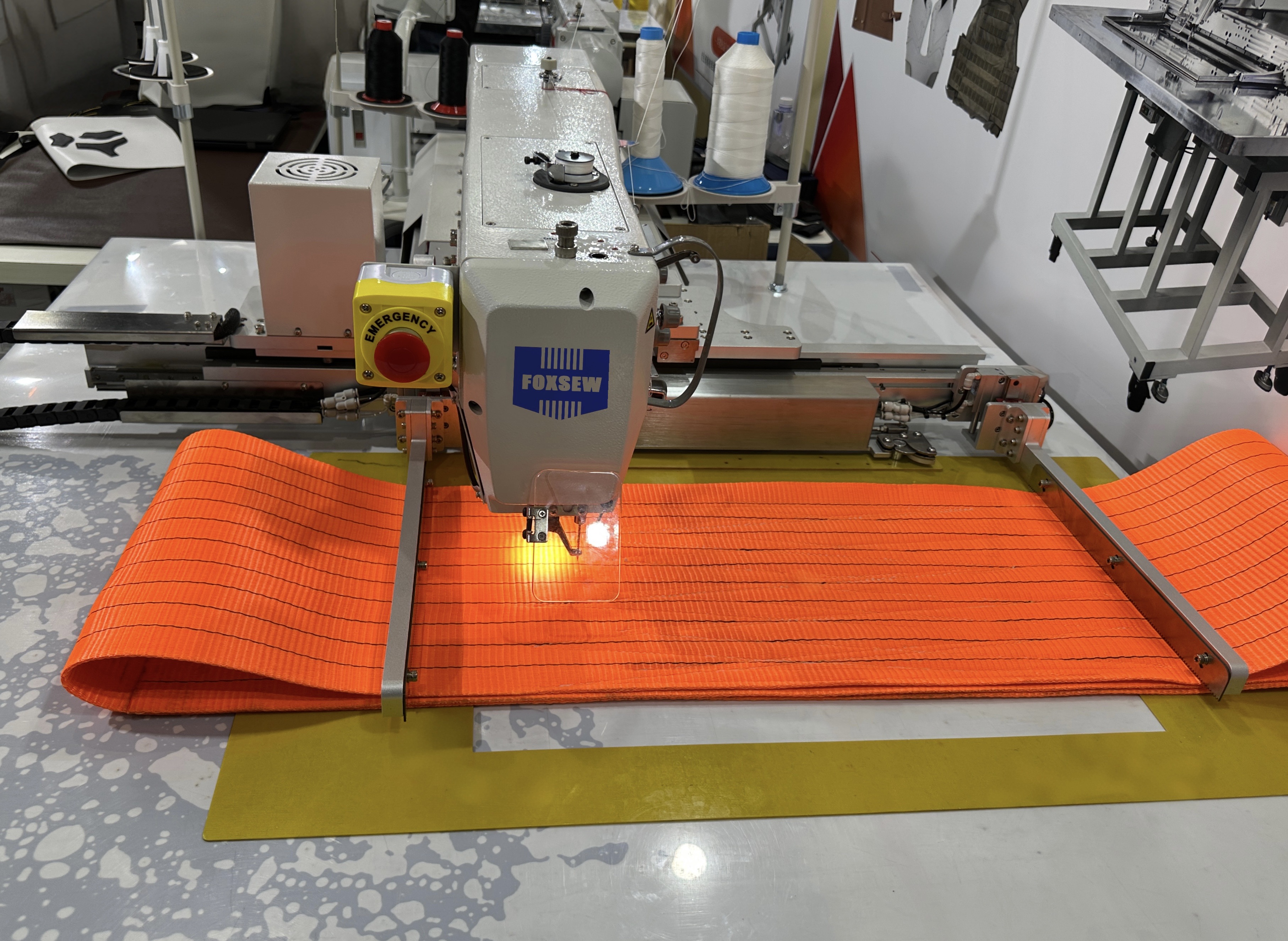

FOXSEW Automatic Programmable Heavy Duty Pattern Sewing Machine FX6040HP and FX3020HP
Working Video: www.foxsew.com/company-video/large-size-programmable-automatic-heavy-duty-webbing-pattern-sewing-machine-3356.html
Application: Lifting Slings, Safety Harness Webbing, Webbing Slings, Ratchet Tie Down, Safety Belts, Rubber Sheets, Logging Belts, Climbing Ropes, Marine Ropes, Rescue Ropes, Cargo Slings, Harness Webbing, Polyester Lifting Slings, Cargo Lashing Straps, Safety Harness, Military Equipment, Shoes Soles, Backpacks, Crane Slings, Lanyards, Fall Protection and Fall Arrest Systems, Parachute Harness, Buffing Wheels, Polishing Wheels, Webbing Cargo Nets, Cargo Netting and Safety Nets, Upholstered Furniture, Luggage and Suitcases, Leather Goods, Sofas, Life Vest, Industrial Safety Products, Saddles, Tents and Canopies, Sails, Parachutes, Big Bag and Container Bag, FIBC Bags, Hot Air Balloons, Bulletproof Vest, Rigging Products, Kernmantle Ropes, etc...
Features: With 6-times Larger hook and large bobbin capacity offer high efficiency; Can sew 2-5 ply synthetic webbing slings (3.5mm of each) together without any difficulty; This high speed automatic heavy duty programmable sewing machine is capable of sewing various materials such as Nylon, Polyester, Webbing, Polypropylene, Kevlar, Vinyl, Leather and Canvas; Hardware including Ratchet, shackles, thimbles, choker triangles and others can be sewn into the slings for varying applications; Computer-controlled, high automation to maximize savings in labor; Programmable (free software), updating and storage easier.
Spread the threading pressure and neatly stitch
Using Germany Durkopp Adler new cylinder-type double-clutching thread tension device effectively disperses the thread tension pressure, and the thread is not easy to knot and twist during the sewing process, the thread is smoother and the stitch are more beautiful. Reduce the frequency of thread breaking by more than 20%.
Stable sewing, avoid thread jamming or thread blocking

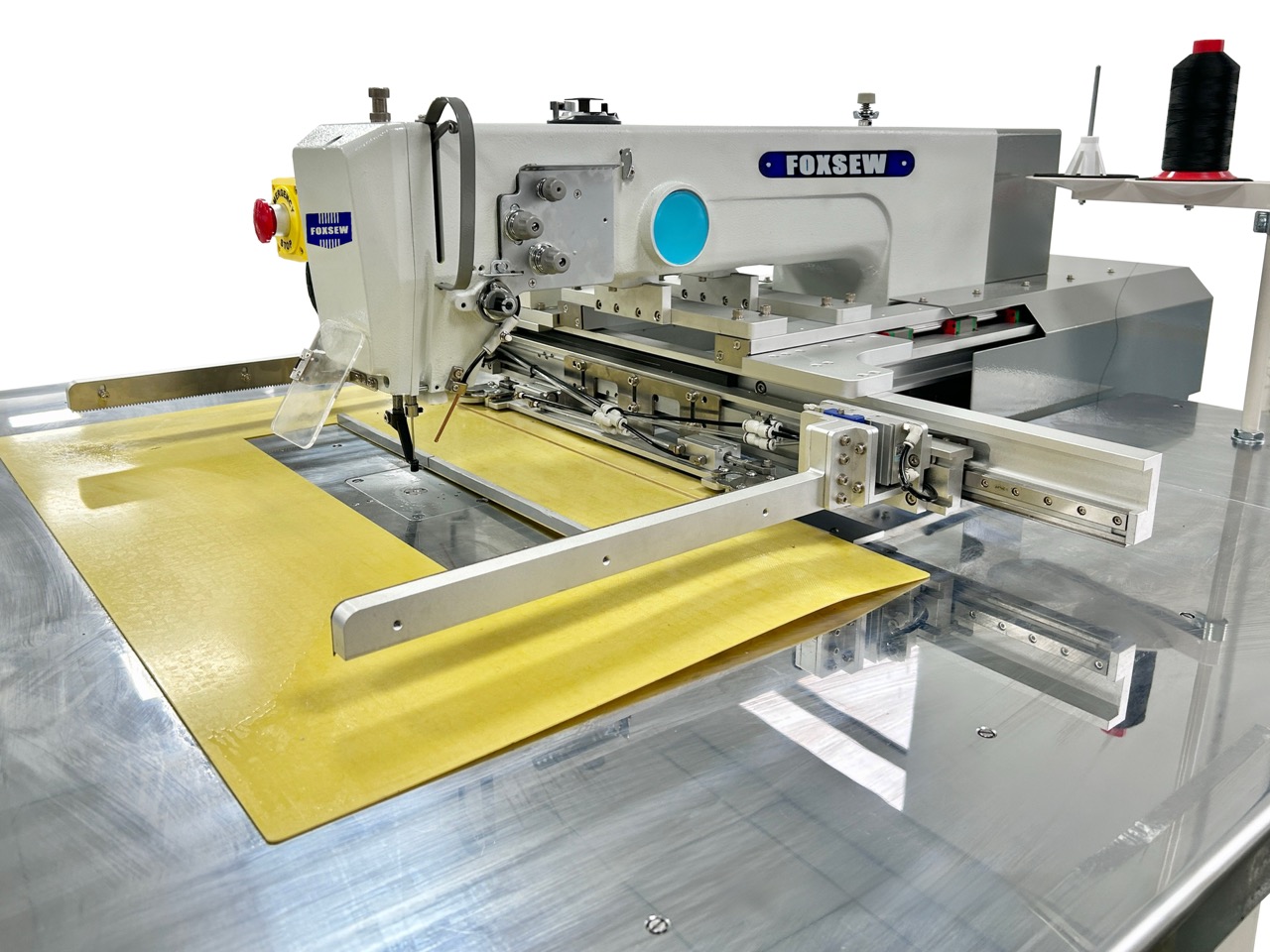

From the previous 9mm width guide rail, upgraded to now 15mm width high-precision guide rail. Previously, there were only 2 guide rails in the Y-Axis direction; now upgraded to 4 guide rails, accuracy improved by more than 90%, durability improved by over 50%, and overloading capacity increased by more 80%.
Double Belts Driving, Precise Force Application
The Y-Axis direction transmission part of the old model used one imported-belt for intermediate transmission; now upgraded to two imported belts with an 30cm spacing between each belt, effectively allowing both belts to work simultaneously.
Specifications:
| Model NO.: | FOXSEW FX6040HP | FOXSEW FX3020HP |
| Sewing Area: | 600x400mm | 300x200mm |
| Stitch Type: | Single Needle, Lockstitch | Single Needle, Lockstitch |
| Maximum Speed: | 3000r.p.m | 3000r.p.m |
| Stitch Length: | 0.1mm-16mm | 0.1mm-16mm |
| Max. Stitches: | 10000 stitches/pattern | 10000 stitches/pattern |
| Max. Patterns: | 1000 patterns saved system | 1000 patterns saved system |
| Hook: | 6-times larger hook | 6-times larger hook |
| Maximum Thickness: | 20mm | 20mm |
| Needle Type: | DYx3 #26, #27 | DYx3 #26, #27 |
| Out Presser Foot Lift: | 30mm | 30mm |
| Inner Presser Foot Lift: | 28mm | 28mm |
| Lubrications: | Automatic | Automatic |
| Needle Cooler: | Yes | Yes |
| Machine Size: | 163x138x125cm | 120x120x125cm |
| Net Weight: | 290KGS | 235KGS |
| Packing Size: | 169x142x145cm | 130x130x145cm |
| G. Weight: | 360KGS | 295KGS |
