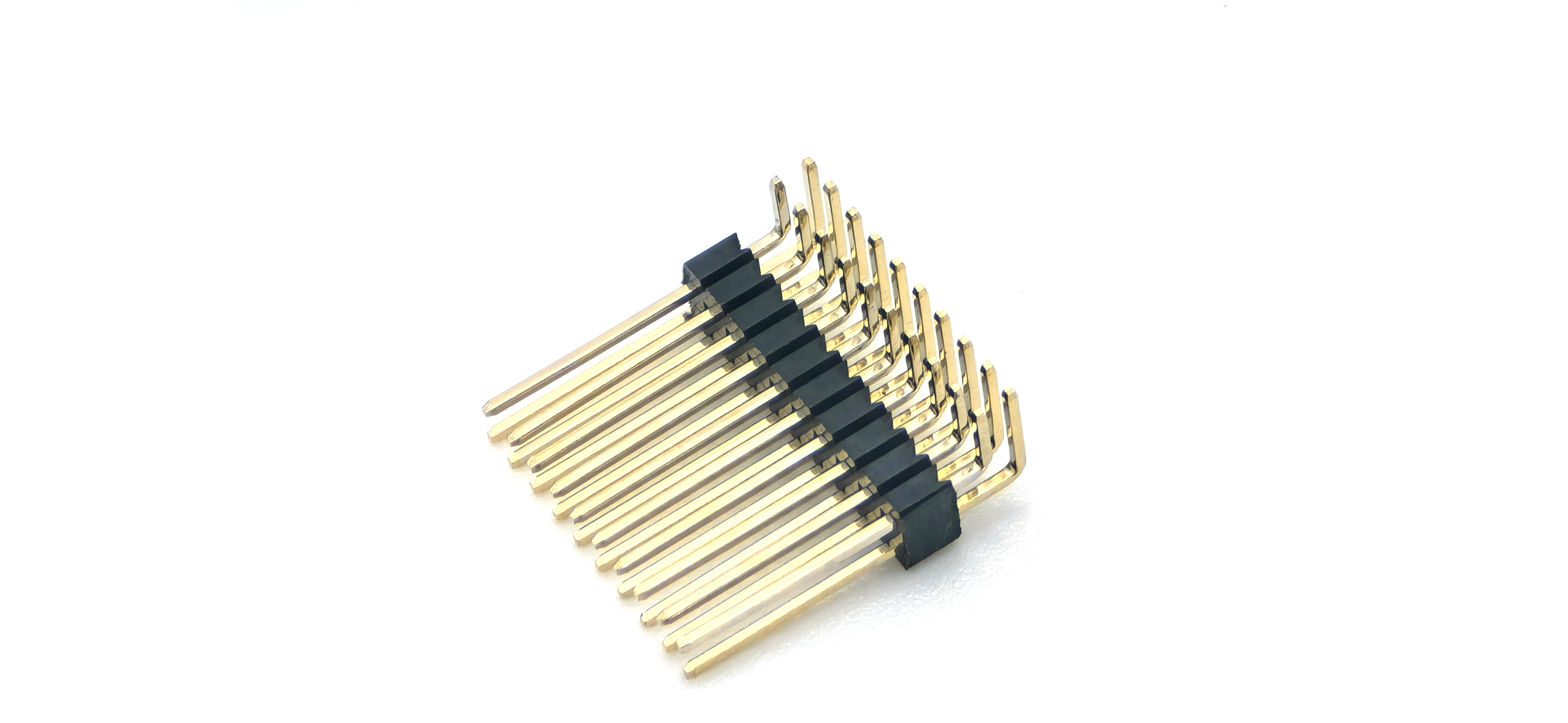

1.27mm Pin header Right Angle 20P

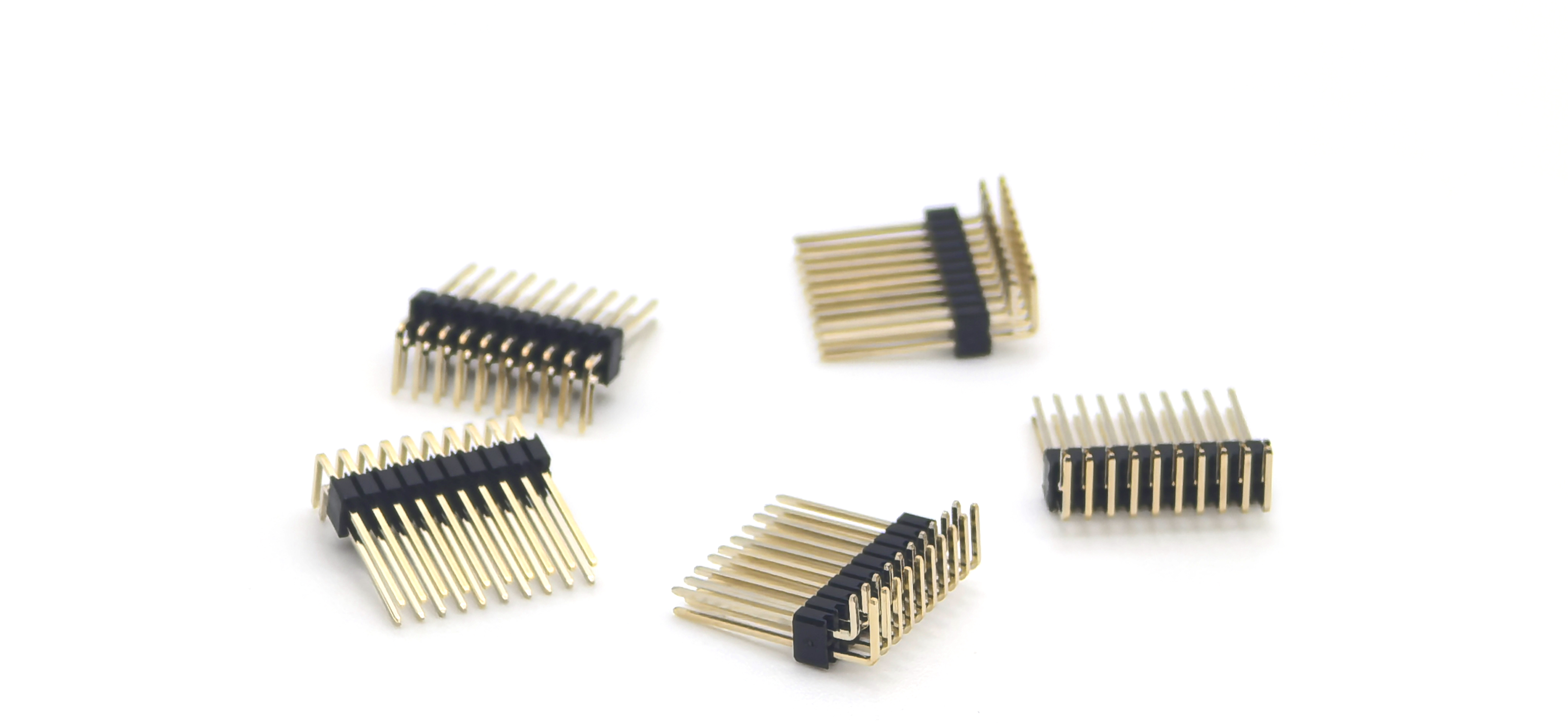

Engineered for reliable PCB interconnection,the YZTECH 1.27mm Pin header Right Angle 20P delivers exceptional performance in compact electronic assemblies.This DIN-type male 1.27mm pitch header 20p features a dual-row configuration with 20 pins arranged in a rectangular shape.The right-angle bending insertion design,with a low profile height of just 2.0mm,enables space-efficient placement on crowded circuit boards.The h2.0mm pin header 1.27mm could be found in the 1.27mm Pin Header of the catalog.

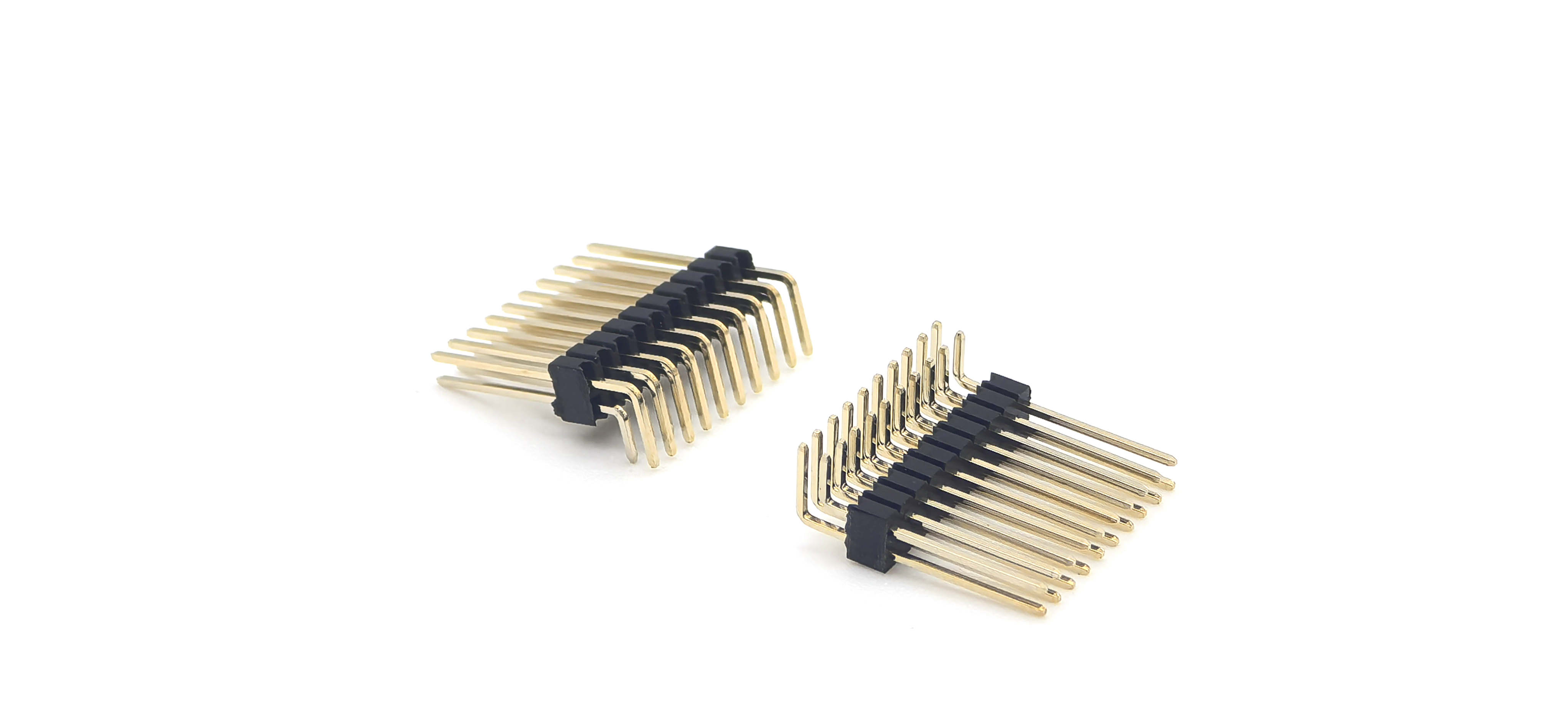

Constructed with a brass contact base and finished with a durable gold plating,this connector guarantees low contact resistance,excellent corrosion protection,and repeated mating cycles.The insulator housing is molded from high-temperature PA6T material,which provides outstanding mechanical strength and thermal stability.The black pin header 1.27mm pitch withstands peak soldering temperatures up to 260℃for 10 seconds,compliant with lead-free reflow processes.With a 1.27mm fine pitch and dual-row layout,it achieves high-density signal transmission while maintaining a compact footprint.Key parameters include:rated current 2A,rated voltage 300V,operating temperature -45℃ ~ +105℃,and rectangular body shape.The bending insertion installation method facilitates easy manual or automated assembly on PCBs.Its gold-plated brass contacts and PA6T insulator ensure reliable performance in harsh environments,from freezing cold to extreme heat.
Each unit is supplied in box packaging,ensuring safe handling and streamlined inventory management.Typical uses include industrial control panels,data communication modules,test equipment,and consumer electronics where space and signal integrity are critical. reliability.
