Spectifications
|
Wavelength (nm) |
360±1 |
|
|
Operating mode |
CW |
|
|
Model |
MSL-FN-360 |
MSL-R-360 |
|
Output power (mW) |
1-80 |
80-300 |
|
Power stability (rms, over 4 hours) |
<3%, <2%, <1% |
|
|
Spectral line width |
<1MHz |
<5MHz |
|
Transverse mode |
TEM00 |
|
|
M2 |
<1.5 |
<1.2 |
|
Beam diameter at the aperture (1/e2, mm) |
<1.0 |
<1.5 |
|
Beam divergence, full angle (mrad) |
<1.2 |
<1.0 |
|
Polarization Ratio |
>100:1,Vertical (Horizontal Optional) |
|
|
Warm-up time (minutes) |
<10 |
|
|
Cooled method |
Air cooled (Add hest sink) |
Water cooled (WCH-580 water chiller) |
|
Operating Temperature (°C) |
10-35 |
20-30 |
|
Power supply (90-264VAC) |
PSU-H-FDA |
PSU-W-FDA |
|
Warranty |
1 year |
|
|

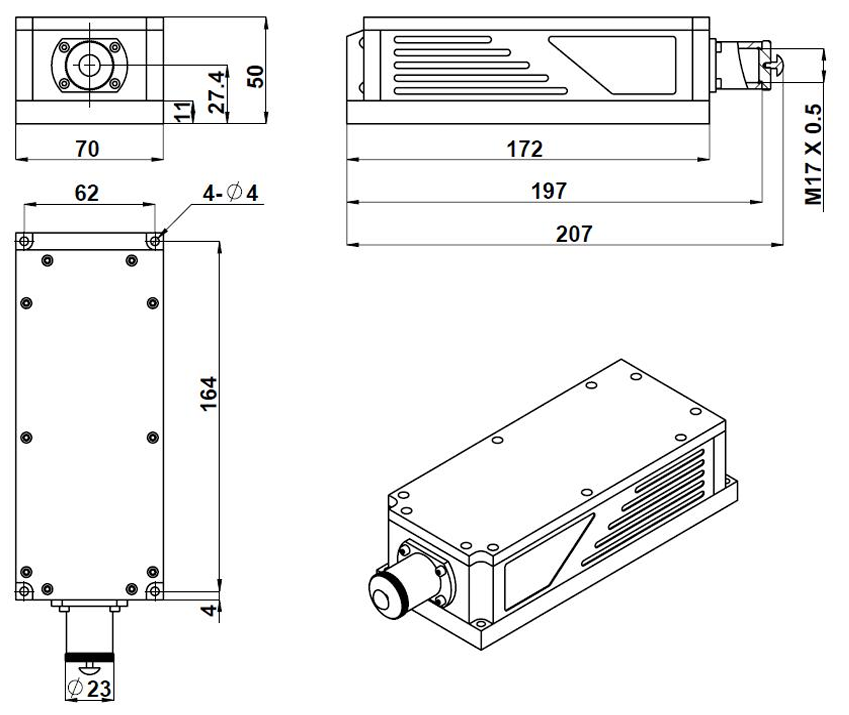

LASER HEAD
(MSL-FN-360 1-80mW)
|

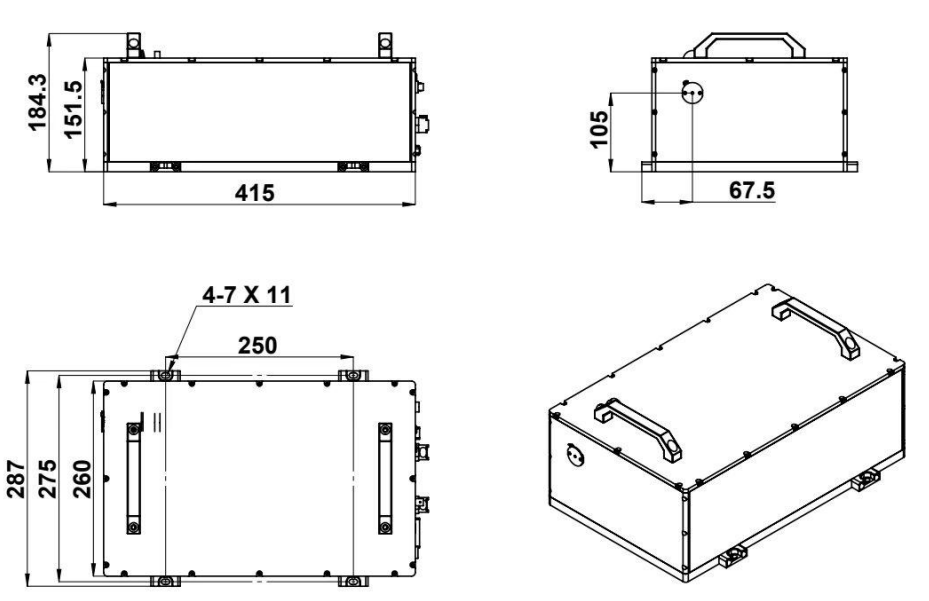

LASER HEAD
(MSL-R-360 80-300mW)
|
 |
 415(L)×287(W)×184.3(H)mm3
|
|
POWER SUPPLY
(PSU-H-FDA)
|

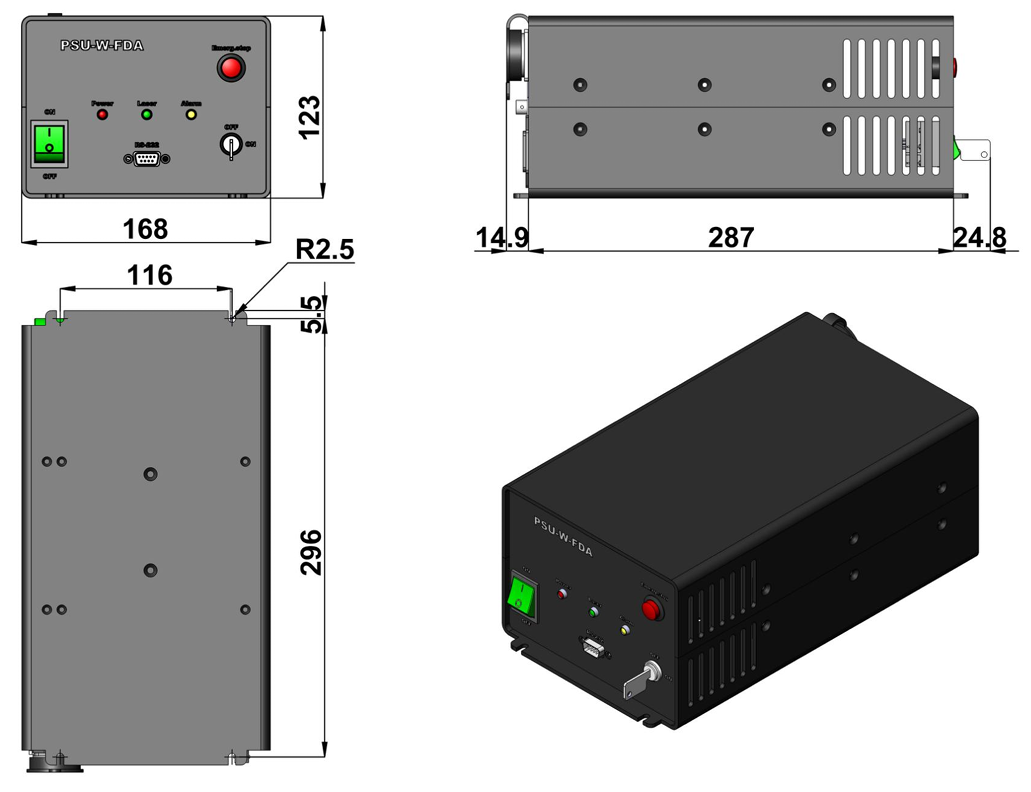

POWER SUPPLY
(PSU-W-FDA)
|
 276.6(L)×145(W)×103.6(H)mm3, 2.3kg
|
 |
| Water Chiller (WCH-580) | |
 369.8(L)×258.4(W)×240.6(H)mm3, 10.5kg
|
