I. Product Overview

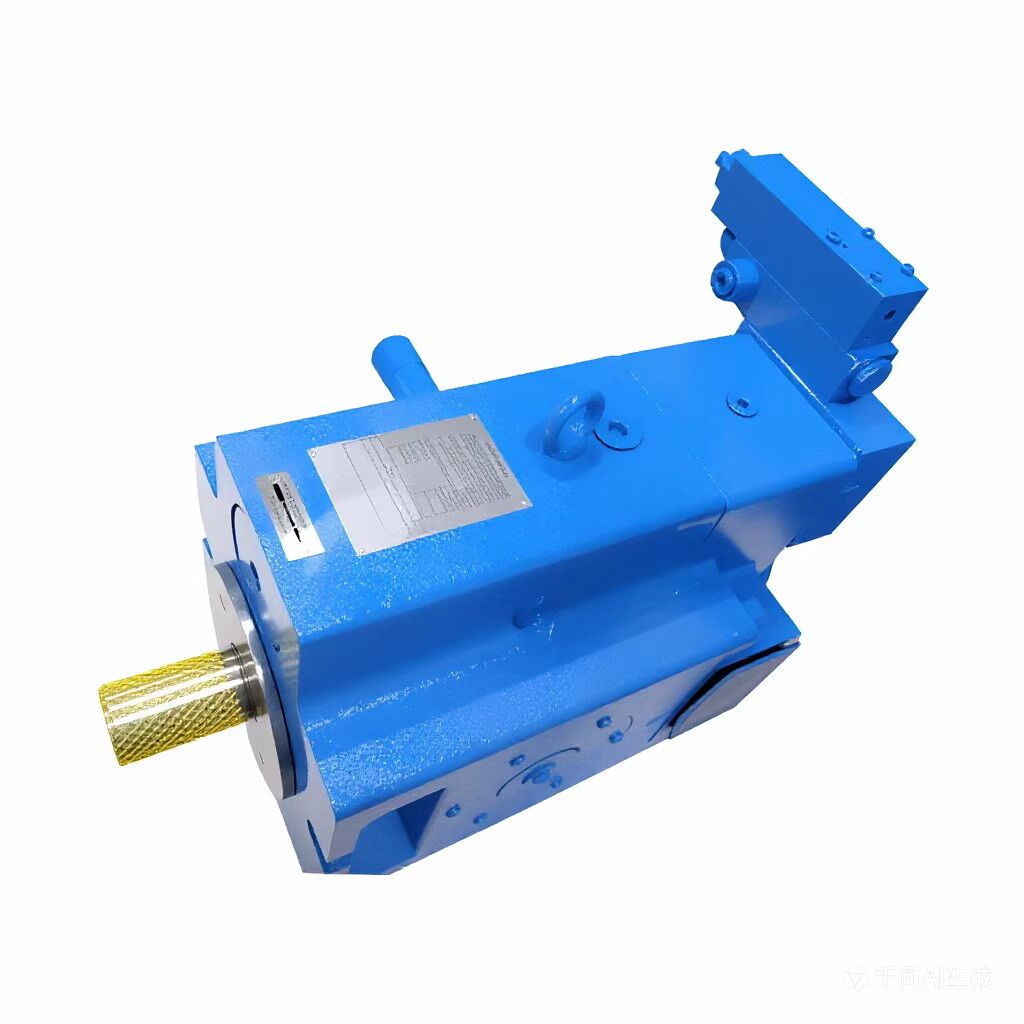

The PVXS180MRDF0000000 is a high-pressure axial piston pump from the VICKERS brand, belonging to the PVXS series. Designed specifically for high-pressure and large-flow applications, this series of pumps is widely used in industrial hydraulic systems, such as those in steel mills, construction machinery, and power equipment, providing stable and continuous power output to the systems.

II. Product Features

1. Swashplate Design: Utilizes a swashplate structure to achieve variable control of axial pistons, offering high reliability and long service life.

2. High-Pressure Performance: Rated operating pressure up to 350 bar, with some models supporting even higher pressures (e.g., 420 bar), meeting the demands of continuous heavy-duty operation.

3. Large Displacement Options: Displacement options include 66, 90, 130, 180, and 250 mL/rev, among others. The PVXS180MRDF0000000 has a displacement of 180 mL/rev.

4. Energy Efficiency: The axial piston structure enhances volumetric efficiency, significantly reducing energy losses and achieving energy savings.

5. Modular Design: Supports various control methods (e.g., pressure compensation control), allowing users to select and match options based on actual needs for easy integration with various hydraulic systems.

6. Strong Adaptability: Can be interchanged with models such as the Rexroth A4VSO180DR or Parker PV180*WMMC, expanding its range of applications.

III. Technical Specifications

• Model: PVXS180MRDF0000000

• Displacement: 180 mL/rev

• Rated Pressure: 350 bar

• Maximum Pressure: 420 bar (some models)

• Rated Speed: 1800 min⁻¹ or higher

• Control Method: Pressure compensation control (DF)

• Structural Form: Axial piston pump with swashplate design

• Mounting Type: Flange mounting or foot mounting (dual pumps typically only support foot mounting)

• Rotation Direction: Clockwise when viewed from the pump shaft end (R)

• Port Positions: On both sides

• Oil Temperature Range: -25℃ to 90℃

• Weight: Approximately 114 kg (specific weight may vary depending on configuration)

IV. Application Areas

The PVXS180MRDF0000000 hydraulic piston pump is widely used in the following fields:

1. Steel Mill Equipment: Hydraulic systems for blast furnaces, converters, continuous casting machines, etc.

2. Construction Machinery: Hydraulic systems for excavators, loaders, cranes, etc.

3. Power Equipment: Speed control systems for steam turbines, hydro turbines, etc.

4. Other Industrial Fields: Hydraulic systems for ships, machine tools, injection molding machines, etc.

V. Maintenance and Upkeep

1. Maintain Hydraulic Oil Cleanliness: Regularly check the cleanliness of the hydraulic oil and promptly replace contaminated oil to extend the pump's service life.

2. Monitor Pump Body Temperature: Avoid operating the pump at excessive temperatures to prevent damage to seals, bearings, and other components.

3. Regularly Replace Seals: Aging or damaged seals can cause leaks, affecting pump performance, so they should be replaced regularly.

4. Check Bearing Clearance: Excessive bearing clearance can affect the pump's internal clearances and the thickness of the hydrostatic support oil film, reducing bearing service life. Therefore, regularly check and replace bearings with excessive clearance.
