Professional Soft PVC & Silicone Dispensing Equipment
Introduction: The Soft PVC and Silicone Dispensing Machine is an automated production system designed for the high-precision manufacturing of various polymer products. By utilizing a multi-axis motion control system, the machine precisely dispenses liquid PVC or silicone materials into molds, followed by a thermal curing process to form the final product.
Key Technical Features:
Precision Dispensing: Equipped with high-speed dispensing valves and micro-injection systems to ensure accurate volume control and prevent leakage.
Multi-color Capability: Available in 12, 16, or 18 color configurations, allowing for the production of complex 3D patterns without color mixing.
Automated Control: Driven by industrial PLC or motion control cards, supporting CAD file imports for quick programming of intricate paths.
Stability & Durability: Features high-precision linear guides and a robust frame to ensure 24/7 stable operation in demanding industrial environments.
| Name | 12 Colors | 16 Colors |
| Model | JY-B02 | JY-B03 |
| Voltage | 220V/50Hz | 220V/50Hz |
| Number of valve | 12 | 16 |
| Wore area | 620*370mm | 720*370mm |
| Motor power | 3*0.4kw | 3*0.4kw |
| Heating Power | 0.6kw | 0.6kw |
| Power | 1.2kw | 1.2kw |
| Air pressure | 6~8/kgf/cm-2 | 6~8/kgf/cm-2 |
| Dispensing speed | 400/mm.s-1 | 400/mm.s-1 |
| X.Y.Z axis stroke | 470*360*90mm | 700*360*90mm |
| Size | 1330*1000*1720mm | 1300*1150*1550mm |
| Weight | 450kg | 500kg |
Advanced CNC/PLC Integration: The machine uses industrial-grade motion control cards that support G-code and CAD/DXF file imports. This allows operators to program complex 2D and 3D paths for logos and labels quickly.
Repeatability: Equipped with high-precision lead screws and linear guide rails (such as HIWIN or TBI), ensuring a repetitive positioning accuracy of $\pm 0.02mm$.

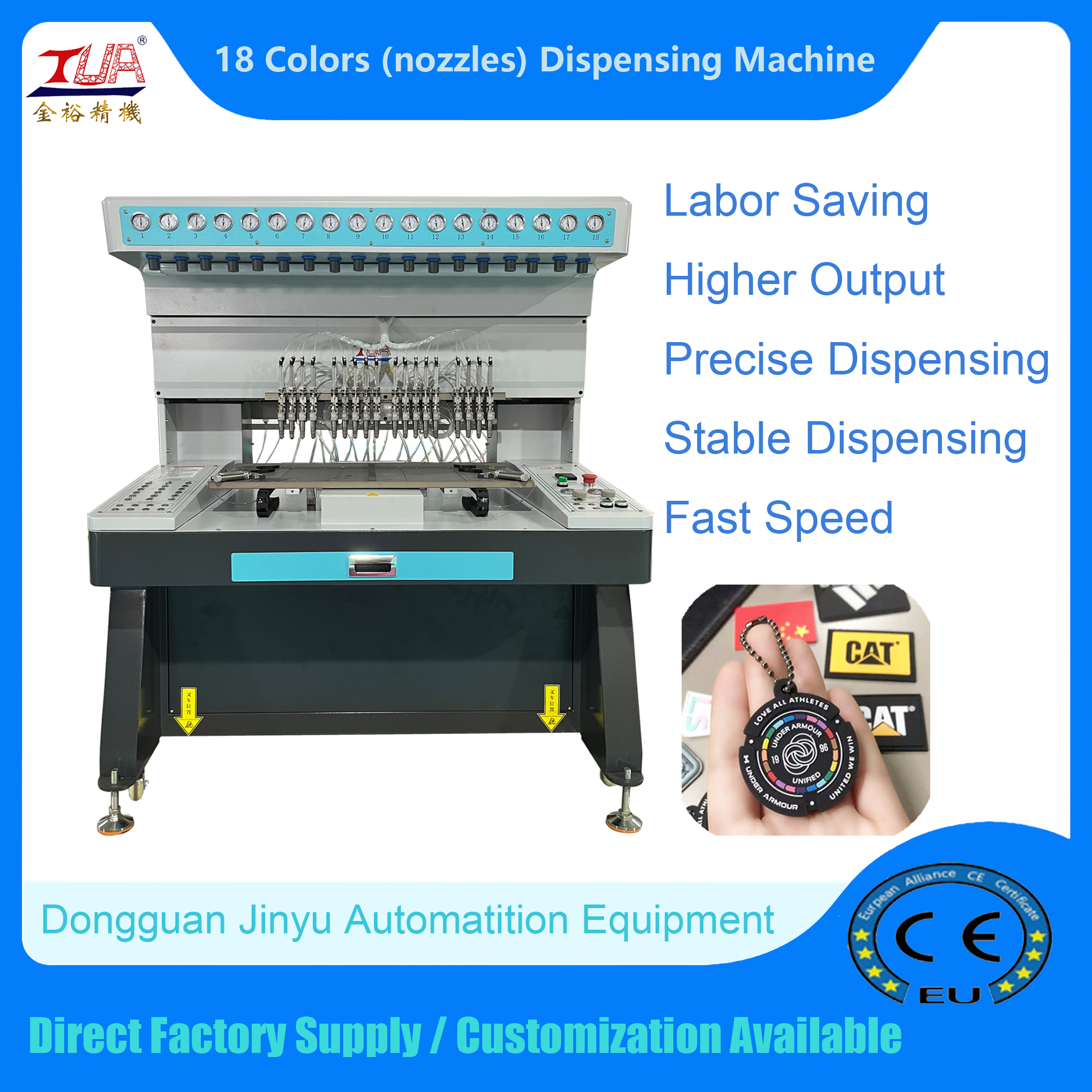

12 to 18 Color Capacity: The system can be configured with multiple needles, allowing for the simultaneous or sequential dispensing of up to 18 colors without manual material changes.
Simultaneous Production: Many models feature dual or quad-workstations, enabling the machine to work on multiple molds at once, significantly increasing hourly output.
Micro-Injection Precision: For high-end silicone products (like medical parts or electronic seals), the machine utilizes micro-injection valves that prevent "tailing" or "dripping," ensuring clean edges on every part.
Pressure Management: Independent air pressure regulators for each color tank ensure that materials of different viscosities flow at a consistent rate.
Heavy-Duty Frame: A cast-iron or thick steel plate base minimizes vibration during high-speed movement, which is critical for maintaining drop-point accuracy.
Self-Cleaning & Maintenance: Modern machines often include an automated nozzle cleaning station or "purge" function to prevent material from curing inside the needles during short breaks.
Memory & Storage: The ability to store thousands of unique production files, allowing for rapid changeovers between different customer orders (e.g., switching from a Disney keychain to a Nike shoe charm).
Real-time Monitoring: Integrated sensors can detect "low material" levels or air pressure drops, pausing the machine to prevent defective parts.
Wide Applications:
Apparel & Fashion: 3D silicone labels, PVC patches, and zipper pulls.
Promotional Gifts: Keychains, fridge magnets, luggage tags, and phone cases.
Footwear Accessories: High-detail shoe charms and brand logos.
Industrial Parts: Precision gaskets, O-rings, and micro-injection components.
Why Choose Our Machinery? We offer more than just machines; we provide an integrated production solution. From vacuum de-foaming to automatic vulcanizing and baking ovens, our equipment helps you reduce labor costs and maximize output in the global market.
Dongguan Jinyu Automation Machinery Equipment Co., Ltd. is an enterprise specializing in the R&D, manufacturing and sales of automation production equipment related to silicone and PVC. It also engages in the import and export of goods and technologies.
In terms of supporting service guarantees, the company not only provides customized equipment solutions but also offers pre-sales demand communication, in-sales production progress tracking and quality control, as well as sample making, technical guidance and other training for customers. For after-sales services, it provides 24/7 technical support, equipment installation, commissioning, operator training and lifelong maintenance.
