Key Technical Specifications
When evaluating or configuring an industrial PVC automatic dripping/dispensing machine, these core parameters define the system's performance:
Color Capacity: Standard configurations typically offer 8, 12, 16, or 18 colors, allowing multi-needle systems to dispense different liquid PVC pastes simultaneously without cross-contamination.

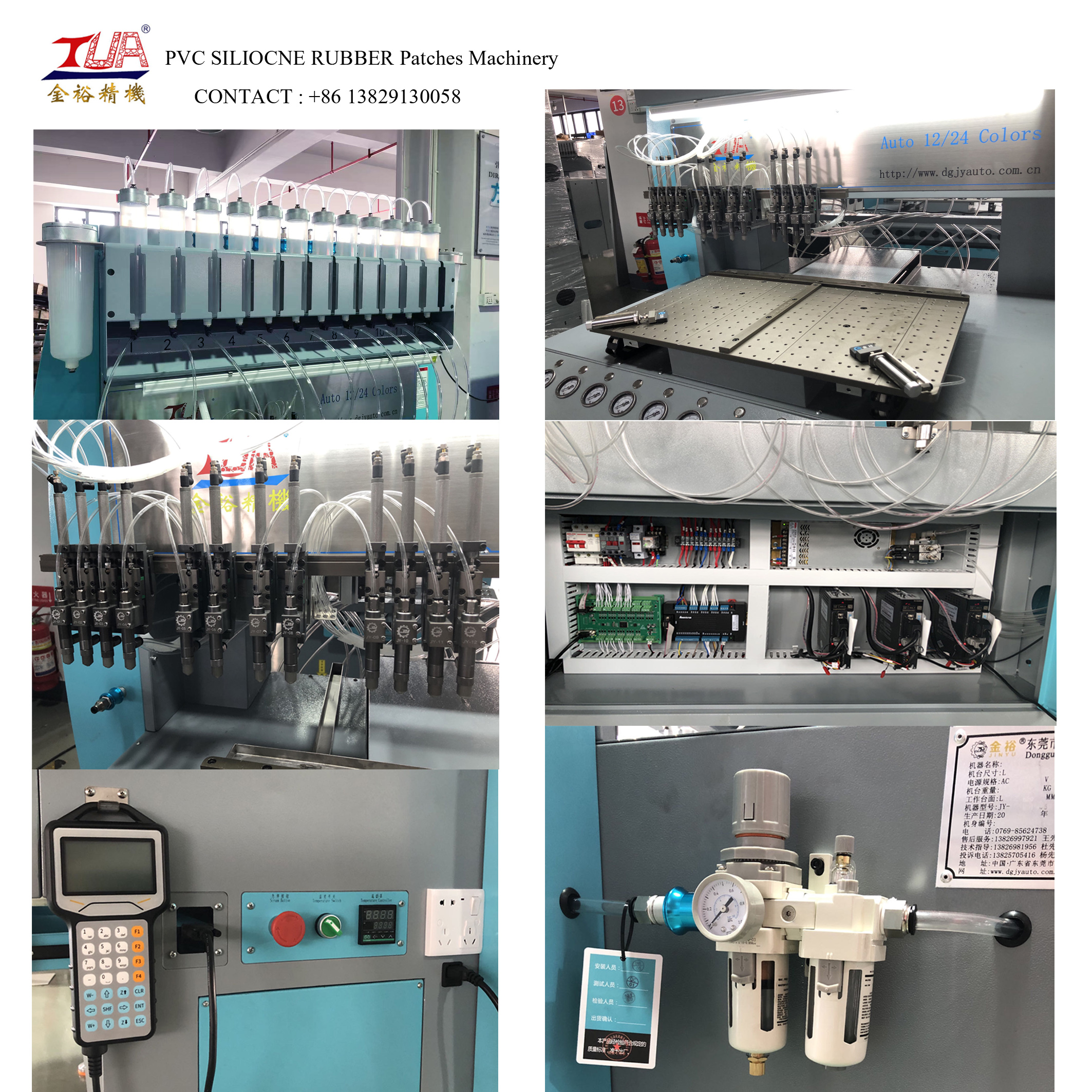

Control & Motion System: Driven by high-precision stepper motors or AC servo systems combined with XYZ linear guide rails. Programming is managed via a dedicated handheld teach pendant or specialized CAD/CAM conversion software.
Dispensing Valves: Equipped with specialized high-speed micro-injection valves designed to handle high-viscosity liquid PVC (plastisol) without dripping or tailing.
Working Area: Standard working tables range 620x370mm, often supporting double-table configurations so the operator can unload cured molds or swap frames while the opposite side is dispensing.
Core Advantages in Production
Precision vs. Manual Labor: A standard 12-color machine can replace 4 to 8 manual workers, significantly reducing material waste by maintaining a consistent injection volume down to the milligram level.
Simultaneous Multi-Nozzle Operation: The multi-needle manifold allows multiple identical pieces on a multi-cavity aluminum mold to be filled at the exact same time, maximizing throughput.
High Viscosity Handling: Liquid PVC plastisol requires stable pneumatic pressure and precision needle design to prevent air bubbles and ensure sharp line definition on complex 3D micro-injection logos.
Seamless Integration: These systems easily drop into a complete semi-automated production line, positioned directly upstream from the baking/curing tunnels or multi-layer cooling tables.

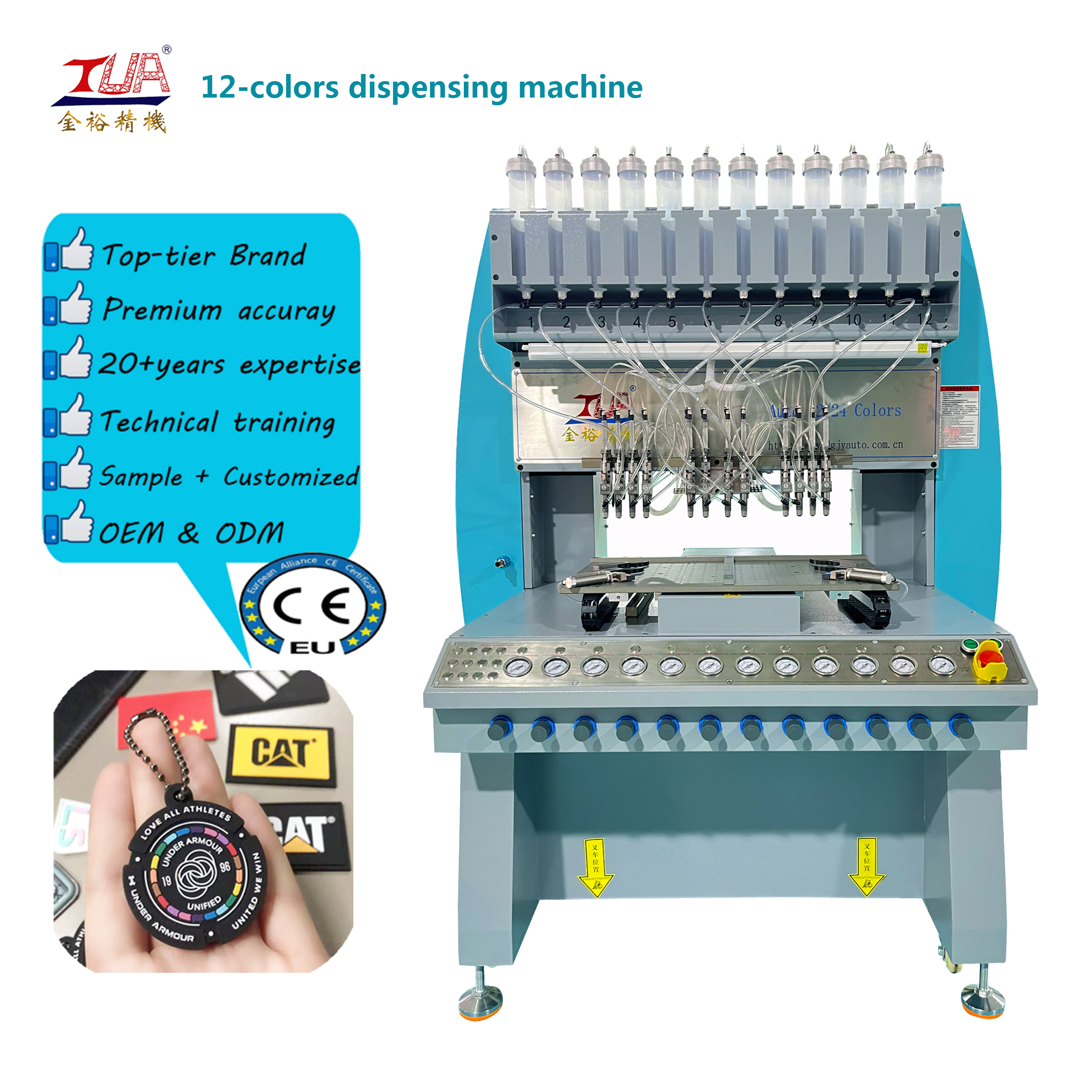

The parameters of Jinyu Machinery's Dispensing Machine:
| Name | 12 Colors | 16 Colors | 18 Colors |
| Model | JY-B02 | JY-B03 | JY-B05 |
| Voltage | 220V/50Hz | 220V/50Hz | 220V/50Hz |
| Number of valve | 12 | 16 | 18 |
| Wore area | 620*370mm | 720*370mm | 820*370mm |
| Motor power | 3*0.4kw | 3*0.4kw | 3*0.4kw |
| Heating Power | 0.6kw | 0.6kw | 0.6kw |
| Power | 1.2kw | 1.2kw | 1.2kw |
| Air pressure | 6~8/kgf/cm-2 | 6~8/kgf/cm-2 | 6~8/kgf/cm-2 |
| Dispensing speed | 400/mm.s-1 | 400/mm.s-1 | 400/mm.s-1 |
| X.Y.Z axis stroke | 470*360*90mm | 700*360*90mm | 800*360*90mm |
| Size | 1330*1000*1720mm | 1300*1150*1550mm | 1300*1150*1550mm |
| Weight | 450kg | 500kg | 550kg |
Typical Applications
Garment & Footwear & bag Labels,Liquid PVC PlastisolThin lines, perfect adhesion to fabric backing, fine text
Keychains & 3D Souvenirs, Multi-color PVC, Double-sided alignment, 3D three-dimensional effect, thick layering, vibrant color boundariesLuggage
Tags & Zipper PullersDurable PVCHigh-volume consistency, embedded metal/fabric attachments
Non-slip Mats & CoastersStandard PVCLarge area dispensing, precise edge sealing
