1. Product Overview

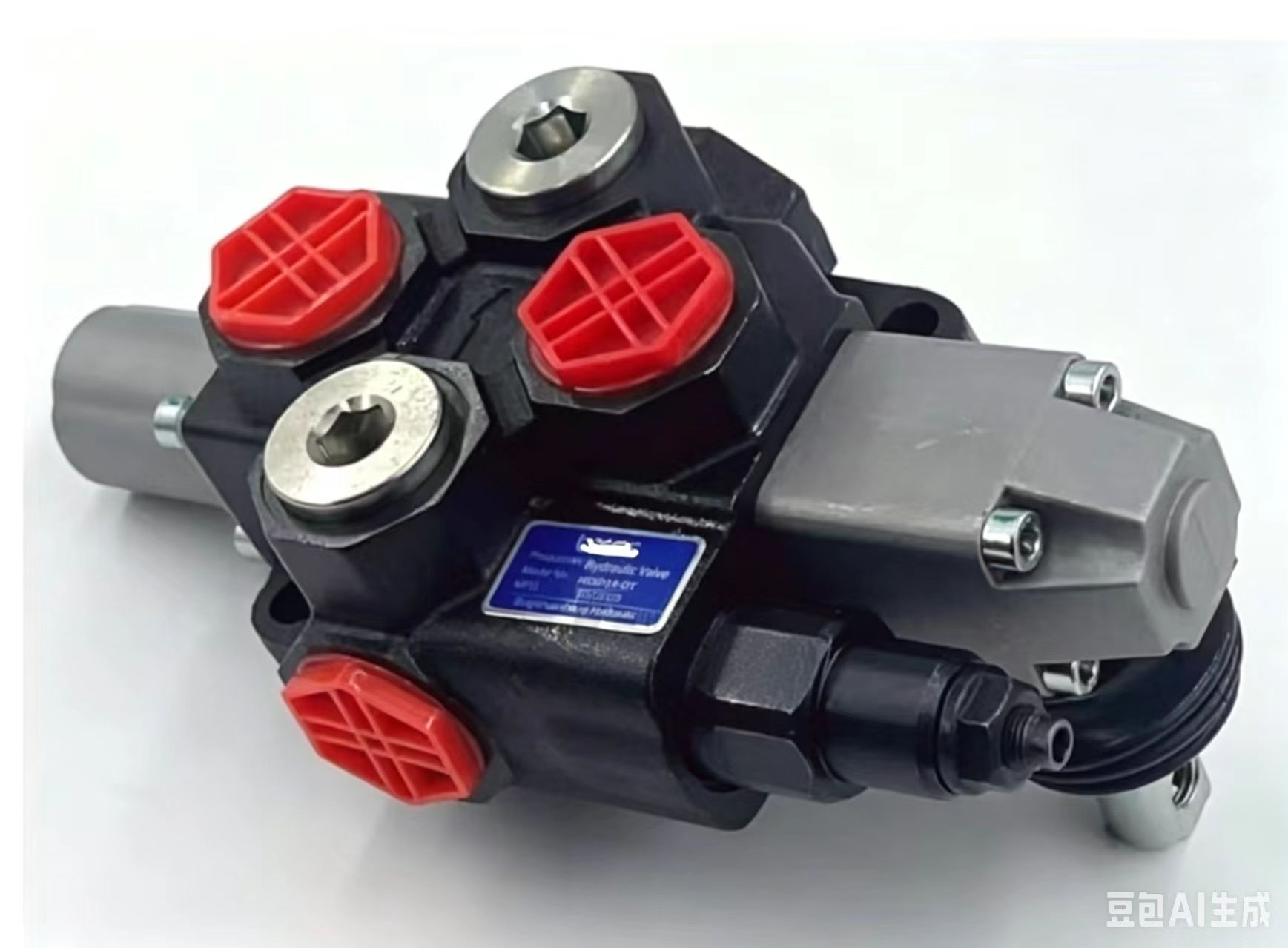

TheSD14 Manual 1-Way Monoblock Directional Control Valveis a manually operated, single-path integral directional valve designed to control the flow direction and on/off switching of fluids (e.g., hydraulic oil, compressed air) in hydraulic or pneumatic systems. Its "1-way" configuration typically refers to1 working port (Port A)and1 return port (Port T), making it suitable for simple unidirectional control applications such as locking, blocking, or directional switching.
------
2. Key Functions
• Manual Control: Direct operation via a handle, knob, or lever to shift the valve spool for fluid flow control.
• Unidirectional Flow Control: Allows fluid to pass in a specified direction (e.g., P→A) while blocking reverse flow (or enabling free reverse flow via an integrated check valve).
• Monoblock Design: A single-piece cast valve body integrates all functional components, reducing leakage points and enhancing reliability.
------
3. Structural Features
• Valve Body Material: High-strength cast iron or aluminum alloy (lightweight design for mobile equipment).
• Spool Type:
• Spool Valve: Uses sliding spool motion to redirect fluid paths, offering excellent sealing for high-pressure systems.
• Poppet Valve: Utilizes conical seating for fast response and strong contamination resistance.
• Operation Method:
• Handle Operation: 360° rotation or linear push-pull with positioning locks.
• Spring Return: Automatically returns the spool to neutral when the handle is released (requires additional locking for sustained positioning).
• Port Configuration:
• Standard Connections: G1/4, G3/8, or SAE threads compatible with common hydraulic lines.
• Integrated Check Valve (Optional): Enables free reverse flow (e.g., A→T) when equipped.
------
4. Technical Specifications (Example)
【表格】
Parameter Description
Model SD14-XX (XX denotes operation method or additional features, e.g., SD14-H for handle operation)
Nominal Diameter DN6–DN10 (flow range: 5–30 L/min)
Rated Pressure 210 bar (max. 350 bar, depending on model)
Operating Temperature -20°C to +80°C (hydraulic oil); -40°C to +120°C (special seals)
Flow Characteristics Linear flow control (handle angle proportional to flow rate)
Leakage ≤0.1 cc/min (ISO 5598 standard)
Protection Class IP65 (dust/water-resistant for outdoor use)
------
5. Typical Applications
• Construction Machinery:
• Hydraulic cylinder locking in excavators/loaders (preventing unintended lowering).
• Outrigger support control in cranes.
• Industrial Equipment:
• Safety interlock circuits in presses/stamping machines.
• Clamping/releasing control in hydraulic fixtures.
• Agricultural Machinery:
• Unidirectional lifting control for tractor hitches.
• One-way fluid supply cutoff in spraying systems.
• Automation Systems:
• Simple directional switching in pneumatic/hydraulic actuators (e.g., cylinder extension/retraction).
------
6. Installation & Maintenance
• Installation Requirements:
• Mount horizontally or vertically (per model specifications) and avoid vibration.
• Clean the system before connecting pipes to prevent spool jamming from contaminants.
• Maintenance Schedule:
• Inspect seals every 500 hours; replace aged components.
• Regularly clean valve body surfaces to prevent corrosion.
• Troubleshooting:
• Heavy Handle Operation: Check for spool jamming or insufficient lubrication.
• Leakage: Replace O-rings or valve seat seals.
• No Action: Verify system pressure and handle connection integrity.
------
7. Selection Considerations
• Confirm system pressure and flow are within the valve’s rated limits.
• Choose seal materials compatible with the medium (hydraulic oil/water-based fluid/compressed air).
• For free reverse flow, prioritize models with integrated check valves (e.g., SD14-U).
