YESWITCH Electronics
Seat Safety Switch is a power switch designed for various mechanical seats. Our single-pole

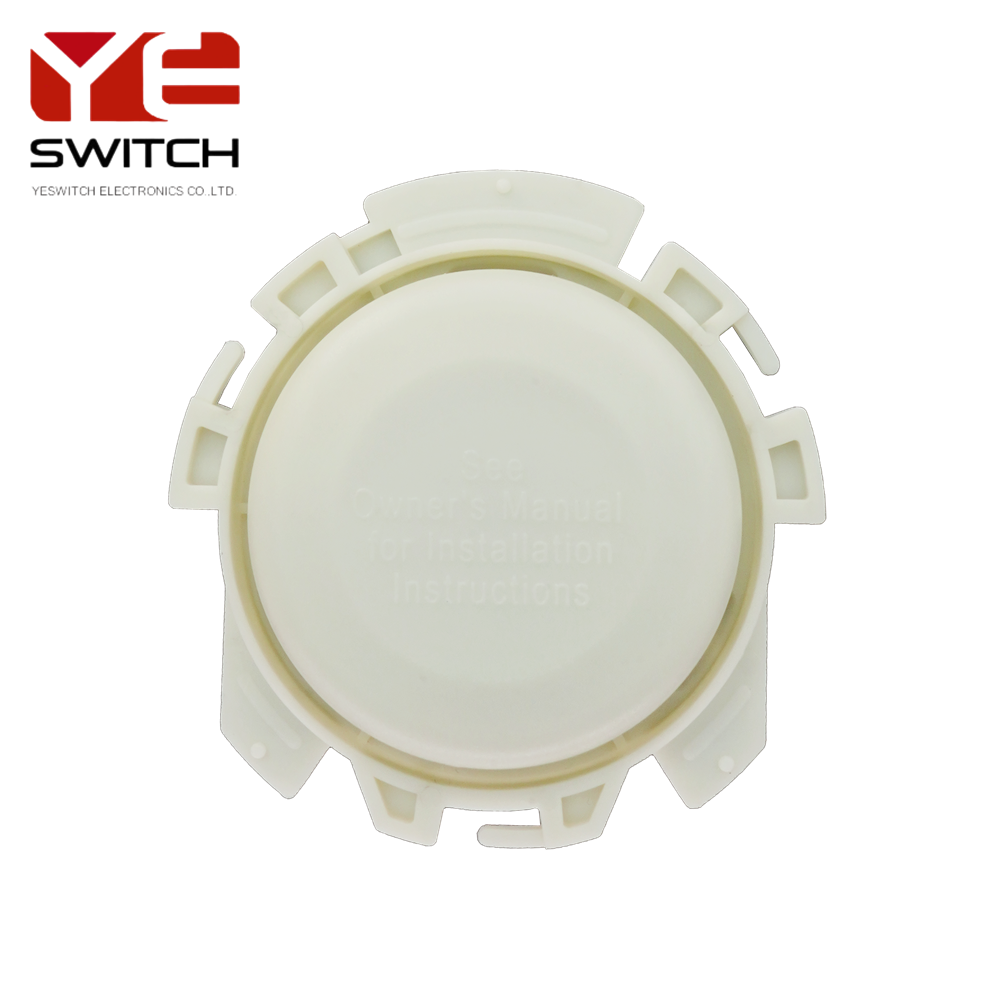

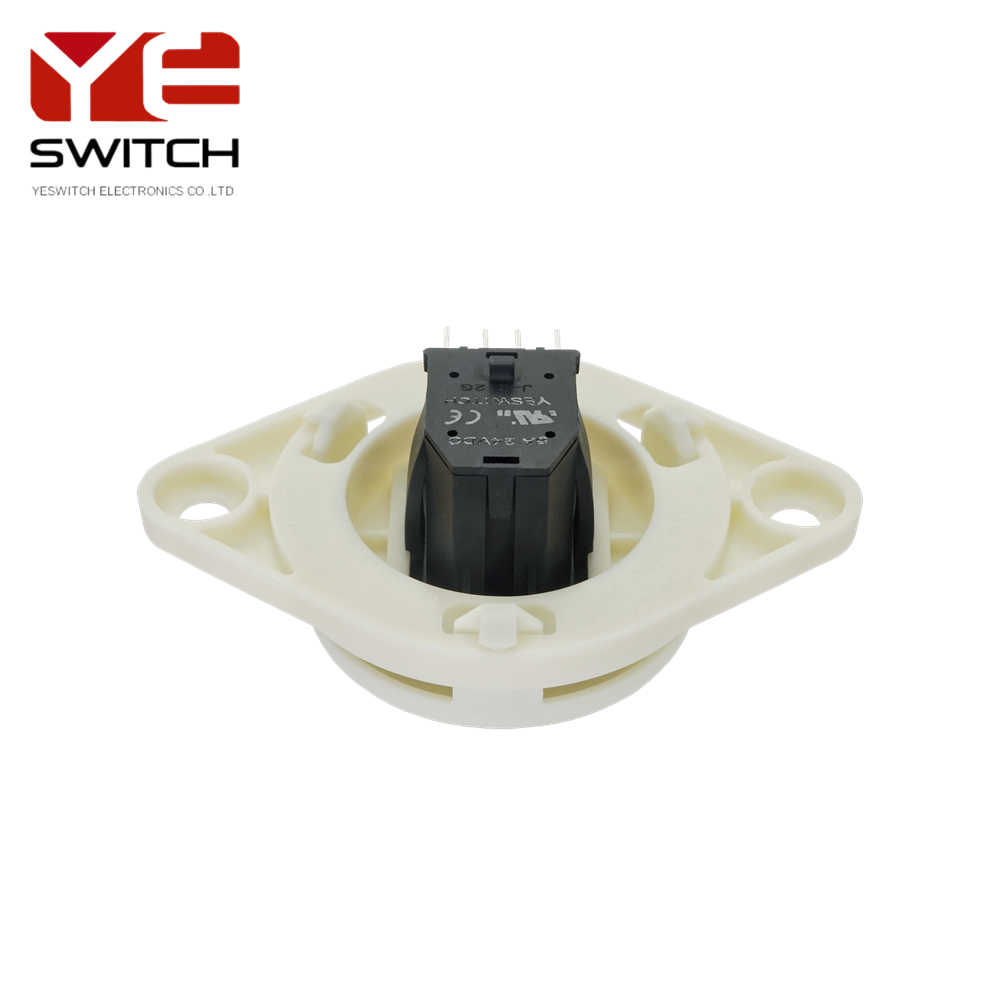

seat safety switch has two functions: NC and NO. The dual-pole seat safety switch has three functions: 2NO, 2NC and 1NC-1NO. Each switch is equipped with a button cap, which comes in two types: rhombic and irregular shape, to meet different installation requirements. The color choice also comes in variety but the most common colors are white, black and grey.
YESWITCH Electronics
Seat Safety Switch features a robust enclosed buckle release mechanism with this protective cover to prevent accidental opening by children. It is rated for 75,000+ mechanical cycles, even 10000 cycles dielectrcal life. The
seat safety switch is built to withstand harsh environments. It can still work well under the operating temperature of -40°C to +85°C. (Just as the
HT802 Series Toggle Switches do) In addition to the riding lawn mower, YESWITCH Electronics
Seat Safety Switch can be applied to child car seat buckles, garden machines and golf cart as well.
Specification- Waterproof Seat Safety Switch
The YESWITCH

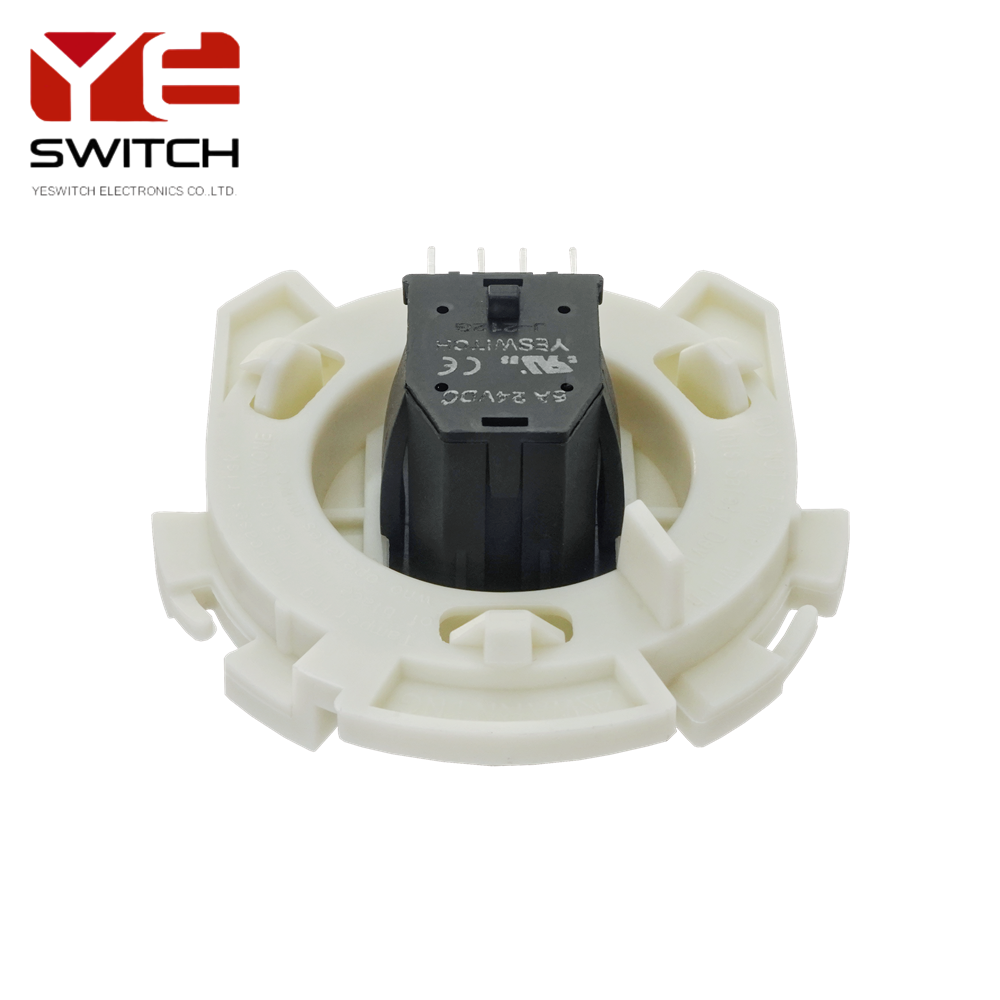

Safety Seat Switch operates as a momentary (ON)-OFF switch, requiring a precise actuation force of 1600gf (±300gf) and a travel distance of 9.5mm (±1.0mm) for consistent performance.
Built for longevity, the switch is rated for 75,000 mechanical cycles and 10,000 dielectric cycles. Its electrical rating is 5A at 24V DC, with a low contact resistance of ≤50mΩ and high insulation resistance of ≥100mΩ. Designed to withstand harsh environments, it operates reliably across a wide temperature range of -40°C to 85°C and 45% to 85% relative humidity.
The construction features a UL 94V-2 rated Polypropylene (PP) housing and plunger in black, ensuring flame-retardant safety. The terminals are made of gold-plated brass, providing excellent conductivity and corrosion resistance. This combination of precise actuation, robust electrical specs, and durable materials makes it an ideal solution for critical safety mechanisms in child seats and industrial equipment.
1. Waterproof and Dustproof. Unlike
waterproof toggle switches, the single safety seat switch is not designed to be waterproof or dustproof. The working environment of riding lawn mowers is filled with mud, grass clippings, dust, and dew. If these substances enter the internal structure of the safety seat switch, they can cause the switch to short circuit and malfunction, get rusty and have poor contact, get stuck and fail to start without shutting off the engine. The button cap covers the top lever piston and contact gap of the switch to prevent water and mud from entering, ensuring the cleanliness and sensitivity of the switch.
2. Safety Operation Guarantee. This nylon cap cover has the same function as the lock toggle switch, preventing others from accidentally touching it. Only when the operator sits on the seat can the machine be started. In addition, the cap cover can also prevent long grass and grass pieces from entering the gap of the switch, preventing debris from getting stuck in the top rod and causing the switch to remain closed all the time, making the safety switch ineffective.
3. Wider Contact Area. Ordinary push-button switches are usually operated by hand and have a small contact area. However, the operating environment of the seat safety switch requires a larger contact area. The bare switch plunger is very small and won't be pressed down if it is tilted. With a cap cover added, the switch can be firmly pressed down without any situation where the person is sitting but the switch cannot be detected or the ignition cannot be turned on.
4. Lifespan Extension. Regarding the YESWITCH Electronics
Seat Safety Switch, there is another hidden feature. The switch button cap can extend the lifespan of the switch. When the lawn mower is running, the operator sits on it and directly presses the cap cover instead of directly pressing the thin piston of the switch. This serves as a soft cushioning effect, preventing the switch lever from being bent or damaged due to long-term heavy pressure, and protecting the switch core.
Application:
- Ride-on Mowers & Garden Machinery: Serves as the essential operator-present switch. The engine or blade drive system is engaged only when the operator is correctly seated and the switch is depressed, ensuring immediate power cutoff upon standing up, thereby preventing runaway mowers or blade injuries.
- Power Tools & Industrial Equipment: Provides a reliable emergency stop or interlock function in stationary and handheld equipment, enhancing operator safety by ensuring tools only operate under controlled conditions.
- Automotive & Transportation: Primarily used in child safety seat buckles, where its precise actuation force and durable mechanism reliably detect correct latching. It is also suitable for seat occupancy sensors in passenger vehicles, golf carts, and utility vehicles for ignition or operational interlocks.
FAQ:
- Do I need to buy anything extra to install this Garden Machine Friendly Seat Switch? No, all the accessories are ready for you.
- If the seat safety switch is dead, is it difficult for me to change a new one? Absolutely not difficult. All you need to do is to take apart the seat base, directly take the switch down, then put a new one on the seat.
- Where can I find more details about this seat safety switch? For more details, please visit https://www.yeswitches.com/
