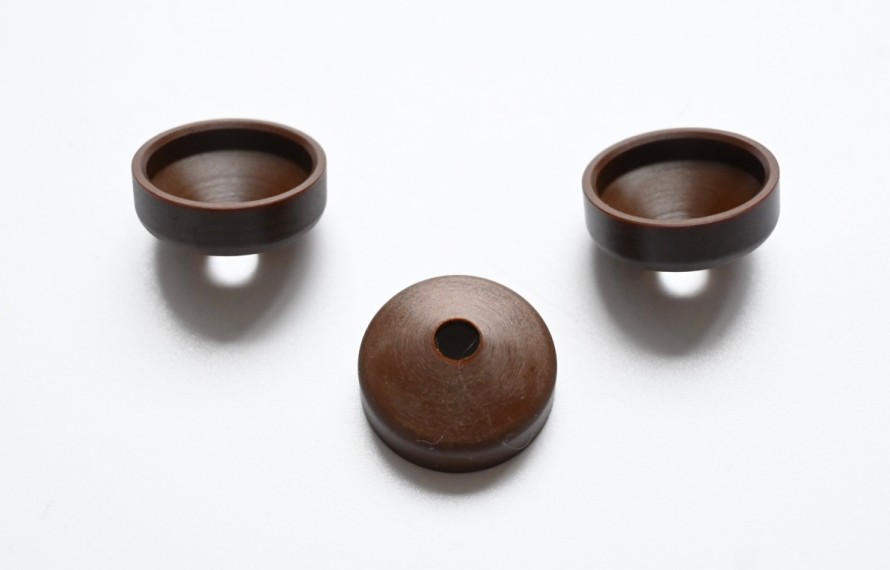

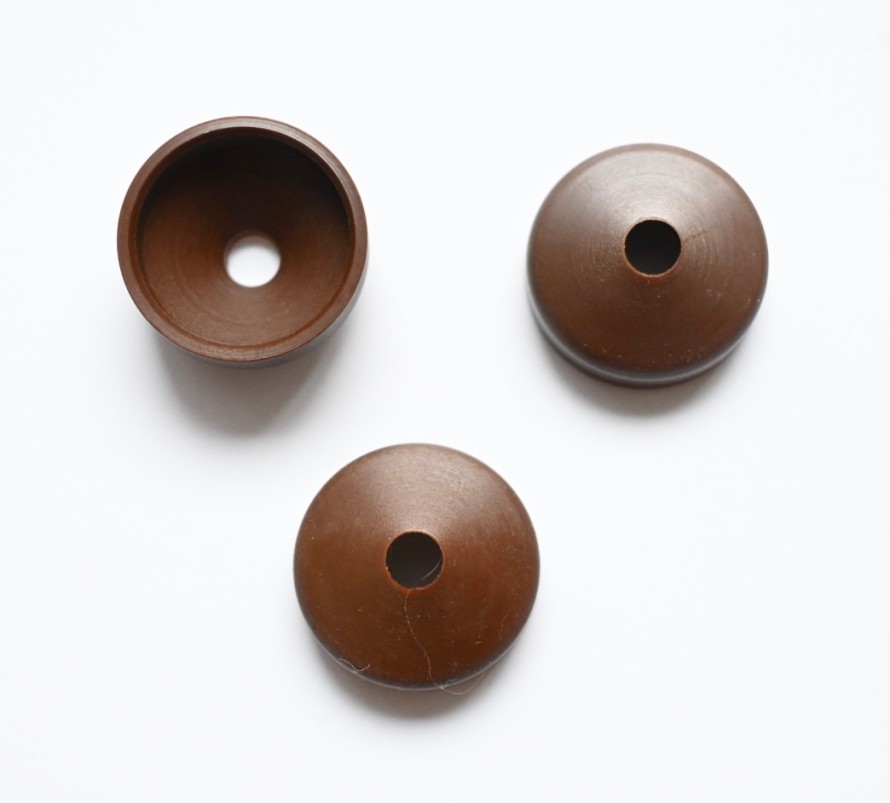

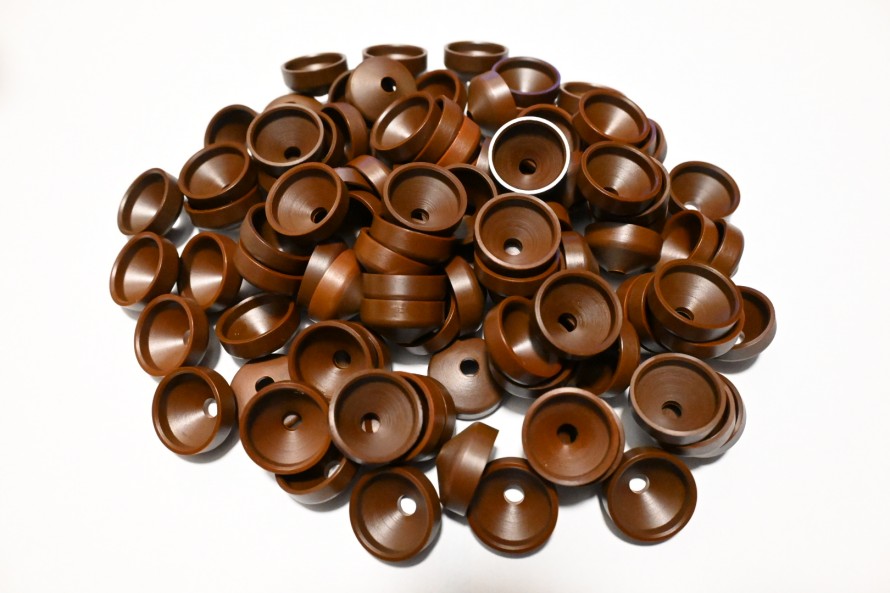

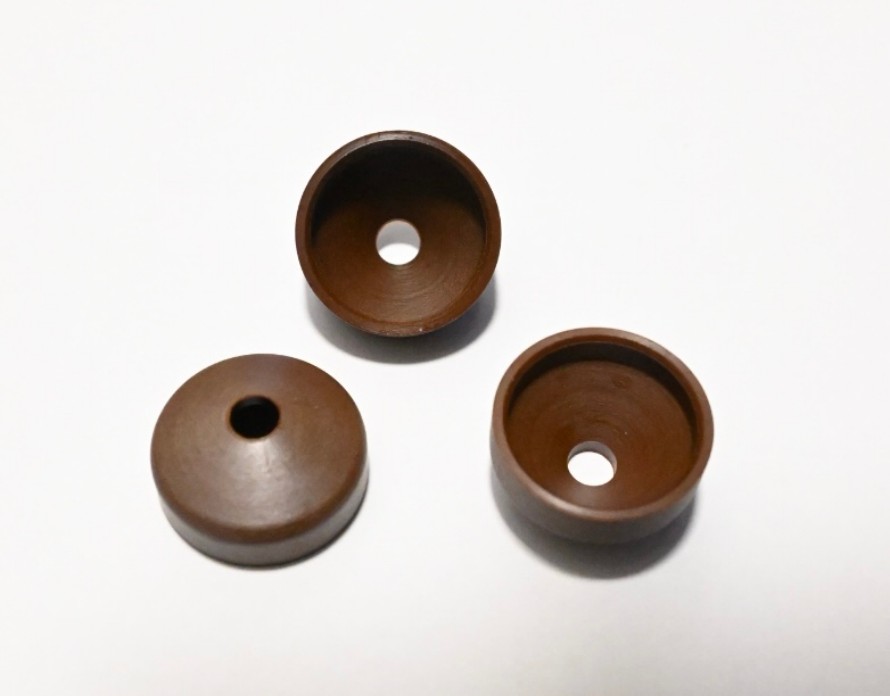

Polyimide (PI) nozzles, often made from materials such as Vespel® SP-1, serve as high-performance, heat-resistant components, particularly as insulators in hot runner injection molding systems. They prevent premature cooling of molten plastics, simplify color changes, and offer high strength for specialized industrial applications.
Key aspects of polyimide nozzles include:
Applications: Primarily used as nozzle tip insulators in injection molding (e.g., PET preforms) and in specialized high-temperature, wear-resistant scenarios.
Performance Characteristics: Polyimide provides superior thermal stability (up to continuous,intermittent), high mechanical strength, and low friction.
Aerospace Applications: Specialized polyimide composites are used in aircraft exhaust nozzle structures.
Nozzle Types: While some "poly-nozzles" are mentioned in 3D printing contexts (e.g., PolyPrinter), they are usually for extrusion rather than high-temp PI plastic nozzles
For specialized additive manufacturing, polyimide-containing materials can be used. High-temperature, wear-resistant applications, such as in mining or gas systems, often utilize custom-machined polyimide or polyurethane nozzles
Polyimide (PI) Injection Molding Nozzles for Semiconductor Packaging: A Solution for High Performance and High Yield
In semiconductor packaging and LED chip manufacturing processes, high-temperature plastic pick-up tools—commonly referred to as nozzles—are critical consumables in semiconductor and LED packaging equipment, such as die bonders. They utilize vacuum suction to precisely pick up, transport, and place tiny, precision electronic components. While traditional tungsten carbide nozzles are durable, their high hardness can easily leave indentations on the chip surface, leading to component damage or degraded performance.
I. Advantages and Applications of Polyimide (PI) Materials in Injection-Molded Nozzles for High-Temperature Semiconductor Packaging
During the semiconductor packaging process, pick-and-place tools must operate continuously in high-temperature stages such as reflow soldering and die bonding. Polyimide (PI), with its high glass transition temperature (up to 300°C or higher) and broad long-term operating temperature range, effectively prevents pick-up errors caused by thermal deformation, ensuring excellent dimensional stability even in high-temperature environments.
Additionally, PI possesses mechanical properties that fall between those of metals and conventional plastics, providing sufficient structural strength while effectively protecting chips through moderate flexibility. Practical testing has shown that the indentation rate on ultra-thin chips is significantly lower with PI tips compared to metal ones, thereby helping to improve packaging yield. Furthermore, the surface resistivity of PI materials can be flexibly adjusted by adding conductive fillers, preventing chip contamination caused by electrostatic attraction of particles.
II. During the PI injection molding process, multiple techniques are employed to address challenges such as high temperatures, high viscosity, and the tendency to generate internal stress.
Since injection molding of PI requires temperatures exceeding 340°C, molds are typically made of titanium alloy and equipped with high-temperature hot runner systems; optimizing runner taper and polishing can significantly improve filling efficiency. To address the issues of high melt viscosity and difficulty in filling fine structures, injection molding machines equipped with high aspect ratio screws are used to enhance plasticization, and a staged injection process is employed—first filling at low speed to prevent spattering, followed by high-pressure holding to eliminate sink marks. Furthermore, due to the significant difference in thermal expansion coefficients between PI and mold steel, internal stresses and deformation are likely to occur during cooling. Therefore, multi-stage temperature control must be implemented in the mold for stepwise cooling, and an annealing process should be added after injection molding to release the majority of internal stresses, ensuring dimensional stability of the finished product.
III. Injection-Molded PI Nozzles Deliver Superior Performance and Efficient Production
Precision-polished, high-hardness molds produce a naturally smooth surface with extremely low roughness, significantly reducing particle adhesion and friction during chip contact. The one-piece injection-molding process eliminates the need for secondary operations such as cutting and grinding, thereby completely preventing the generation of machining debris and burrs. Additionally, the injection molding process allows for the flexible realization of specialized tip geometries to accommodate diverse application requirements, such as those for chips and LED wafers. Compared to machined metal tips, the production cycle for injection-molded PI tips is reduced by 50%, making them ideal for high-volume, efficient manufacturing.
