Batch quality drift is the top sourcing risk for Indian e-rickshaw assemblers. Chamax ships bulk e-rickshaw wiring harness India programmes can scale with, at 100% electrical testing per unit and stable pricing across order cycles. Flexible MOQ from 100 pieces supports both pilot runs and full production.
Our India programme support covers:
- Stable unit pricing across repeat orders, with volume tiers documented before you commit
- MOQ from 100 pieces for new model evaluation, scaling to 50,000 pieces per month
- 100% electrical testing on every unit, keeping incoming defect rates at PPM level
- Samples in 5 to 7 days, mass production in 15 to 25 days
- Connector equivalents of TE, Molex and JST verified with datasheets before quoting
Precision Specifications for Indian Programmes
Parameter: Conductor
Specification: Tinned copper, Class 5/6 fine stranding, 12AWG to 22AWG
India adaptation: Sized for the 48V and 60V platforms that dominate Indian e-rickshaw production, with tinned copper resisting monsoon-season humidity corrosion
Parameter: Electrical Rating
Specification: 40A continuous on 12AWG reference builds; 80A peak tolerance
India adaptation: Covers controller-to-motor current paths on standard Indian e-rickshaw drivetrains, including overloaded-route duty cycles
Parameter: Environmental Range
Specification: -40C to +125C operating temperature; IP67 sealing options
India adaptation: Heat-chamber verified builds handle North Indian summer peaks, and sealed variants cover monsoon water exposure
Parameter: Connectors
Specification: 2+6 pin controller configurations, TE/Molex/JST equivalents, XT60 battery links
India adaptation: Drop-in equivalents of the connectors Indian assemblers already source, so production lines need no retooling during supplier transition
Parameter: Testing and Compliance
Specification: 100% continuity and hipot testing; bending and heat-chamber verification per batch
India adaptation: Per-batch test data supports your BIS conformity documentation and incoming QC sampling decisions, reducing inspection labour at your factory
Engineering details behind these numbers:
- Batch consistency: the core problem in price-driven harness sourcing is drift between lots. We run color line-sequence detectors at the assembly station and log electrical test data per batch, so lot-to-lot variation is measured and controlled rather than assumed.
- Crimp quality: terminals are crimped on automated presses with pull-force verification per batch. A 12AWG crimp on our reference builds holds above 50N pull force, which matters on vehicles running rough road surfaces daily.
- Monsoon resilience: IP67 sealed builds use gel-filled or overmolded connector seals rather than tape wrapping, verified by immersion testing before the method reaches production. The same sealing methodology underpins our waterproof cable assemblies line for monsoon-exposed routes.
- Controller compatibility: our 2+6 pin controller harnesses match the signal and power layouts common across Indian e-rickshaw controller brands, with pinout verified against your controller datasheet before quoting.
- EMI options: braided shielding is available for throttle and signal lines running alongside motor phase cables, reducing erratic throttle behaviour reported on unshielded builds.
The same conductor builds also serve charging and battery interconnect runs through our new energy cable assemblies line, so one source covers the full wiring set of an e-rickshaw model. For higher wire-count vehicle harnesses across your model range, our automotive wire harness team handles the complete main-loom scope under the same quality system.
Application Scenarios for Indian Buyers
✅ E-rickshaw OEMs and assemblers
Pain point: batch quality drift between shipments forces full incoming inspection and still produces field failures.

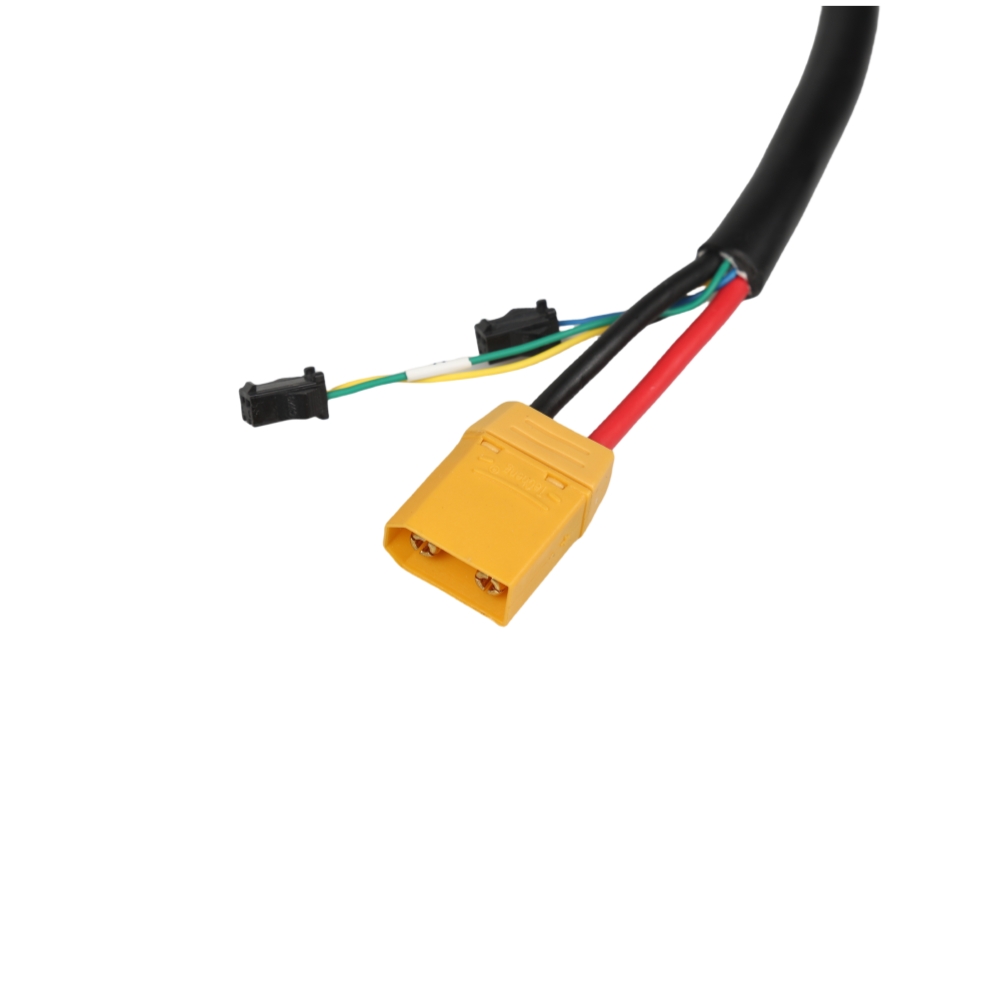

Our answer: our 48V 60V e-rickshaw controller wire harness 12AWG builds carry 100% electrical testing per unit, letting your incoming QC move from full inspection to sampling within the first few lots.
✅ E-rickshaw spare parts distributors
Pain point: aftermarket harness failure rates directly damage distributor reputation with repair shops.
Our answer: PPM-level defect rates and standardized per-batch documentation keep return rates low, and volume tiers from 100 pieces support multi-model spare catalogues without heavy inventory.
✅ Two-wheeler EV startups
Pain point: small initial volumes get rejected or overpriced by large harness factories.
Our answer: as an electric two-wheeler wiring harness supplier with 100-piece MOQ, we quote pilot runs at documented pricing, scaling to 50,000 pieces per month as your production ramps.
✅ Battery pack manufacturers
Pain point: harness and battery cable sourcing from separate vendors creates integration mismatches.
Our answer: our new energy cable assemblies division covers battery interconnect and charging cables alongside vehicle harnesses, quoted as one wiring set with matched connector pinouts.
✅ Export-oriented assemblers
Pain point: harness quality must satisfy both domestic and export-market acceptance criteria.
Our answer: IPC/WHMA-A-620 Class 2 workmanship with per-batch test documentation supports export acceptance files, and our PCB assemblies division covers control boards when your export models include integrated electronics.
Testing and Quality Control Process
Quality claims are easy; here is what happens to every unit before it ships:
Step 1: Incoming inspection. Conductors, connectors and insulation materials are verified against datasheets at arrival. Connector lots are sampled for mating force and dimensional checks before entering production.
Step 2: In-process control. Laser wire strippers replace mechanical stripping on fine-gauge lines to eliminate nicked conductors. Color line-sequence detectors catch miswiring at the assembly station, not at final test.
Step 3: 100% electrical test. Every single unit passes continuity and hipot testing, no sampling, no batch-level assumption. Test data is logged per batch for traceability.
Step 4: Environmental verification. Reference builds from each programme go through cable bending cycles and heat-chamber exposure from -40C to +125C. Two-dimension measuring instruments verify connector geometry against your drawing tolerances. Sealed builds additionally pass immersion testing.
This process is why our Indian customers move their incoming QC from full inspection to sampling after the first few shipments. The economics matter: every hour your QC team stops inspecting every unit is an hour returned to assembly output.
On pricing: we publish volume tiers before you commit, and unit prices remain stable across order cycles for agreed specifications. Price stability across batches is part of the product for bulk programmes, not a negotiation outcome.
Customer Case: From 5,200 PPM to 90 PPM at Scale
An e-rickshaw assembler in Delhi NCR produces roughly 3,500 vehicles per month across three models. Their harness incoming defect rate was high enough to require 100% incoming inspection, and field failures on controller harnesses generated weekly repair-shop complaints.
Before and after switching to Chamax:
- Incoming defect rate: 5,200 PPM down to 90 PPM
- Incoming inspection labour: 4 full-time staff down to 1 sampling-based role
- Field failure rate on controller harnesses: 2.1% down to 0.15% over 12 months
- Quarterly supplier audit score: 74 up to 92
- Annual warranty handling cost: USD 48,000 down to USD 6,500
What changed, in order:
- Controller harness pinouts were re-verified against their controller datasheets, eliminating a recurring miswire inherited from the previous vendor's tooling.
- 12AWG power conductors replaced undersized 14AWG on motor phase paths after load measurement.
- Our 100% electrical testing allowed their incoming QC to move from full inspection to sampling, freeing three staff for assembly.
- Transition ran on parallel supply for six weeks: both vendors shipped simultaneously until three consecutive lots passed their audit threshold. No assembly line stoppage occurred.
Why Choose Us
- 30+ years of OEM/ODM manufacturing depth, certified to ISO 9001:2015 and ISO 14001:2015, with ISO 13485 discipline carried over from our medical cable programmes. Production capacity of 30,000 to 50,000 pieces per month supports Indian volume programmes without queue delays.
- An in-house verification lab rather than outsourced testing: laser wire strippers, color line-sequence detectors, cable bending testers, two-dimension measuring instruments and heat chambers. We show Indian buyers the equipment behind each specification, on video or in person at our Dongguan facility.
Customisation Services
- OEM/ODM engineering starts from your drawing, or from a photo of an existing sample. Connector equivalents are confirmed with datasheets before quoting, and programmes spanning harnesses and matching new energy cable assemblies are quoted as one wiring set. Design revisions during sampling cost nothing extra as long as tooling is unchanged.
- Flexible volume from 100-piece pilot runs to 50,000 pieces per month, with volume tiers documented before you commit. Programmes that include control boards can add turnkey support from our PCB assemblies team without a second supplier.
After-Sales Service
- Every shipment carries a document pack with CoC, test reports and material declarations. If any unit fails within warranty, we arrange replacement shipment after joint failure analysis, typically resolved within 15 working days. Failed units are analysed with root-cause reports, not just swapped.
- A dedicated account engineer follows each Indian programme from sample to mass production, with 24-hour response on technical questions. Time-zone overlap between India and our support team means enquiries are answered within your working day.
Packaging, Shipping and Trade Terms
- Standard packing: each harness in a PE bag with a traceability label, then export cartons. Custom packaging and labeling available for spare-parts programmes.
- Shipping: samples via DHL, FedEx or UPS door-to-door; mass production by sea freight to Nhava Sheva, Chennai or Delhi air cargo for urgent batches.
- Trade terms: FOB HK standard, EXW and CIF on request. Payment typically 30% deposit by T/T, balance before shipment, in USD.
- Lead time: samples 5 to 7 days, mass production 15 to 25 days, expedited options for seasonal demand peaks.
How to Order
① Send drawing or sample photo → ② Quotation with connector datasheets within 24 hours → ③ Confirm engineering drawing → ④ Sample in 5 to 7 days → ⑤ Confirm sample and order contract → ⑥ Mass production in 15 to 25 days, FOB HK
For first-time buyers, we suggest starting with a 100-piece evaluation batch rather than a full order. It is the lowest-risk way to verify crimp quality, pinout accuracy and batch consistency before committing volume.
FAQ
Q: What is the MOQ and how does bulk pricing work?
A: MOQ is 100 pieces for new model evaluation, scaling to 50,000 pieces per month for running programmes. Volume tiers are documented in your quotation before you commit, and unit prices remain stable across order cycles for agreed specifications, which is how bulk programmes stay predictable.
Q: Can you match our existing controller connectors and pinouts?
A: Yes. Send the controller part numbers or a physical sample. Our engineers verify pinout, wire sequence and mating force against your controller datasheet, then propose the exact build or a cost-equivalent alternative. Our 48V 60V e-rickshaw controller wire harness 12AWG builds cover the standard Indian controller layouts.
Q: How long does the first order take, and what are the payment terms?
A: Drawing review and quotation within 24 hours, samples in 5 to 7 days, mass production in 15 to 25 days depending on volume. Payment typically runs 30% deposit by T/T in USD with balance before shipment, adjustable for established accounts.
Get Started
- Request a 100-piece evaluation batch — send your drawing or a photo, samples ship in 5 to 7 days.
- Get a quotation in 24 hours — email your spec sheet and receive pricing with documented volume tiers.
- Book a live factory video audit — walk through our testing lab and production lines with your engineering team before you commit.
