In the PVC micro-injection and dispensing industry (used for producing 3D labels, keychains, shoe charms, and patches), a Vacuum Planetary Power Mixer is the essential equipment. Instead of dry powder, this process requires mixing PVC paste resin, plasticizers (DOP/DOTP), stabilizers, and color pastes into a smooth, homogeneous, and bubble-free liquid paste, commercially known as PVC Plastisol.
This type of standalone mixer, which is adjustable in speed, suitable for different containers (stainless steel/plastic buckets), and can handle sizes ranging from 5L to 50L, has a very standard and mature model in industry—the pneumatic or electro-hydraulic lifting high-speed disperser. (Pvc Dispensing Machine,Silicone Dispensing Machine,Automatic Dispensing Machine,Plastic Dispensing Machine,Phone Cover Dispensing Machine,Phone Case Dispensing Machine)
| Equipment Name | PVC Mixer Machine | PVC Mixer Machine |
| Model | JY-E02-B-1.5-V1 | JY-E02-B-5.5-V1 |
| Number of Agitator Blades | 1 | 1 |
| Power Supply Specifications | Single Phase 220V | Three-phase four-wire, 380V |
| Total Power/KW | 1.5 | 5.5 |
| Dimensions/mm³ | 800X700X1450 | 900X1000X2200 |
| Weight/kg | 70KG | 220KG |
| Agitator Blade Specifications/mm | 100 | 180 |
| Maximum Agitation Capacity/L | 80 | 300 |
| Motor Power/KW | 1.5 | 5.5 |

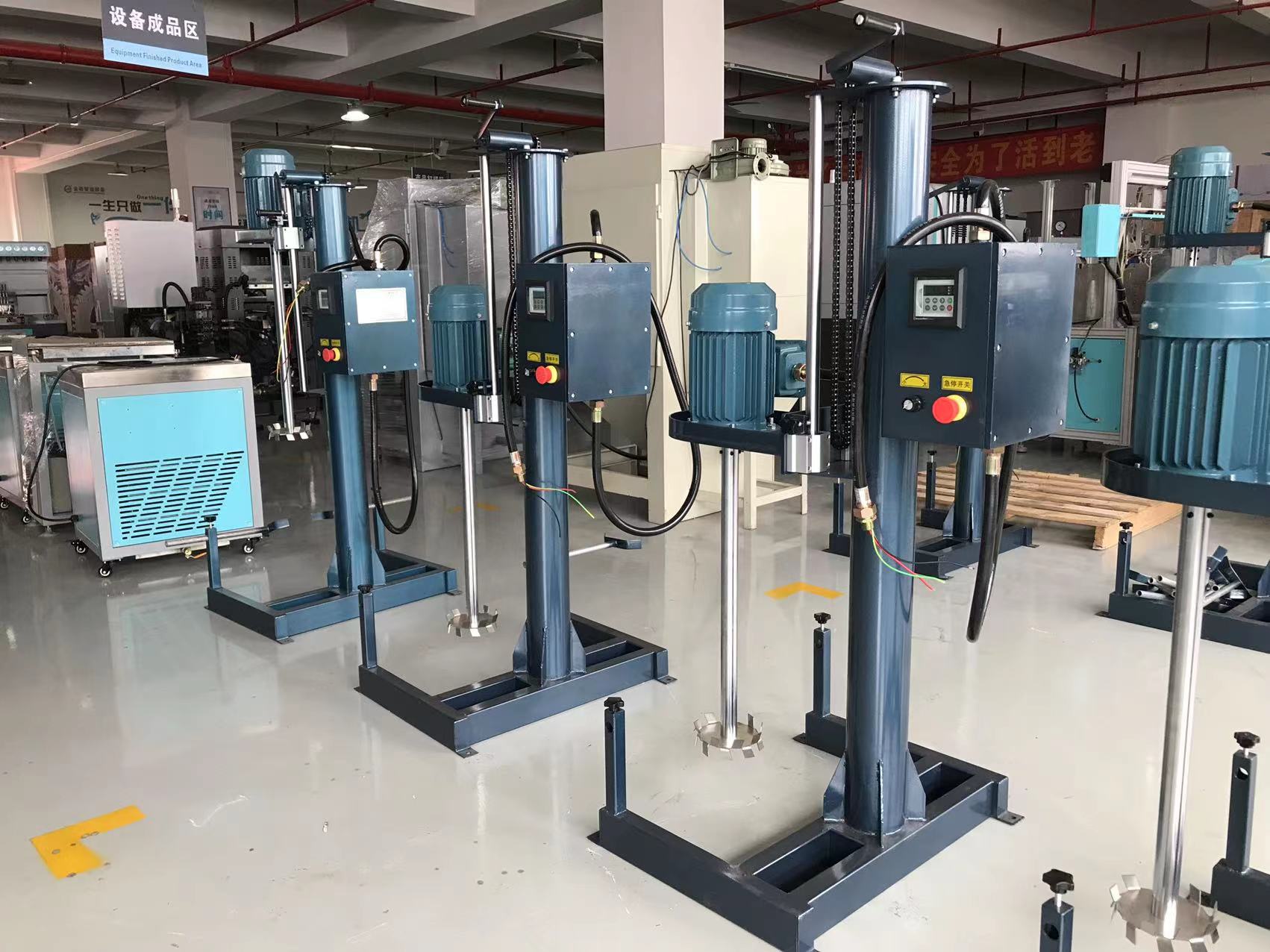

It doesn't fix the mixing tank in place; instead, it features a lifting structure similar to a large electric drill. The bucket is placed underneath, the mixing head is pressed down to mix; after mixing, the mixing head is raised, and the bucket is simply pushed away. This design perfectly meets all your requirements. (PVC Mixing Machine, High Capacity Mixer,PVC Mixer Machine,Dongguan Mixer Machine)

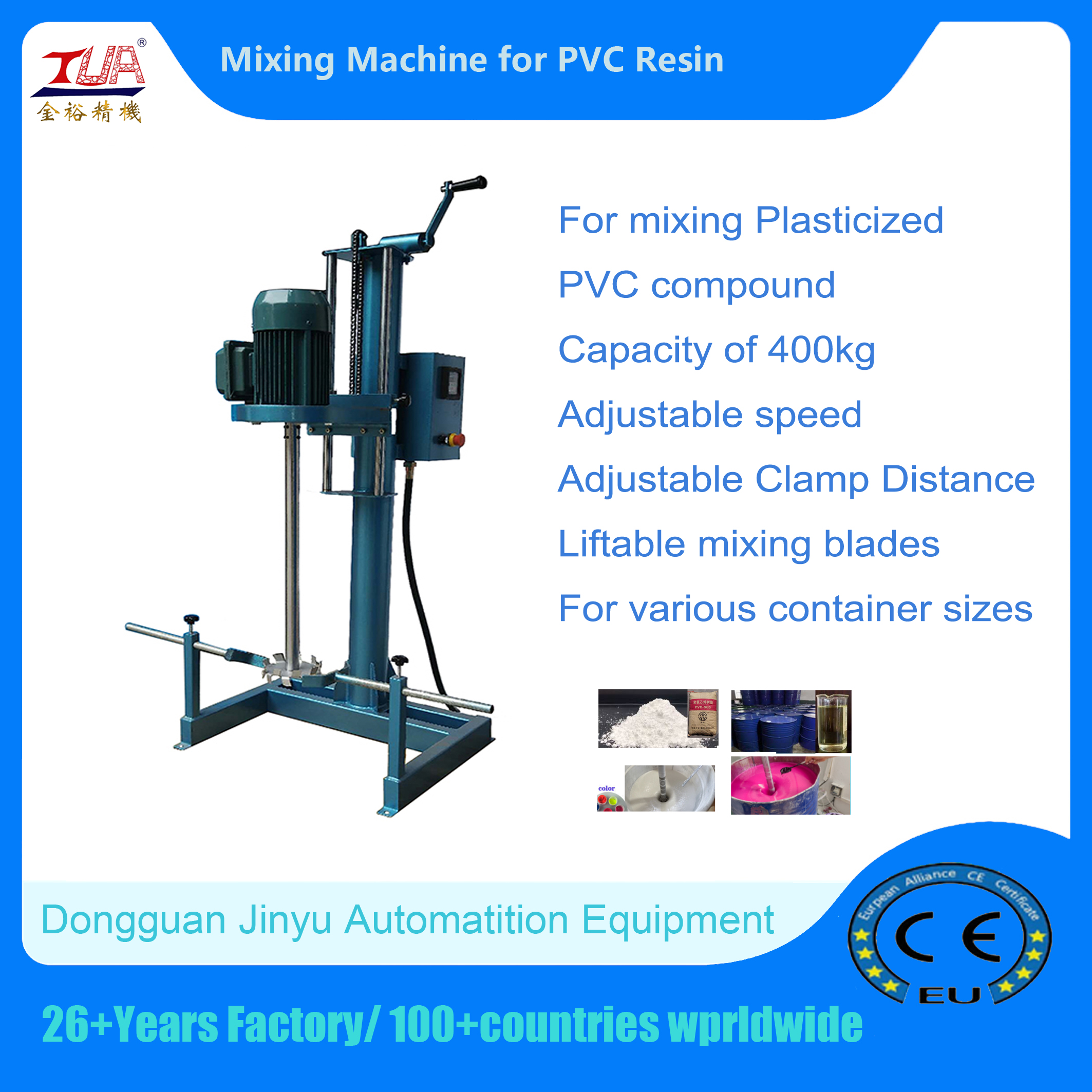

Lifting High-Speed Adjustable Mixer/Disperser—Designed for PVC Plastisol & Color Mixing I. Key Features: Highly Flexible for Different Containers Features: The machine uses an open base structure with no fixed bucket slots. Whether it's a small 5L stainless steel mixing tank or a large 50L plastic bucket, simply place it under the mixing paddle for direct processing. Wide Capacity Range: 5L to 50L Features: By adjusting the height of the stirring head, a single machine can handle several kilograms of sample colorant as well as tens of kilograms of basic white paste, greatly saving equipment purchase costs. Variable Frequency Speed Control (VFD) Features: Equipped with a precision VFD, the speed can be freely adjusted between 0-1500 rpm (or higher). Low speed can be used for powder premixing (anti-splash), while high speed can activate a high-shear mode to quickly break up PVC powder clumps and color paste. Hydraulic/Pneumatic Lifting Features: The stirring head and main shaft can be smoothly raised and lowered with one button, with a stroke typically between 400-600 mm. Changing tanks, washing blades, and manual feeding are very easy.
Why is it the perfect partner for PVC drip molding lines (12-color/18-color)?

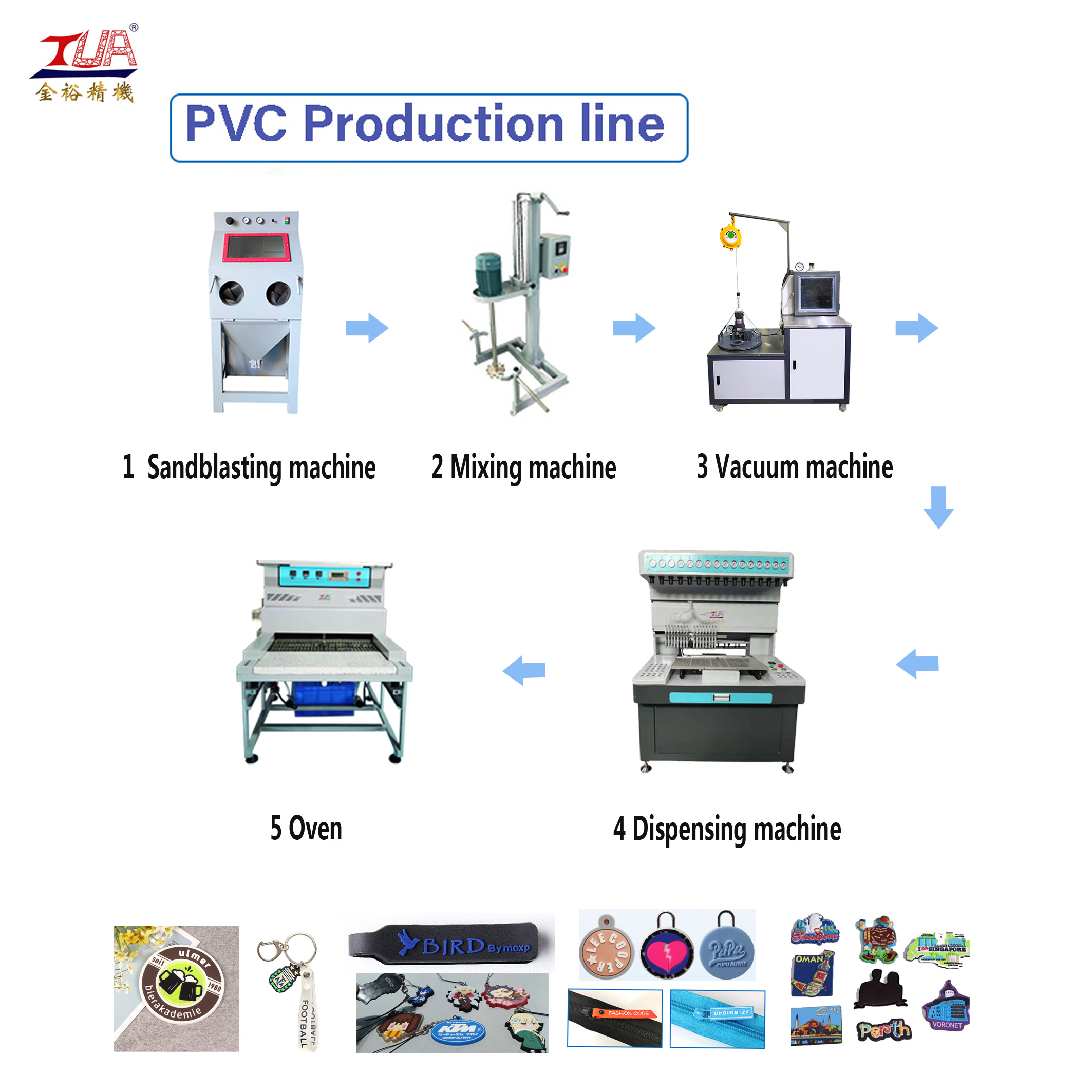

In an automated drip molding workshop, the process typically involves:
Preparing the base white paste using a large machine.
Using a separate lifting mixer, take a 5L or 10L container and add the white paste and the red, blue, and yellow color pastes respectively.
Mix at high speed for 5 minutes until quickly and evenly mixed.
Then, move the container to an adjacent independent vacuum chamber to remove air bubbles for 10 minutes.
After vacuuming, directly feed the 12-color or 18-color drip molding machine.
