2.54mm Pin Header SMT Type Single Row

2 month ago

2 0

HuiZhou Antenk Electronics Co., LTD

 5 year year

Product details

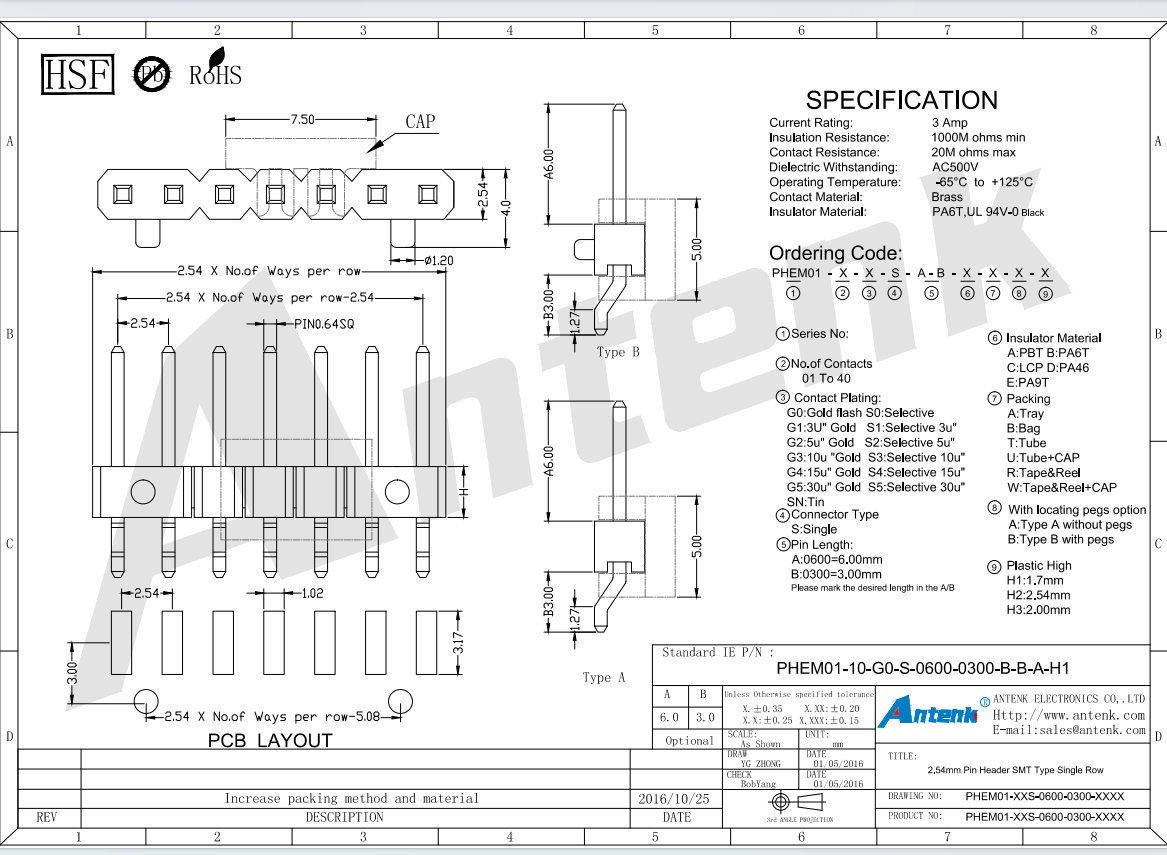

Antenk’s 2.54mm Single Row Right Angle SMT Pin Header is engineered to deliver stable line to board electrical connection for surface mount electronic assembly. This product adopts a standard 2.54mm pin pitch with configurable contact quantities ranging from 1 pin to 40 pins, supplied in two right angle structural versions Type A without locating pegs and Type B with locating pegs. Two optional pin lengths of 6.00mm and 3.00mm plus multiple plastic body height options are available to match different PCB layout requirements. Made of brass contacts and UL94 V 0 grade black PA6T insulating material, the pin header supports various surface plating solutions including selective gold flash, multiple thickness gold plating and tin plating to satisfy different anti oxidation and conductive demands. It features a 3 Amp rated current, 1000MΩ minimum insulation resistance, 20MΩ maximum contact resistance and AC500V dielectric withstanding capacity, working reliably from minus 65 degrees Celsius to 125 degrees Celsius. Users should complete SMT reflow soldering strictly following the official PCB layout drawing to install the connector on circuit boards. Operators need to regulate reflow temperature to prevent plastic housing deformation, and store unused connectors in sealed dry packaging to avoid pin oxidation and surface contamination.

The whole manufacturing workflow of this pin header at Antenk covers independent precision mold development, brass terminal high speed stamping, engineering plastic injection molding, terminal electroplating, automatic assembly and strict laboratory performance testing. Founded in 2007, Antenk operates two production bases with total factory area over 10000 square meters and 250 professional employees. We are equipped with imported high speed stamping machines, precision plastic injection equipment, over 20 sets of professional testing devices and hundreds of self developed connector molds. Compared with small scale manufacturers, Antenk holds independent import and export qualification and can issue 13 percent value added tax invoices for global buyers. Our brand ANTENK is awarded Guangdong Famous Trademark, all products comply with RoHS and REACH environmental standards, and we have obtained UL ISO9001 ISO14001 and IATF16949 automotive industry quality certifications. More than 70 percent of our products are exported worldwide, and we offer flexible customization on pin number plating material packaging method and insulator material which most competitors cannot fully support.

This right angle SMT pin header is widely used in liquid crystal display equipment digital cameras communication devices industrial control units digital home appliances electronic toys computer peripherals automotive electronic modules and precision measuring instruments. Our products have gained high recognition across major domestic electronic cities and dozens of overseas regions covering Europe Southeast Asia South America and North America. Supported by experienced engineering and quality assurance teams, every batch of pin headers undergoes strict electrical thermal and mechanical tests before delivery to guarantee long term stable connection performance in complex working scenarios. Antenk provides diverse packaging choices including tray bag tape and reel to fit automated production lines of global manufacturers, delivering one stop customized connector solutions with stable quality flexible service and comprehensive competitive advantages.
