1.27wm IDC Socket With Bump

2 month ago

4 0

HuiZhou Antenk Electronics Co., LTD

 5 year year

Product details

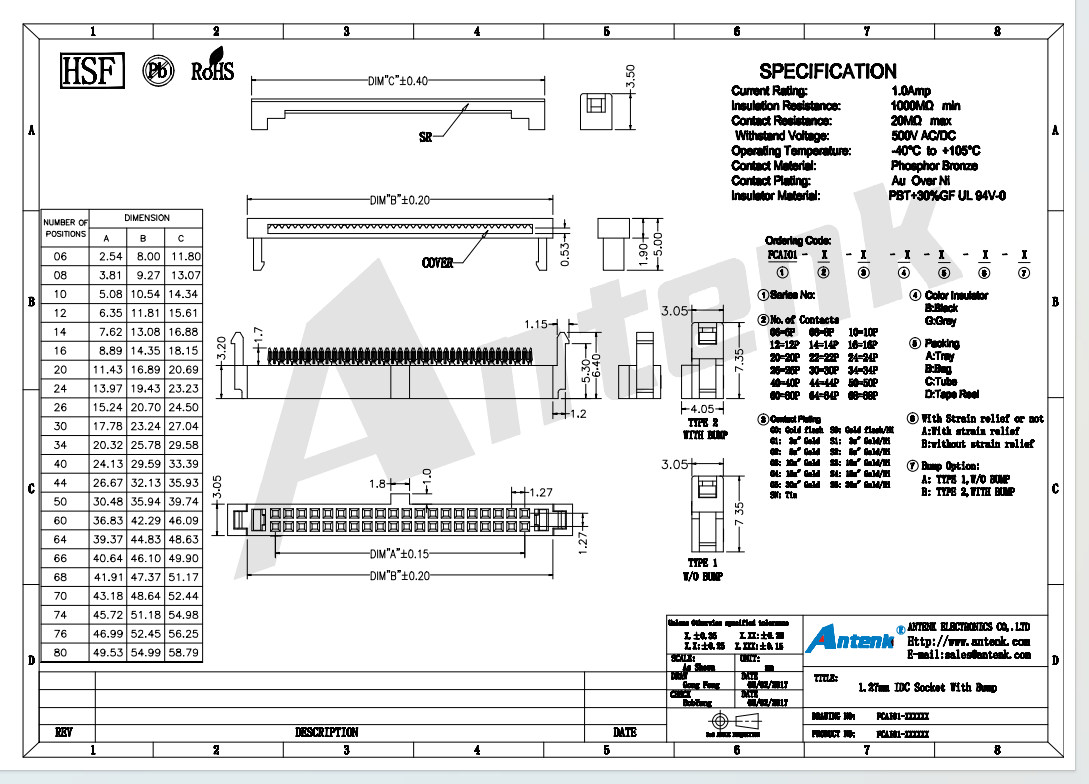

Our 1.27mm pitch IDC Socket with Bump developed by Antenk Electronics is a high-performance wire-to-board connector designed for reliable electrical connection between cables and circuit boards. This product supports pin counts ranging from 6P to 80P with precise dimensional tolerances, featuring two structural types including bump and non-bump versions with optional strain relief structure to avoid wire falling off during installation. Users can finish quick wire termination via IDC crimping method without complicated soldering operations, which greatly improves assembly efficiency. The connector holds 1.0A rated current, 500V AC/DC withstanding voltage, 1000MΩ minimum insulation resistance and 20mΩ maximum contact resistance, operating stably within the temperature range from -40℃ to 105℃. All raw materials comply with RoHS and REACH environmental standards, and most series have obtained UL certification to eliminate application safety risks. When using this product, users must strictly follow specified crimping pressure and operating temperature, and avoid overloading current to prevent insulation aging and contact burnout.

Compared with ordinary IDC connectors from other manufacturers, our product boasts prominent competitive advantages supported by complete in-house industrial chain and strict quality control system. Founded in 2007, Antenk owns independent mold development workshop, terminal stamping workshop, injection molding workshop and automatic assembly workshop equipped with Taiwan high-speed precision punching machines, imported plastic injection equipment and professional laboratory testing instruments. We have more than 250 sets of plastic molds and 180 sets of precision terminal molds, realizing full-process independent production from mold design, raw material molding, terminal stamping to finished product automatic assembly, which effectively controls product consistency and delivery cycle. Our brand Antenk is awarded Guangdong Famous Trademark, and the factory has passed ISO9001, ISO14001 and IATF16949 automotive quality management system certification, which enables our connectors to meet both consumer electronics and automotive industrial strict quality requirements, while we provide 13% VAT invoice and self-operated import and export service to support global business cooperation.

This IDC socket connector has wide application coverage across diverse industrial fields, including liquid crystal display devices, digital cameras, industrial control equipment, digital home appliances, computer peripheral equipment, communication instruments, air conditioners, audio devices, automotive electronic systems and precision measuring instruments. Our mature production process covers precise mold design and manufacturing, phosphor bronze raw material stamping, gold-over-nickel surface electroplating, flame-retardant PBT plastic injection molding, automatic product assembly and multi-item electrical performance testing. Each finished product undergoes strict insulation resistance, voltage-withstanding and durability tests before delivery. More than 70 percent of our connectors are exported to Europe, Southeast Asia, South America and other global regions, and we can customize pin count, plating thickness, structural type and packaging method to meet diversified customized demands from global purchasers.
