Product details

Precision Lens Barrel Machining Capability, our core processing methods:

• High-precision CNC turning + precision milling compound processing

• Five-axis linkage processing for complex special-shaped lens barrels and window opening structures

• Complete processing of inner holes, end faces, flanges, and datum planes in one clamping

• Precision boring and inner hole honing processes (for parts requiring high roundness and straightness)

The high precision tolerance Flatness of the end face≤ 0.01 mm, Coaxiality≤ 0.01 mm,Roundness≤ 0.005–0.01 mm,Straightness of inner hole≤ 0.01 mm / 100 mm,Surface roughnessRa 0.2–1.6 μm.

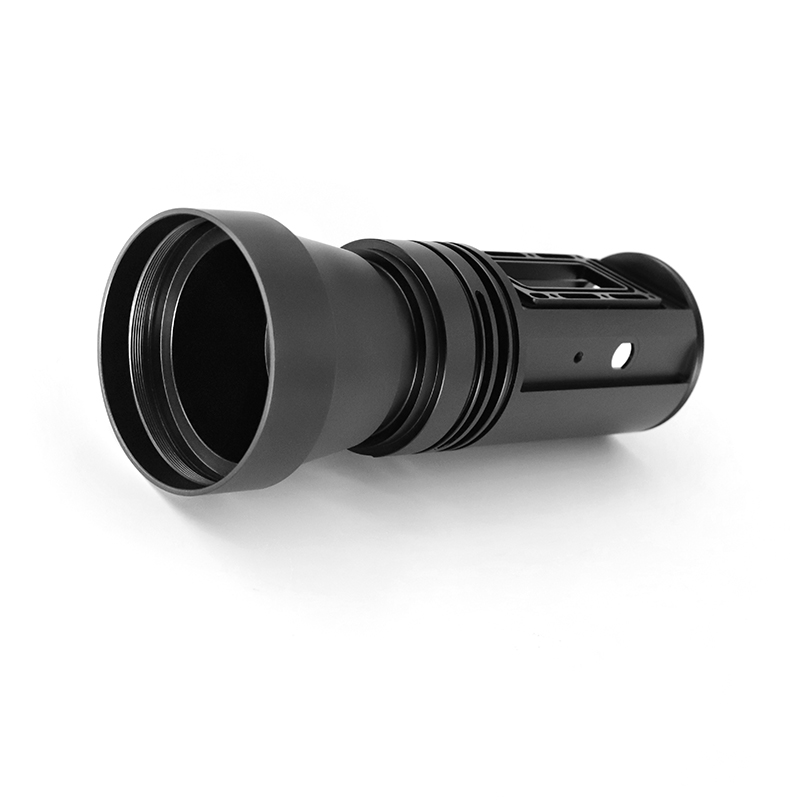

Sighting telescope Alumimum alloy housing+Material：AL7075-T651+Process：Turning&Milling+Finish：Sandblasting & matte black hard anodizing

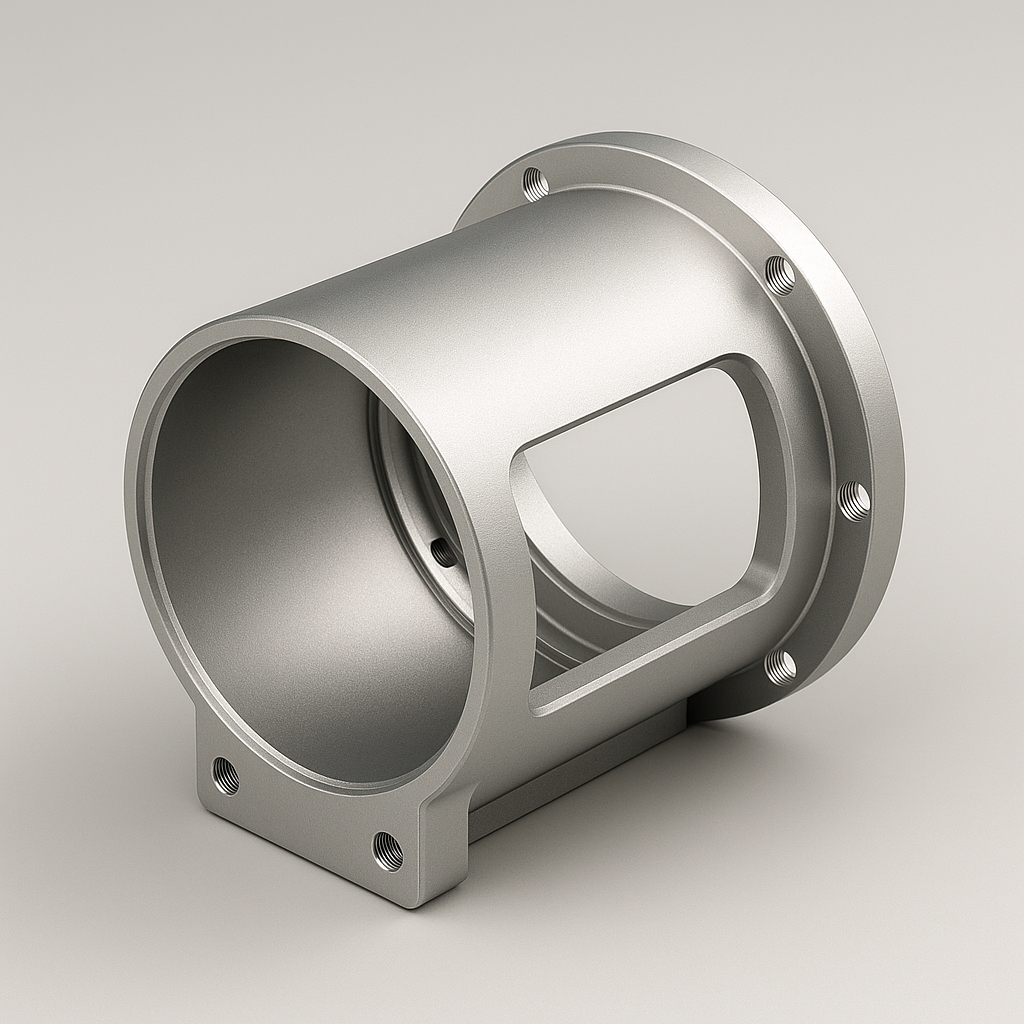

The lens barrel is one of the core structural components of the optical system, directly determining imaging stability, optical axis accuracy, and system reliability. We specialize in the customized processing and mass supply of high-precision opto-mechanical lens barrels, sighting scope lens barrels, and optoelectronic system housings, providing stable and reliable precision processing solutions for fields such as military industry, avionics, infrared, medical care, and industrial measurement.

More prodcuts, pls check links: CNC Machining parts, aerospace components, die casting machining, precision components etc.
