2.00mm Pin Header DualRow Double Plastic SMT Type

5 week ago

1 0

HuiZhou Antenk Electronics Co., LTD

 5 year year

Product details

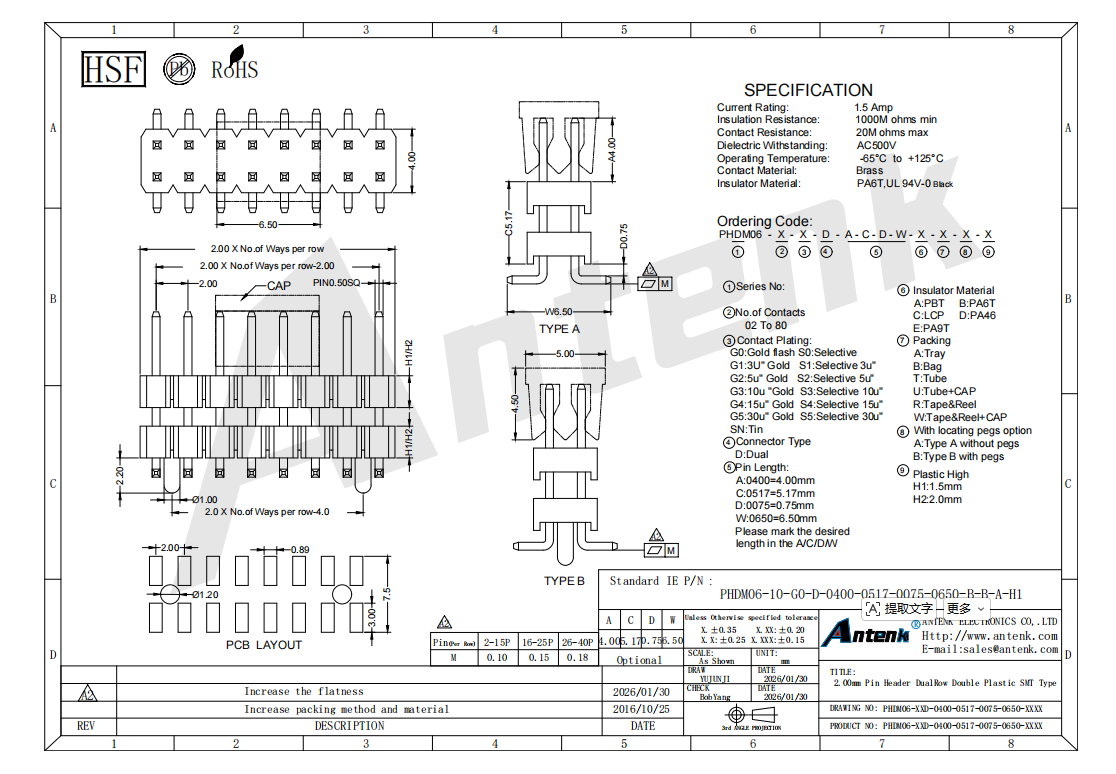

This 2.00mm dual row double plastic SMT pin header connector developed by Antenk, formally Huizhou Antenk Electronics Co., Ltd, is a reliable line-to-board connection component engineered for surface mount assembly. The product features a 2.0mm pin pitch, supporting contact specifications ranging from 2 to 80 positions with two structural options including the type A design with locating pegs and type B without locating pegs. Its brass contact terminals can be customized with diverse gold plating thickness options to balance electrical performance and cost efficiency. With an insulation resistance of 1000M ohms minimum, contact resistance within 20M ohms maximum and dielectric withstand voltage up to AC500V, the connector works steadily in a wide temperature range from minus 65 degrees Celsius to 125 degrees Celsius. Adopting PA6T UL94V0 black plastic as insulator material, this SMT pin header is installed by direct surface mounting on PCB boards following the standard PCB layout provided, which effectively saves internal device space and improves automated assembly efficiency. Users should strictly control the soldering temperature and time during SMT mounting to avoid plastic deformation, and store the products in dry packaging to prevent pin oxidation before assembly.

This pin header product has wide application coverage across consumer electronics, industrial control equipment, automotive electronics, communication devices, digital home appliances, precision instruments and network hardware. It can be applied to liquid crystal displays, digital cameras, air conditioners, automotive control modules, audio equipment and computer peripheral devices to achieve stable electrical signal and power transmission. Compared with competing products in the industry, Antenk holds independent intellectual property rights and the well-known trademark of Guangdong Province, with in-house mold development, stamping, injection molding and automated assembly production lines. Equipped with advanced imported precision production and testing equipment, the company strictly follows ISO9001, ISO14001 and IATF16949 quality management systems, each batch of connectors undergoes comprehensive electrical and environmental reliability tests, delivering more stable product consistency and longer service life. All products comply with RoHS and REACH environmental standards and pass UL safety certification, which greatly reduces customers’ overseas market access risks.

The complete production process of this dual row double plastic SMT pin header covers independent precision mold design and manufacturing, brass terminal high-speed stamping, pin surface gold plating treatment, high precision plastic injection molding for PA6T insulator housing, semi-finished product automatic assembly, electrical performance testing, dimensional inspection, flatness adjustment and standardized vacuum packaging. With a 10,000-square-meter production base, 250 professional staff and over 180 sets of automatic assembly equipment, Antenk can provide customized pin length, plating specification, insulator material and packaging methods according to client demands, with multiple packaging options including tray, tape and reel and tube packaging. More than 70 percent of the company’s products are exported worldwide, and the factory holds self-operated import and export rights to offer one-stop customized connector solutions for global buyers with stable delivery capacity and professional technical after-sales support.
