2.54m Female Header Single Row SMT Type H:7.1

2 month ago

4 0

HuiZhou Antenk Electronics Co., LTD

 5 year year

Product details

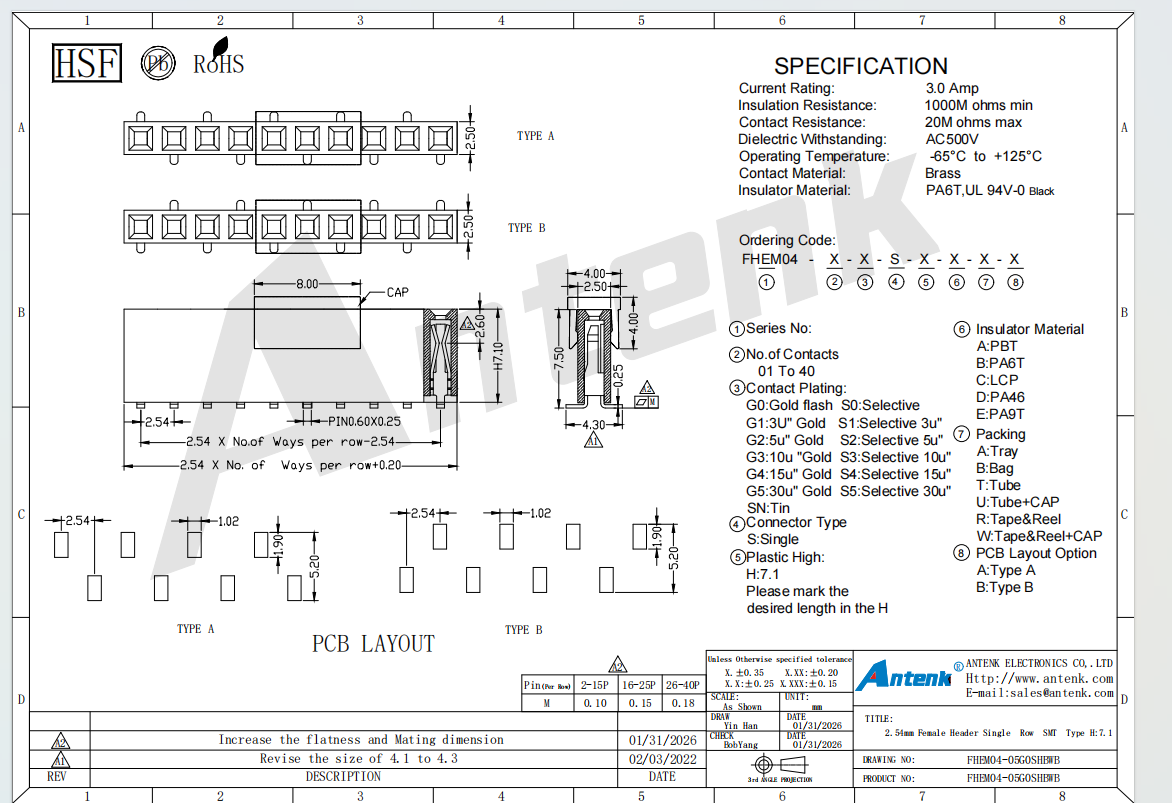

Produced by Huizhou Antenk Electronics Co., Ltd, the 2.54mm Single Row SMT Female Header with model FHEM04 series mainly undertakes stable signal transmission and safe circuit connection between printed circuit boards, supporting precise electrical connection for compact electronic assembly. This product features a 2.54mm standard pin pitch, with contact material made of brass and insulator adopting PA6T UL94V 0 flame retardant black plastic. It is rated for 3 Amp current, with insulation resistance above 1000M ohms, maximum contact resistance of 20M ohms and 500V AC dielectric withstanding voltage, capable of stable operation within an ultra wide temperature range from minus 65 degrees Celsius to 125 degrees Celsius. Our complete production process covers independent mold research and development, precision brass terminal stamping, plastic injection molding, selective gold or tin plating, automated assembly and strict laboratory electrical performance testing. Equipped with imported high speed punching machines and precision injection molding equipment, Antenk realizes precise control over PCB layout dimensional tolerance for both Type A and Type B versions, supporting contact specifications ranging from 2 pins to 40 pins to meet diversified layout demands.

This SMT female header adopts standard surface mount technology for automated PCB soldering installation, which can also be manually mounted for small batch production. It is widely used in industrial control equipment, automotive electronics, communication devices, digital household appliances, precision instruments, computer peripherals and consumer electronic products. During application, users need to strictly follow the standard PCB layout dimensions for patch soldering, avoid excessive soldering temperature and time to prevent plastic insulator deformation, and keep contact terminals away from dust, moisture and corrosive substances to extend service life. All products comply with EU RoHS and REACH environmental regulations, most items obtain UL certification numbered E472792, and our factory has passed ISO9001 ISO14001 and IATF16949 automotive quality system certifications, with multiple plating options including selective gold flash and pure tin plating as well as diverse packaging solutions like tape reel tray and tube packaging.

Compared with other connector manufacturers, Antenk owns over 250 sets of plastic molds and 180 sets of precision terminal molds, which enables fast customization of pin counts plating types packaging modes and PCB layout versions for this female header series. Our 10000 square meter production base in Guangdong with 250 professional employees is equipped with more than 180 automatic assembly machines and 20 sets of professional testing devices, ensuring stable product consistency and high production efficiency. As an enterprise holding Guangdong Famous Trademark qualification, more than 70 percent of our connectors are exported to global markets. Our strict full process quality inspection system delivers superior high temperature resistance stable electrical performance and reliable flame retardant capability, effectively reducing product failure rates and gaining long term recognition and trust from global customers across Europe America Southeast Asia and other regions.
