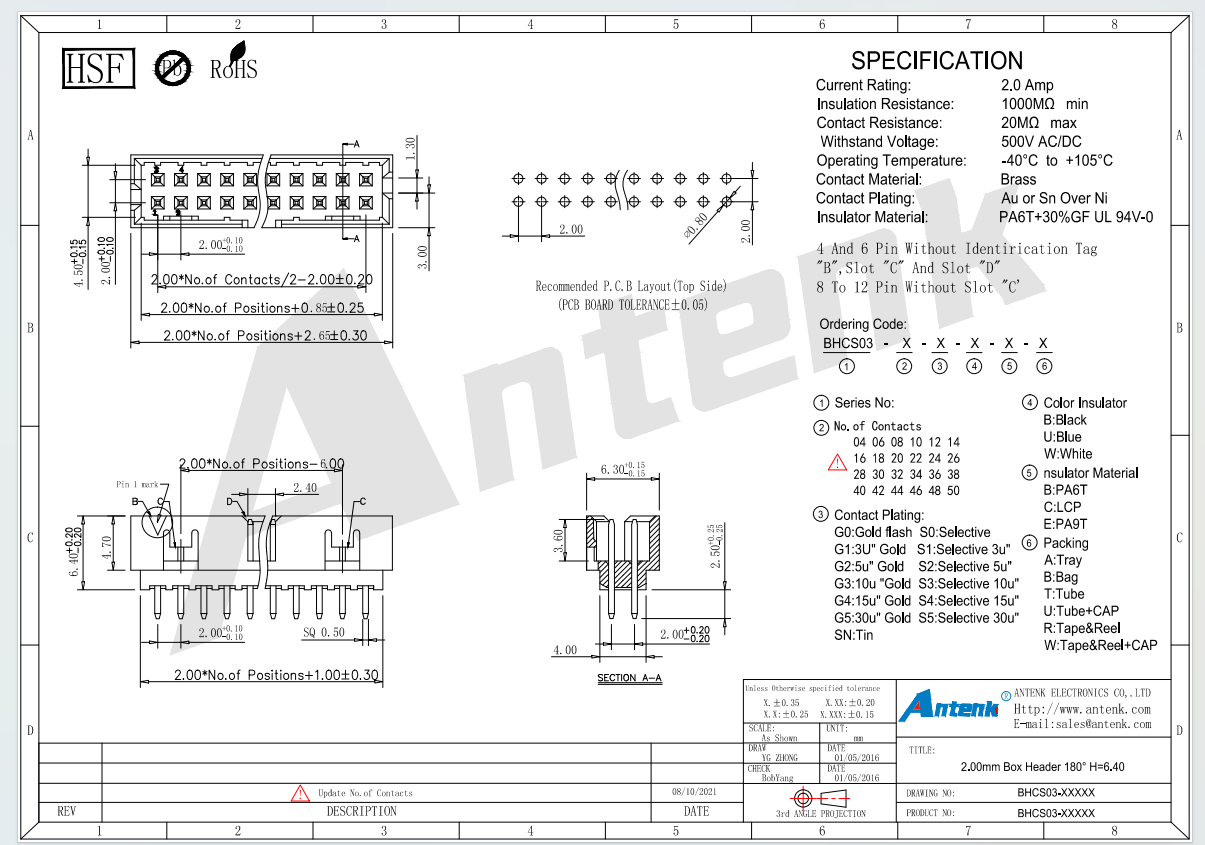

2.00mm Box Header 180° H=6.40

5 week ago

0 0

HuiZhou Antenk Electronics Co., LTD

 5 year year

Product details

Manufactured by Huizhou Antenk Electronics Co., Ltd, the BHCS03 series 2.00mm 180-degree box header with 6.40mm height is engineered to deliver stable signal transmission and secure electrical interconnection between printed circuit boards in compact electronic assemblies. This connector ranges from 4 pins to 50 pins, adopting brass as conductive contact material, with multiple plating options including gold flash, selective gold plating and tin over nickel plating. The insulator is made of PA6T plus 30 percent glass fiber material that conforms to UL94V 0 flame retardant standard. It is rated for 2.0 Amp operating current, with minimum insulation resistance of 1000MΩ, maximum contact resistance of 20MΩ and 500V AC DC dielectric withstanding voltage, operating reliably within a wide temperature range from minus 40 degrees Celsius to 105 degrees Celsius. The complete production flow includes independent mold research and development, precision terminal stamping, high temperature resistant plastic injection molding, surface anti oxidation plating, automatic assembly and full electrical performance testing in professional laboratories. Supported by Taiwan high speed precision punching machines and Japanese injection molding equipment, we strictly control PCB layout dimensional tolerances and provide multiple housing color selections of black blue and white to meet customer identification and assembly requirements.

This 180-degree box header adopts standard through hole DIP soldering installation, compatible with automatic wave soldering and manual soldering processes for PCB mounting. It is widely applied in industrial control devices, communication modules, automotive electronics, digital household appliances, precision testing instruments, computer peripherals and consumer electronic products. During installation, users need to follow the official recommended PCB layout parameters for welding operation, avoid excessive soldering temperature and heating time to prevent insulator deformation, and keep contact terminals away from dust, moisture and corrosive substances to extend service life. All products comply with EU RoHS and REACH environmental regulations, most items obtain UL certification numbered E472792, and our factory has passed ISO9001, ISO14001 and IATF16949 automotive industry quality management certifications, with diverse packaging choices including tray, bag, tube and tape reel to match different production and logistics demands.

Compared with competing connector manufacturers, Antenk owns more than 250 sets of self developed plastic molds and 180 sets of precision hardware terminal molds, supporting flexible customization of pin count, plating type, housing material, color and packaging method for this box header series. Our 10000 square meter production base with 250 professional employees is equipped with over 180 automatic assembly machines and 20 sets of professional testing equipment, ensuring consistent product quality and large volume delivery capacity. As a holder of Guangdong Famous Trademark certification, more than 70 percent of our connectors are exported to global markets. Our multi stage incoming, in process and finished product quality inspection system delivers superior structural stability and reliable anti interference performance, greatly reducing circuit failure risks and helping us build long term stable cooperative relationships with customers across Europe, America, Southeast Asia and other global regions.
