2.00mm Female Header Dual Row Straight Type(W=4.0 H=6.35)

5 week ago

6 0

HuiZhou Antenk Electronics Co., LTD

 5 year year

Product details

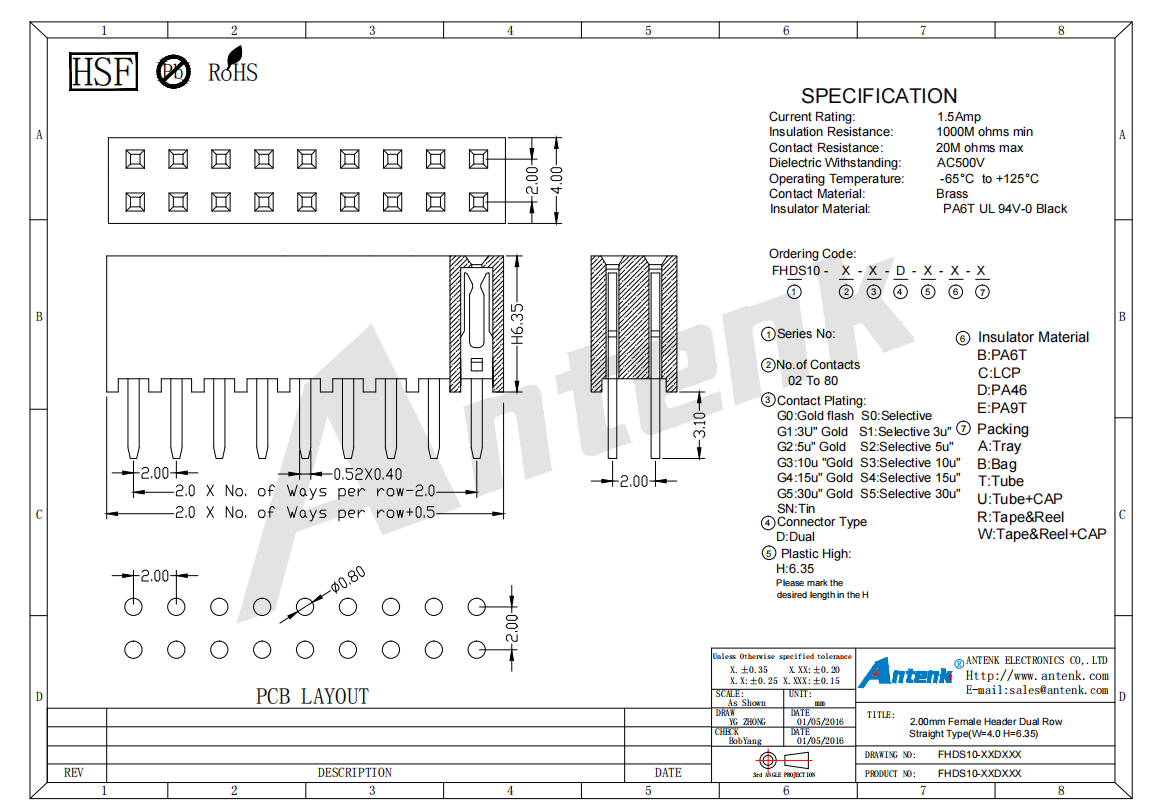

Manufactured by Huizhou Antenk Electronics Co., Ltd, the FHDS10 series 2.00mm dual row straight female header with 4.0mm width and 6.35mm height delivers stable signal transmission and reliable electrical interconnection between printed circuit boards for compact electronic assemblies. This product covers contact specifications ranging from 2 pins to 80 pins, adopting brass as contact material with multiple plating options including gold flash, selective gold plating and tin plating. The insulator is made of high performance PA6T flame retardant material complying with UL94V 0 safety standard. It is rated for 1.5 Amp current, with minimum insulation resistance of 1000M ohms and maximum contact resistance of 20M ohms, capable of enduring 500V AC dielectric voltage and operating reliably within an ultra wide temperature range from minus 65 degrees Celsius to 125 degrees Celsius. The standardized production process includes independent mold development, precision terminal stamping, plastic injection molding, surface anti oxidation plating, automated assembly and strict laboratory electrical performance testing. Equipped with Taiwan high speed punching machines and Japanese precision injection molding equipment, our team precisely controls PCB layout dimensional tolerances and offers various insulator material options to meet diverse high temperature working requirements.

This dual row straight female header adopts conventional through hole DIP soldering installation, compatible with both automated wave soldering and manual welding processes for PCB mounting. It is widely applied in industrial control equipment, automotive electronic modules, communication devices, digital home appliances, precision testing instruments, computer peripherals and consumer electronic products. During installation, users must follow the official recommended PCB layout parameters for welding, avoid excessive soldering temperature and heating time to prevent plastic insulator deformation, and keep contact terminals away from dust, moisture and corrosive substances to extend service life. All products comply with EU RoHS and REACH environmental regulations, most items pass UL certification numbered E472792, and our factory has obtained ISO9001, ISO14001 and IATF16949 quality management certifications, with multiple packaging solutions such as tray, bag, tube and tape reel to satisfy different production and logistics demands.

Compared with other connector manufacturers, Antenk owns more than 250 sets of self developed plastic molds and 180 sets of precision hardware terminal molds, supporting flexible customization of pin count, plating type, insulator material and packaging mode for this female header series. Our 10000 square meter production base with 250 professional employees is equipped with over 180 automatic assembly machines and 20 sets of professional testing devices, ensuring stable product consistency and large scale delivery capacity. As a Guangdong Famous Trademark certified enterprise, more than 70 percent of our connectors are exported to global markets. Our multi stage strict quality inspection system provides superior high temperature resistance and stable electrical performance, effectively reducing product failure rates and establishing long term trusted partnerships with customers across Europe, America, Southeast Asia and other global regions.
