2.00mm Pin Header Single Row Double Plastic Straight Type

5 week ago

6 0

HuiZhou Antenk Electronics Co., LTD

 5 year year

Product details

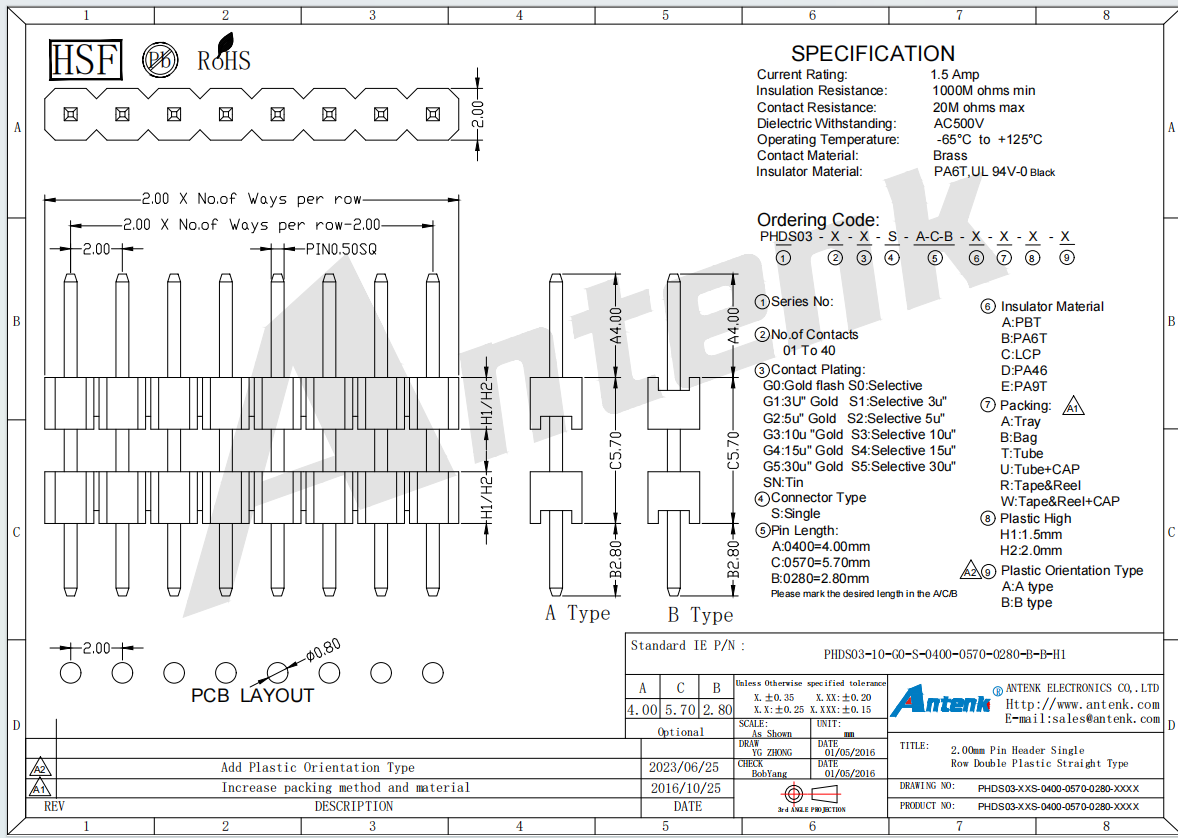

Manufactured by Huizhou Antenk Electronics Co., Ltd, the PHDS03 series 2.00mm single row double plastic straight pin header provides stable power supply and high-fidelity signal transmission for PCB interconnection in diverse compact electronic equipment. This product supports pin configurations from 1 pin to 40 pins, adopting brass as contact material with multiple plating choices including gold flash, selective gold plating and tin over nickel plating. The insulator is made of high-performance PA6T flame retardant material conforming to UL94V 0 standard, featuring double plastic positioning structure to strengthen assembly stability. It carries a rated current of 1.5 Amp, with minimum 1000MΩ insulation resistance, maximum 20mΩ contact resistance and 500V AC dielectric withstand voltage, operating steadily in an ultra-wide temperature range from -65℃ to 125℃. Our standardized production process covers independent mold development, precision terminal stamping, plastic injection molding, surface anti-oxidation plating, automatic assembly and full electrical testing. Equipped with Taiwan high-speed punching machines and Japanese precision injection molding devices, we supply two structural types and multiple pin length options with strict tolerance control for PCB layout to meet diverse assembly requirements.

This straight pin header adopts through-hole DIP welding installation, compatible with automatic wave soldering and manual soldering for PCB mounting. It is widely applied in industrial control equipment, automotive electronics, communication modules, digital household appliances, precision testing instruments, computer peripherals and consumer electronics. During usage, operators should follow official PCB layout dimensions for soldering, avoid excessive soldering temperature to prevent plastic deformation, and keep pins away from dust, moisture and corrosive substances to extend service life. All products comply with EU RoHS and REACH standards, most items obtain UL certification numbered E472792, and our factory passes ISO9001, ISO14001 and IATF16949 certifications, with flexible packaging solutions of tray, bag, tube and tape reel to match different production and logistics demands.

Compared with peer manufacturers, Antenk owns over 250 sets of plastic molds and 180 sets of precision terminal molds, enabling customized adjustment on pin count, pin length, plating type, insulator material and structural style for this pin header series. Our 10000-square-meter production base with 250 professional staff is equipped with 180+ automatic assembly machines and 20 professional testing devices, guaranteeing stable product consistency and large-volume delivery capacity. As a Guangdong Famous Trademark enterprise, more than 70 percent of our products are exported worldwide. Our multi-stage strict quality inspection endows the product with superior structural stability and high-temperature resistance, effectively reducing circuit failure risks and building long-term trusted cooperation with global customers across Europe, America, Southeast Asia and other regions.
