2.50mm pitch 180° Wafer Connector Series

5 week ago

3 0

HuiZhou Antenk Electronics Co., LTD

 5 year year

Product details

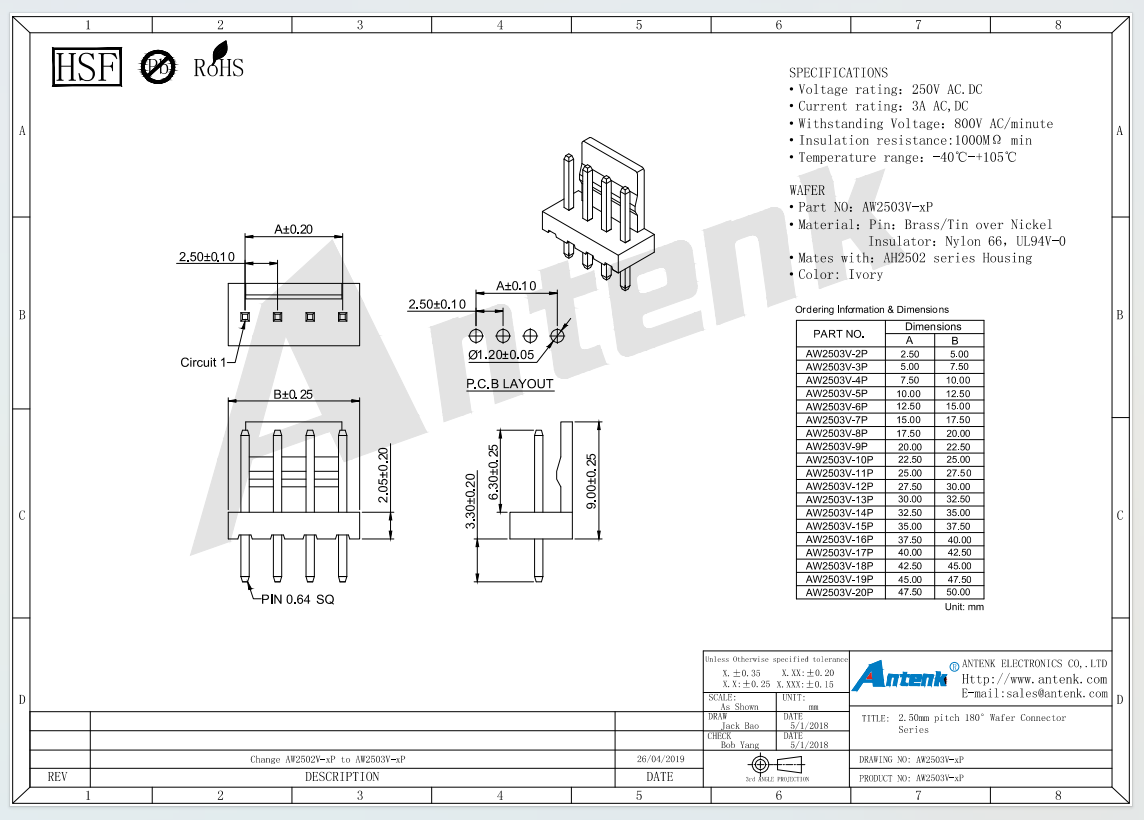

Manufactured by Huizhou Antenk Electronics Co., Ltd, the AW2503V series 2.50mm pitch 180-degree wafer connector delivers reliable power transmission and stable signal interconnection to match with AH2502 series housing for various electronic assembly scenarios. This wafer connector covers specifications ranging from 2 pins to 20 pins, adopting brass contacts plated with tin over nickel, and the insulator is made of flame retardant Nylon 66 that meets UL94V 0 standard with classic ivory color. It is rated for 250V AC DC voltage and 3A current, capable of withstanding 800V AC voltage per minute, with minimum insulation resistance of 1000MΩ and stable performance within the operating temperature range from minus 40 degrees Celsius to 105 degrees Celsius. Our standardized production workflow includes independent mold design and development, precision terminal stamping, plastic injection molding, surface anti-corrosion plating, automated assembly and comprehensive electrical performance testing in professional laboratories. Supported by Taiwan high-speed punching machines and Japanese precision injection molding equipment, all PCB layout dimensions are precisely controlled to guarantee perfect mating accuracy with matched housing components.

This 180-degree wafer connector adopts standard through-hole DIP soldering installation method, compatible with both automated wave soldering and manual welding operations for PCB mounting. It is widely applied in industrial control equipment, automotive electronic modules, communication devices, digital household appliances, precision testing instruments, computer peripherals and consumer electronic products. During installation, users must follow the official recommended PCB layout parameters for soldering, avoid excessive soldering temperature and heating duration to prevent insulator deformation, and keep contact pins away from dust, moisture and corrosive substances to extend service lifespan. All products comply with EU RoHS and REACH environmental directives, most items obtain UL certification numbered E472792, and our factory has passed ISO9001, ISO14001 and IATF16949 automotive industry quality management system certifications, supporting flexible bulk procurement for various pin count specifications.

Compared with other connector suppliers, Antenk owns more than 250 sets of self-developed plastic molds and 180 sets of precision hardware terminal molds, enabling rapid customized adjustment of pin quantity and dimensional parameters for this wafer connector series. Our 10000 square meter production base equipped with 250 experienced employees, over 180 automatic assembly machines and 20 sets of professional testing devices ensures stable product consistency and large-volume delivery capacity. As an enterprise holding Guangdong Famous Trademark qualification, more than 70 percent of our connectors are exported to global markets. Our multi-stage strict quality inspection system delivers excellent mating stability and outstanding electrical safety performance, effectively reducing assembly failure risks and establishing long-term trusted cooperative relationships with customers across Europe, America, Southeast Asia and other global regions.
