MX3.00mm Male Housing Connector Series

5 week ago

2 0

HuiZhou Antenk Electronics Co., LTD

 5 year year

Product details

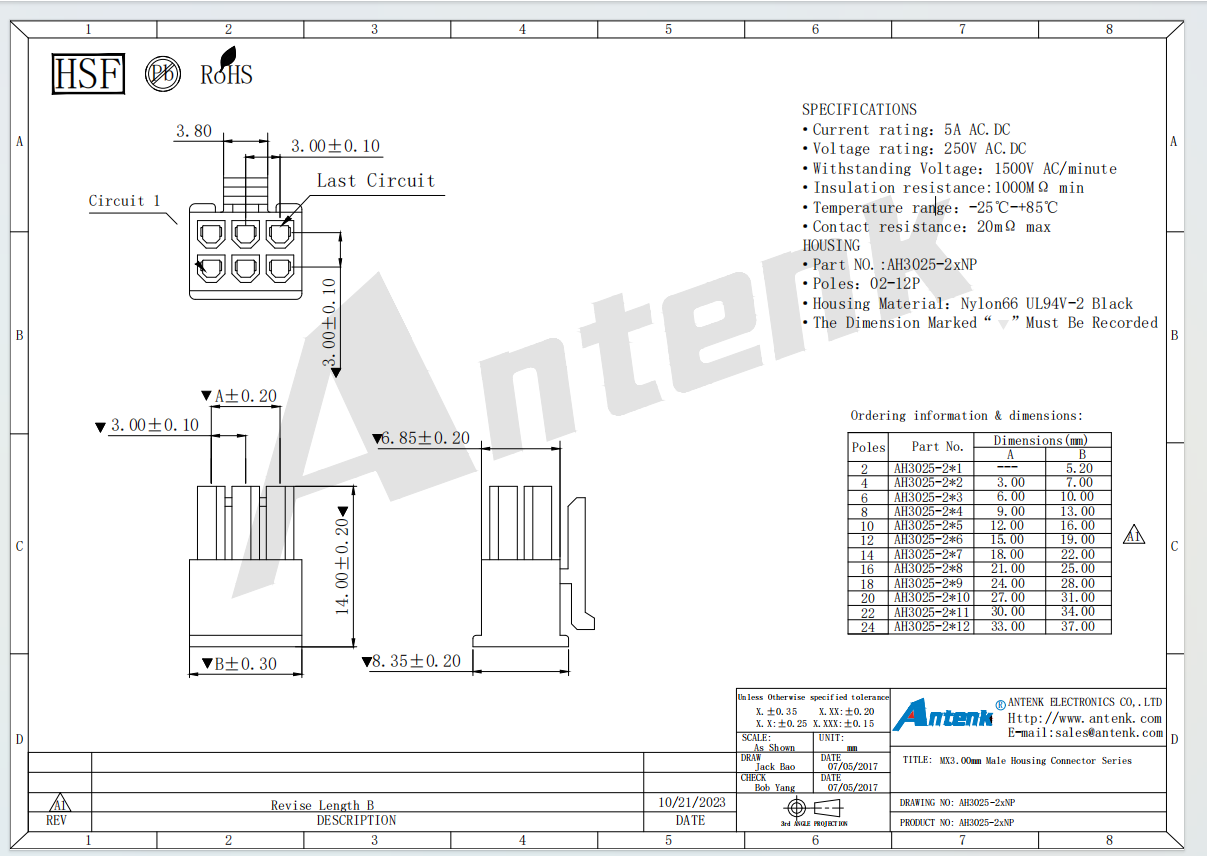

Manufactured by Huizhou Antenk Electronics Co., Ltd, the AH3025 male housing connector series with 3.00mm pitch is designed to realize safe power transmission and stable signal connection for wire-to-board electronic assembly applications. This housing ranges from 2 poles to 24 poles, constructed from high-performance black Nylon66 material that conforms to UL94V-2 flame retardant standard. It supports a rated current of 5A under 250V AC DC, features 1500V AC one-minute dielectric withstand voltage, minimum 1000MΩ insulation resistance and maximum 20mΩ contact resistance, maintaining stable performance within the temperature range from -25ºC to +85ºC. Our complete production process covers independent mold design and development, precision plastic injection molding, automated trimming and strict laboratory electrical safety testing. Equipped with Japanese precision injection molding machines and professional dimensional inspection equipment, we strictly control all key dimensional tolerances, and the integrated locking buckle structure effectively prevents accidental disconnection during long-term equipment operation.

This male connector housing adopts manual crimping assembly with matched crimp terminals, which can be quickly assembled with wires and plugged into the corresponding female connector for equipment wiring connection. It is widely applied in industrial control equipment, automotive electronic assemblies, household appliances, communication modules, precision instruments, computer peripheral devices and consumer electronic products. During usage, users must select matched terminals and wires according to the rated electrical parameters, avoid overloading current and voltage, prevent violent plugging and pulling to protect the buckle structure, and keep the housing away from high temperature, dust and corrosive environments. All products comply with EU RoHS and REACH environmental standards, most items pass UL certification numbered E472792, and our factory has obtained ISO9001, ISO14001 and IATF16949 quality system certifications to guarantee consistent safety and environmental performance.

Compared with other connector manufacturers, Antenk owns more than 250 sets of self-developed plastic molds and 180 sets of precision hardware terminal molds, supporting flexible customization of pole numbers and structural parameters for this 3.00mm housing series. Our 10000 square meter production base with 250 professional employees is equipped with over 180 automatic assembly machines and 20 sets of professional testing equipment, ensuring stable product yield and large-scale delivery capacity. As a Guangdong Famous Trademark certified enterprise, more than 70 percent of our products are exported to global markets. Our multi-stage incoming and finished product inspection system delivers superior anti-loosening structure and reliable flame retardant performance, greatly reducing wiring failure risks and winning long-term trust from global customers across Europe, America, Southeast Asia and other international regions.
