Product details

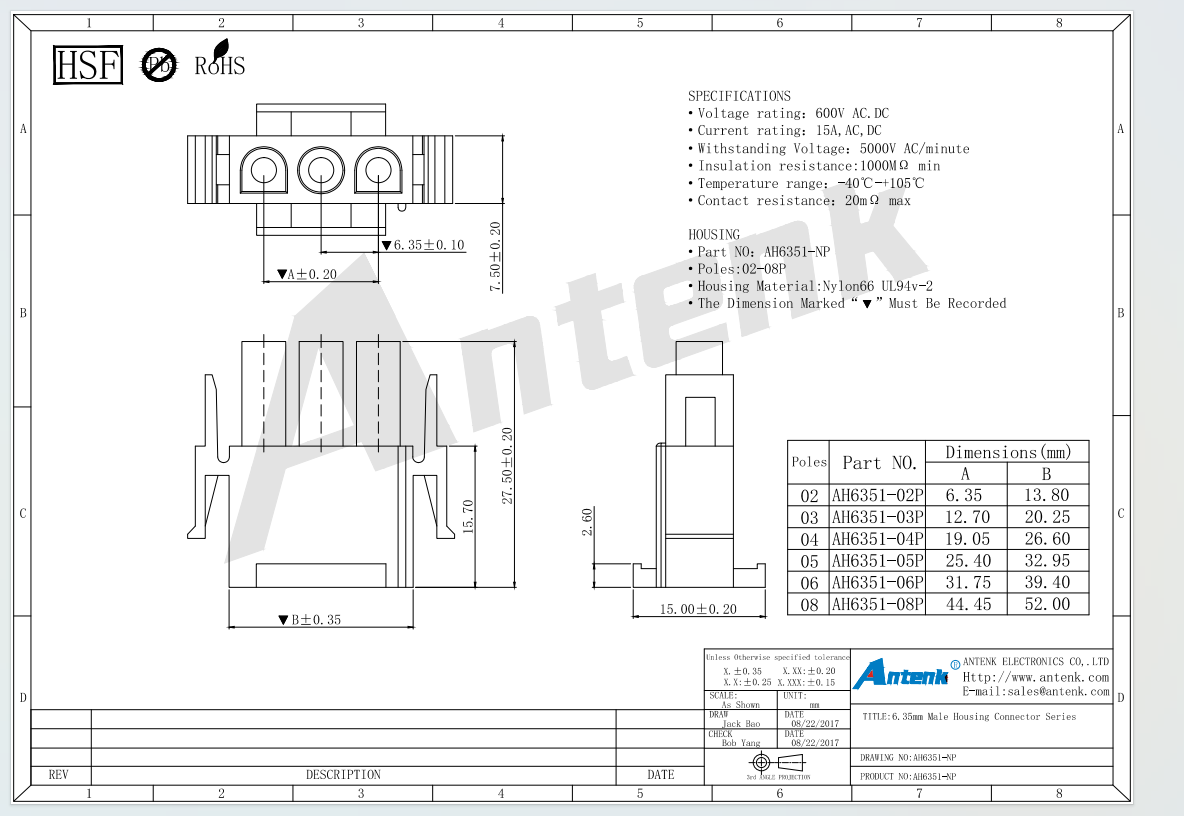

Manufactured by Huizhou Antenk Electronics Co., Ltd, the AH6351 male housing connector series with 6.35mm pitch serves as reliable wire-to-board connection components for high-power electrical equipment to realize safe power transmission and stable signal conduction. This housing covers specifications ranging from 2 poles to 8 poles, made of high-performance Nylon66 material that meets UL94V-2 flame retardant standard. It is rated for 15A current and 600V AC DC voltage, capable of withstanding 5000V AC voltage per minute, with minimum 1000MΩ insulation resistance and maximum 20mΩ contact resistance, delivering stable performance within the temperature range from minus 40 degrees Celsius to 105 degrees Celsius. Our standardized production workflow includes independent mold design and development, precision plastic injection molding, dimensional inspection and strict electrical safety testing in professional laboratories. Equipped with Japanese precision injection molding equipment, all key dimensions are precisely controlled within specified tolerances, and the dual-side locking buckle structure effectively prevents accidental disconnection during long-term high-load operation.

This male connector housing adopts manual crimping assembly method. Operators need to crimp matched terminals onto wires, insert terminals into the housing until fully locked, then plug the assembled component into the corresponding female connector to complete circuit connection. It is widely applied in industrial control equipment, new energy devices, automotive electrical assemblies, household high-power appliances, communication power modules, precision test instruments and various power supply equipment. During use, users must comply with rated electrical parameters to avoid overload, prohibit violent plugging and unplugging to protect the locking structure, and keep the housing away from high temperature, humid and corrosive environments. All products comply with EU RoHS and REACH environmental regulations, most items pass UL certification numbered E472792, and our factory has obtained ISO9001, ISO14001 and IATF16949 quality management system certifications to guarantee reliable safety performance.

Compared with other connector manufacturers, Antenk owns more than 250 sets of self-developed plastic molds and 180 sets of precision hardware terminal molds, supporting flexible customization of pole numbers and dimensional parameters for this 6.35mm male housing series. Our 10000 square meter production base with 250 professional employees is equipped with over 180 automatic assembly machines and 20 sets of professional testing devices, ensuring stable product consistency and large-volume delivery capacity. As a Guangdong Famous Trademark certified enterprise, more than 70 percent of our connectors are exported to global markets. Our multi-stage strict quality inspection system provides excellent flame retardant and anti-loosening performance, greatly reducing high-power circuit failure risks and establishing long-term trusted cooperative relationships with customers across Europe, America, Southeast Asia and other international regions.
