6.35mm Male Terninal Connector Series

4 week ago

1 0

HuiZhou Antenk Electronics Co., LTD

 5 year year

Product details

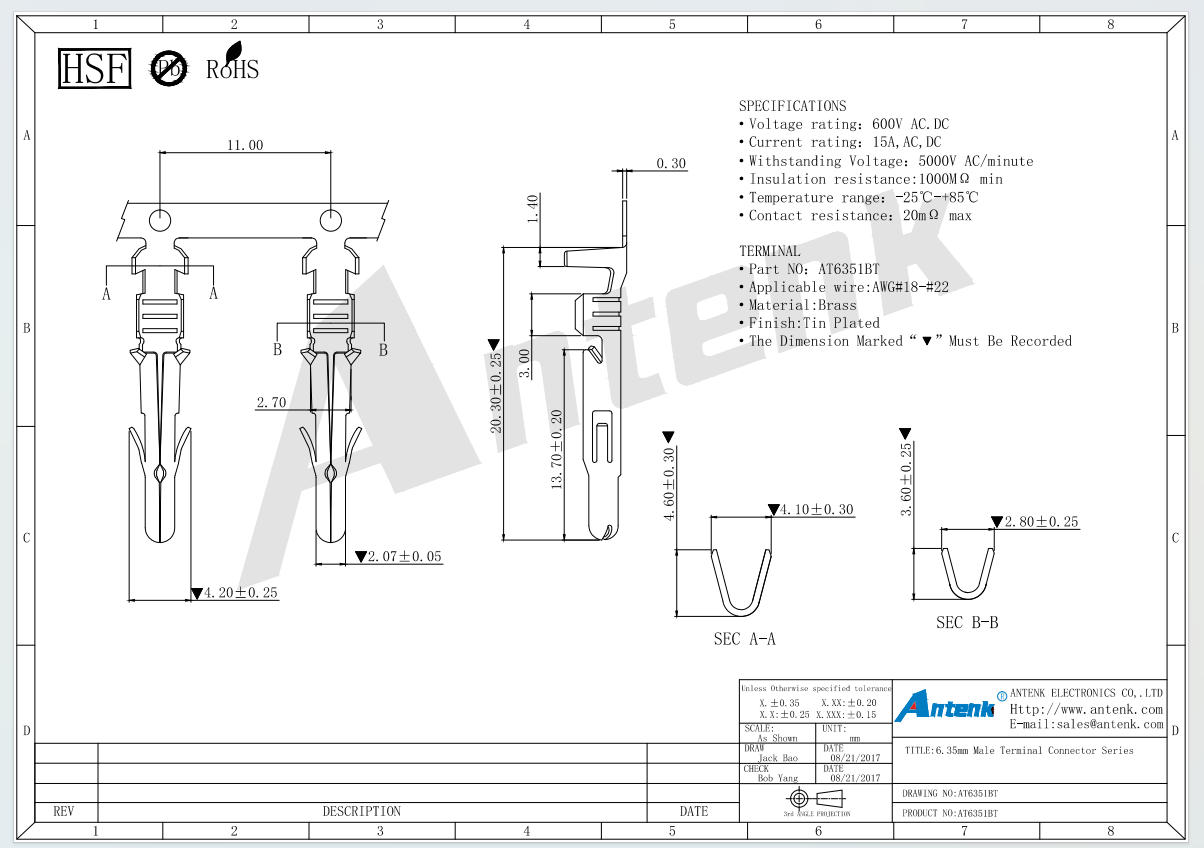

Manufactured by Huizhou Antenk Electronics Co., Ltd, the AT6351BT male terminal is a high-performance crimp-type contact component designed to match the 6.35mm pitch connector housing for stable power transmission and reliable signal connection in high-current wiring systems. Made of brass material with tin plated surface treatment, this terminal is suitable for AWG 18 to AWG 22 wires, featuring precise structural design and strict dimensional tolerance control to guarantee consistent crimping performance. It supports a rated voltage of 600V AC DC and rated current of 15A, withstands 5000V AC voltage within one minute, with minimum insulation resistance of 1000MΩ and maximum contact resistance of 20mΩ, operating steadily between -25℃ and +85℃. Our complete production process covers independent precision stamping mold development, high-speed continuous stamping, surface anti-oxidation tin plating, finished trimming and strict electrical reliability testing in professional laboratories. Equipped with Taiwan high-speed stamping equipment, terminals are produced in strip reel form to adapt to automatic wire crimping equipment, ensuring stable dimensional consistency and excellent plug-in retention force when mated with female terminals.

This male terminal adopts standard wire crimping installation. Users fix the stripped wire into the terminal’s crimp area via professional crimping tools, then insert the terminal into the matched connector housing until fully locked to complete circuit connection. It is widely applied in industrial control equipment, new energy power supplies, automotive electrical systems, high-power household appliances, communication power modules and precision testing instruments. During application, users must select matched wire gauges and qualified crimping tools to avoid loose crimping or wire falling off, never apply excessive pulling force on assembled terminals, and store spare terminals in dry environments to prevent oxidation. All products comply with EU RoHS and REACH environmental standards, most specifications obtain UL certification numbered E472792, and our factory has passed ISO9001, ISO14001 and IATF16949 certifications to guarantee long-term electrical safety and environmental compliance.

Compared with other connector manufacturers, Antenk owns over 180 sets of precision metal stamping molds, supporting customized dimensional adjustment and surface plating options for this male terminal. Our 10000-square-meter production base with 250 professional employees is equipped with automated stamping, electroplating and inspection equipment, ensuring stable mass production capacity and fast delivery for bulk orders. As a Guangdong Famous Trademark certified enterprise, more than 70 percent of our terminals are exported worldwide. Multi-stage incoming and finished product inspections deliver stable conductivity and strong anti-oxidation performance, effectively reducing wiring contact failure risks and establishing long-term trustworthy cooperation with global customers across Europe, America, Southeast Asia and other regions.
