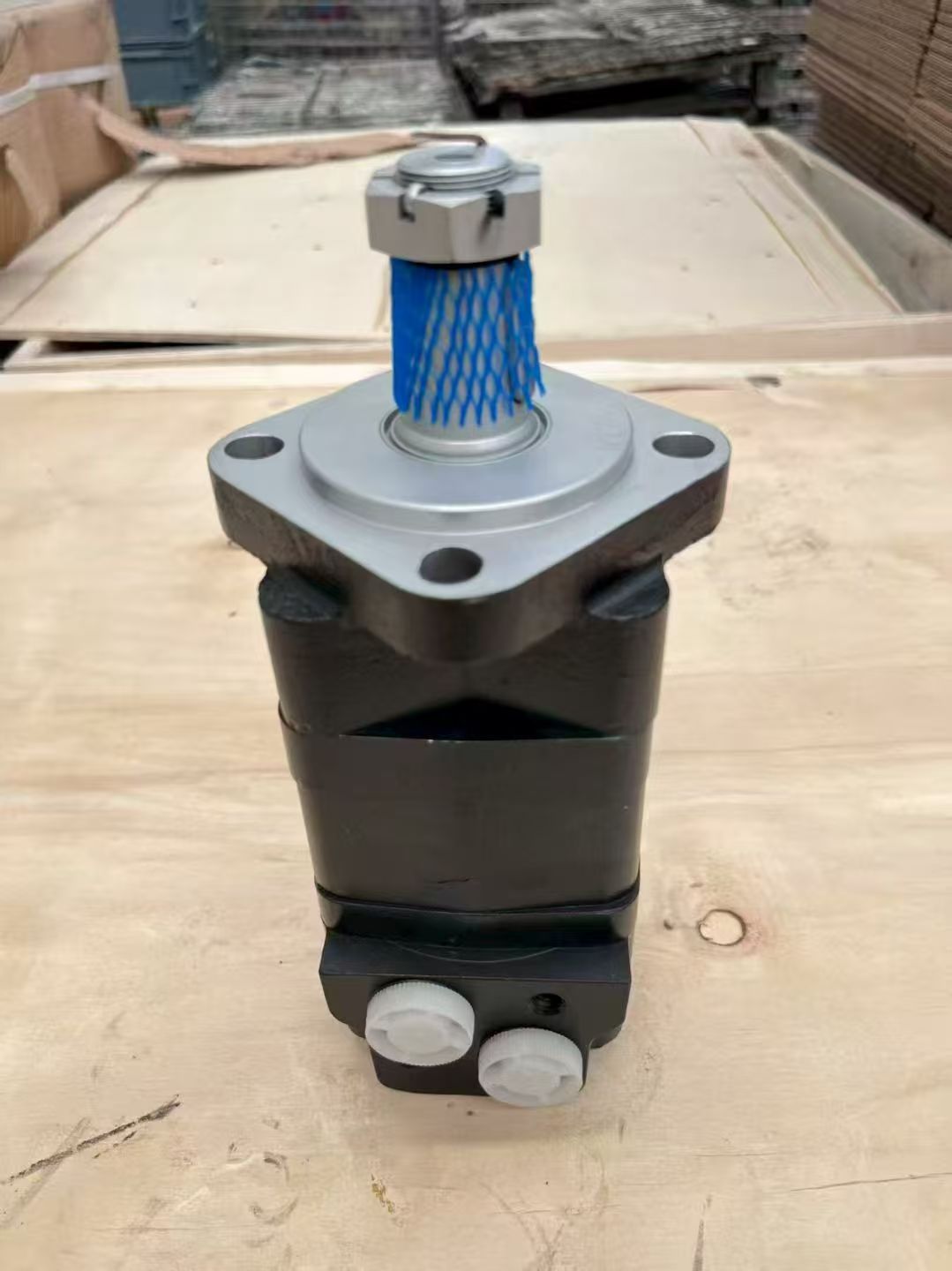

Equivalent danfoss 1201014003 Hydraulic oribit motor

Equivalent danfoss 1201014003 Hydraulic oribit motor

4 week ago

0 0

Ningbo Hengnuo Hydraulic Drive Co.,Ltd

 4 year year

Product details

equivalent alternative to the Danfoss1201014003 hydraulic orbit motor, it is essential to focus on the following core parameters of the hydraulic motor and its compatibility with the existinghydraulic systemto ensure seamless integration:

Key Parameters for Alternative Hydraulic Motors

1. Displacement Matching:

The original model typically offers a displacement range of80-525 cc/r(e.g., the 104 series covers 80 cc/r to 525 cc/r). The alternative must have a similar displacement to ensure consistent flow and torque output.

2. Pressure Ratings:

The original model supports a continuous operating pressure of210-250 barand a peak pressure of275-300 bar. The alternative must meet these pressure ranges to prevent system overload or leakage.

3. Speed Range:

The original model operates at speeds of50-800 r/min. The alternative must cover this range to align with the speed regulation requirements of existing pumps and valves.

4. Structural Type:

The original model is a low-speed, high-torque orbital motor with a gerotor design. The alternative should be of the same type (e.g., gerotor or internal gear motor) to maintain low-speed stability and shock resistance.

Core Requirements for Hydraulic System Compatibility

1. Port Sizes:

The inlet/outlet ports of the alternative must match those of the original system to avoid modification costs.

2. Mounting Configuration:

The shaft or flange mounting method of the alternative must align with the original system to ensure reliable mechanical connections.

3. Fluid Compatibility:

The alternative must be compatible with the hydraulic oil viscosity grade (e.g., ISO VG32 or VG46) and temperature range (-20°C to 80°C is common) used in the original system to prevent seal degradation or lubrication failure.

Recommended Alternative Solutions

1. Danfoss 104 Series Gerotor Motors:

If the original model belongs to the 104 series, you can directly select other displacement variants within the same series (e.g.,104-1062-006with 210 cc/r or104-1754-006with 525 cc/r) for full parameter compatibility.

2. Third-Party Gerotor Motors:

Some manufacturers (e.g.,OMS/BM5 series) offer gerotor motors with Danfoss-compatible interfaces. Verify that their pressure ratings and speed ranges meet your requirements. For example, a motor with a displacement of 125 cc/r and a continuous pressure of 250 bar may suffice for medium-load applications.

3. Internal Gear Motors:

If the system has lower requirements for noise and efficiency, internal gear motors can be considered as alternatives. However, torque output and low-speed stability must be re-evaluated.
