2.00mm Pin Header SingleRow Angle Type

4 week ago

2 0

HuiZhou Antenk Electronics Co., LTD

 5 year year

Product details

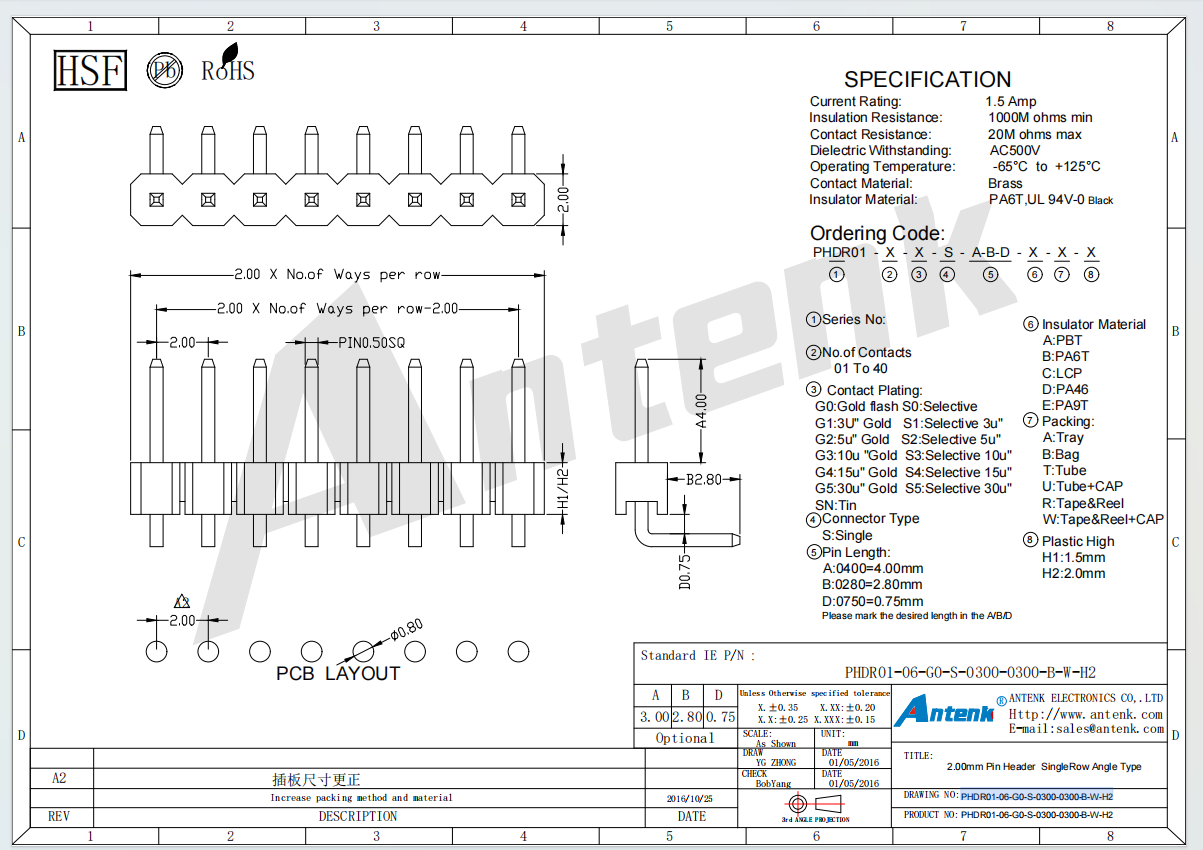

Manufactured by Huizhou Antenk Electronics Co., Ltd, the PHDR01 series 2.00mm single row right angle pin header delivers reliable signal transmission and stable power connection for limited-space PCB electronic assembly. This product covers pin specifications ranging from 1 pin to 40 pins, adopting brass as conductive material with diverse surface treatment options including gold flash, selective gold plating and tin plating. The insulator is made of high-performance PA6T flame retardant material conforming to UL94V 0 standard in black color. It features a rated current of 1.5 Amp, minimum insulation resistance of 1000M ohms, maximum contact resistance of 20M ohms and 500V AC dielectric withstand voltage, maintaining stable electrical performance in an ultra-wide temperature range from minus 65 degrees Celsius to 125 degrees Celsius. Our standardized production workflow consists of independent precision mold development, terminal high-speed stamping, plastic injection molding, surface anti-oxidation treatment, automated assembly and comprehensive electrical performance testing. Equipped with Taiwan high-speed punching machines and Japanese precision injection molding equipment, this connector supports multiple pin length and plastic height options, with strict dimensional tolerance control to perfectly match standard PCB layout requirements.

This single row right angle pin header adopts through-hole DIP soldering installation method, compatible with automatic wave soldering and manual soldering processes to realize horizontal PCB wiring connection. It is widely applied in industrial control equipment, automotive electronic modules, communication devices, digital household appliances, precision testing instruments, computer peripherals and various consumer electronic products. During installation, operators must follow official PCB layout parameters for soldering, avoid excessive soldering temperature and heating duration to prevent insulator deformation, and keep pin terminals away from dust, moisture and corrosive substances to extend service life. All products comply with EU RoHS and REACH environmental regulations, most items obtain UL certification numbered E472792, and our factory has passed ISO9001, ISO14001 and IATF16949 quality management certifications, providing flexible packaging solutions including tray, bag, tube and tape reel to meet different automated production and logistics demands.

Compared with other connector manufacturers, Antenk owns more than 250 sets of self-developed plastic molds and 180 sets of precision hardware terminal molds, supporting flexible customization of pin quantity, pin length, plating type, insulator material and packaging mode for this pin header series. Our 10000 square meter production base with 250 professional employees is equipped with over 180 automatic assembly machines and 20 sets of professional testing devices, ensuring stable product consistency and large-scale order delivery capacity. As an enterprise holding Guangdong Famous Trademark qualification, more than 70 percent of our connectors are exported to global markets. Our multi-stage strict quality inspection system brings outstanding high-temperature resistance and structural stability, effectively reducing circuit failure risks and establishing long-term trusted cooperative relationships with customers across Europe, America, Southeast Asia and other international regions.
