2.54mm Box Header 3M Type 180° H=9.9

4 week ago

1 0

HuiZhou Antenk Electronics Co., LTD

 5 year year

Product details

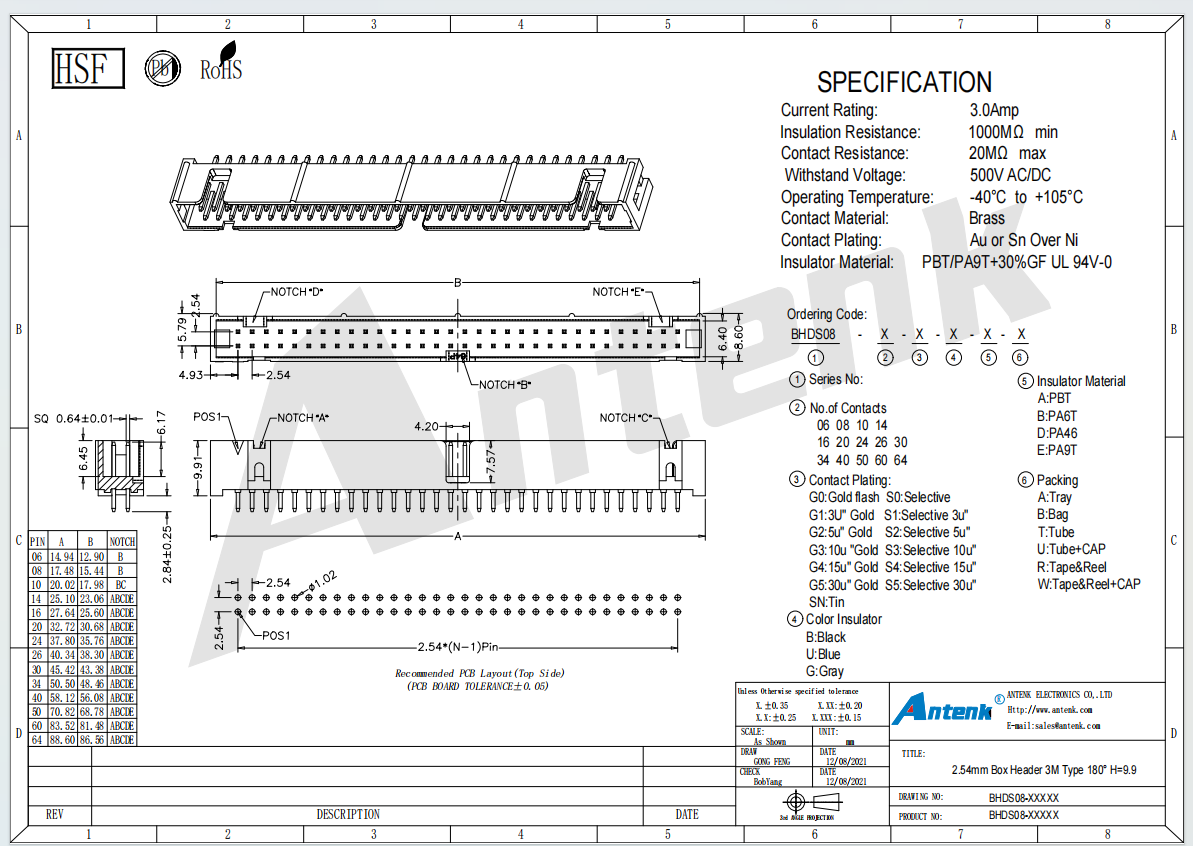

Manufactured by Huizhou Antenk Electronics Co., Ltd, the BHDS08 series 2.54mm straight 180-degree box header with 9.9mm height serves as a reliable enclosed PCB interconnection component to deliver stable power supply and anti-interference signal transmission for various electronic equipment. This connector covers pin specifications ranging from 06 pins to 64 pins, adopting brass contact material with diversified surface finishing options including gold flash, selective gold plating and tin over nickel plating. The insulator is made of PBT or PA9T material filled with 30 percent glass fiber, complying with UL94V 0 flame retardant standard and available in black blue and gray colors. It is rated for 3.0 Amp current and 500V AC DC withstand voltage, with minimum insulation resistance of 1000MΩ and maximum contact resistance of 20MΩ, performing steadily within the operating temperature range from minus 40 degrees Celsius to 105 degrees Celsius. Our standardized production process includes independent precision mold development, high-speed terminal stamping, high-temperature resistant plastic injection molding, anti-oxidation surface plating, automatic assembly and strict electrical performance testing in professional laboratories. Equipped with Taiwan high-speed punching machines and Japanese precision injection molding equipment, this header is designed with three positioning notches for anti-misinsertion, and all PCB layout dimensions are precisely controlled within strict tolerances to guarantee consistent soldering accuracy.

This straight box header adopts through-hole DIP soldering installation, compatible with automatic wave soldering and manual welding processes for vertical PCB assembly. It is widely applied in industrial control devices, communication modules, automotive electronic assemblies, smart home appliances, precision testing instruments, computer peripherals and consumer electronic products. During installation, users must follow the official recommended PCB layout parameters for soldering, avoid excessive welding temperature and prolonged heating time to prevent plastic insulator deformation, and keep contact pins away from dust moisture and corrosive environments to extend service lifespan. All products comply with EU RoHS and REACH environmental regulations, most items pass UL certification numbered E472792, and our factory has obtained ISO9001, ISO14001 and IATF16949 quality management system certifications, with multiple packaging solutions such as tray bag tube and tape reel to meet diverse automated production and logistics requirements.

Compared with other connector manufacturers, Antenk owns more than 250 sets of self-developed plastic molds and 180 sets of precision hardware terminal molds, supporting flexible customization of pin count, plating type, insulator material color and packaging mode for this box header series. Our 10000 square meter production base with 250 professional employees is equipped with over 180 automatic assembly machines and 20 sets of professional testing equipment, ensuring stable product consistency and large-scale order delivery capacity. As a Guangdong Famous Trademark certified enterprise, more than 70 percent of our connectors are exported to global markets. Our multi-stage incoming in-process and finished product inspection system delivers excellent structural stability and high temperature resistance, effectively reducing circuit connection failure risks and establishing long-term trusted cooperative partnerships with customers across Europe America Southeast Asia and other international regions.
