Product details

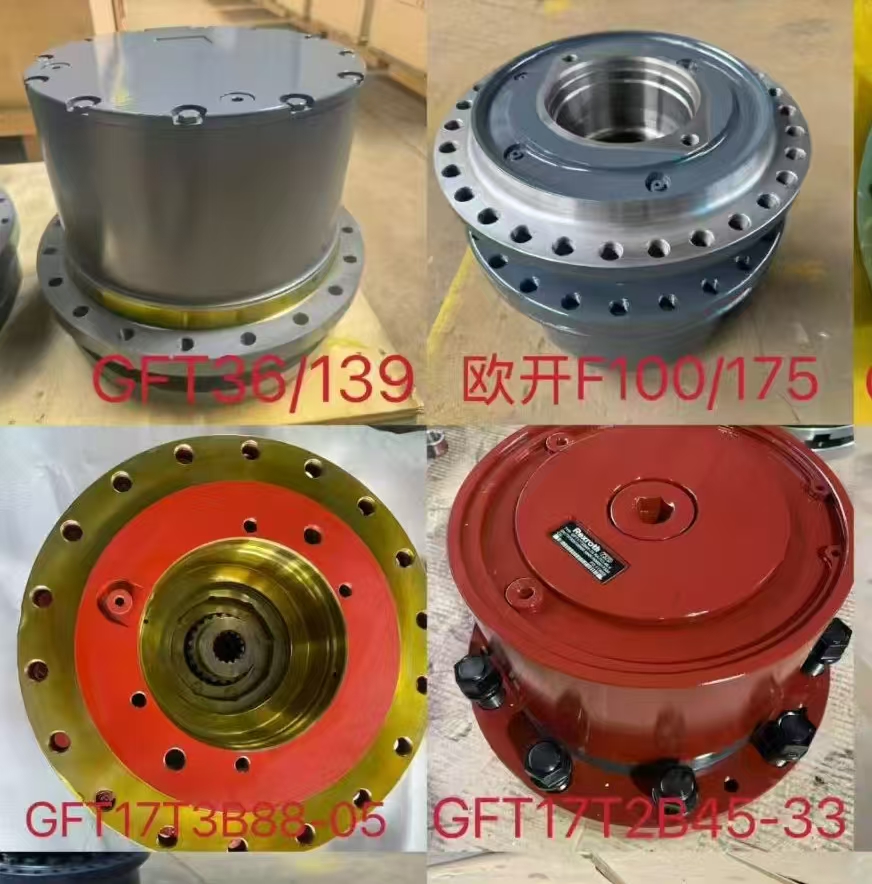

1. GFT36/139

This high-performance hydraulic FINAL DRIVE is integrated into a complete Travel Assembly for small and medium crawler excavators. Designed per the original Rexroth GFT specification with a reduction ratio of 139, it features a 3-stage planetary gear structure to deliver heavy-duty travelling power. It can be fitted with a supporting SWING REDUCER to build a full hydraulic system combining travel and slewing functions for construction machinery.

2. Oukai F100/175

It is a domestically manufactured replacement FINAL DRIVE engineered to substitute imported GFT series units, assembled as a heavy-duty Travel Assembly for heavy crawler chassis. With a reduction ratio of 175 for extra high torque output, it adopts an integrated structure of radial piston motor and planetary gears. It can be perfectly mated with a matched SWING REDUCER to fulfil both travel and slewing drive demands of crawler machinery.

3. GFT17T3B88-05

This compact integrated FINAL DRIVE serves as a streamlined Travel Assembly, equipped with 3-stage planetary reduction at ratio 88 and a built-in valve block marked by custom code 05. It is mainly applied to mini excavators and small crawler equipment, and can be assembled with a miniature SWING REDUCER for light mobile construction machines.

4. GFT17T2B45-3 (full original model: GFT17T2B45-33)

A light-duty 2-stage planetary FINAL DRIVE configured as a high-speed Travel Assembly, featuring a reduction ratio of 45 for faster travelling speed and simplified valve setup coded 33. It is ideal for light crawler carriers and crawler garden machinery, and can be combined with a mini SWING REDUCER for an integrated power arrangement.
