Manufactured by Huizhou Antenk Electronics Co., Ltd, the ABT50 series 2.0mm pitch 90 degree offset DIP male battery connector is designed to deliver stable high current power transmission and reliable signal connection for battery powered electronic equipment. This product supports pin configurations ranging from 3 pins to 12 pins, adopting high performance Nylon 9T insulator that complies with UL94V 0 flame retardant standard. The contact material is phosphor bronze, with optional surface treatments including gold over nickel plating and tin plating to meet anti oxidation and high conductivity requirements. It features a rated continuous current of 7A and instantaneous current of 10A, 500V dielectric withstand voltage, minimum insulation resistance of 100MΩ and maximum contact resistance of 30mΩ, maintaining stable performance within the operating temperature range from minus 40 degrees Celsius to 105 degrees Celsius. Equipped with positioning boss structure, the connector effectively prevents reverse assembly and ensures accurate PCB mounting. Our complete production process covers independent precision mold development, high speed terminal stamping, high temperature resistant plastic injection molding, anti corrosion electroplating, automatic assembly and strict electrical reliability testing in professional laboratories. Imported Taiwan high speed punching machines and Japanese precision injection molding equipment guarantee all dimensional parameters are controlled within strict tolerances to match standard PCB layout.

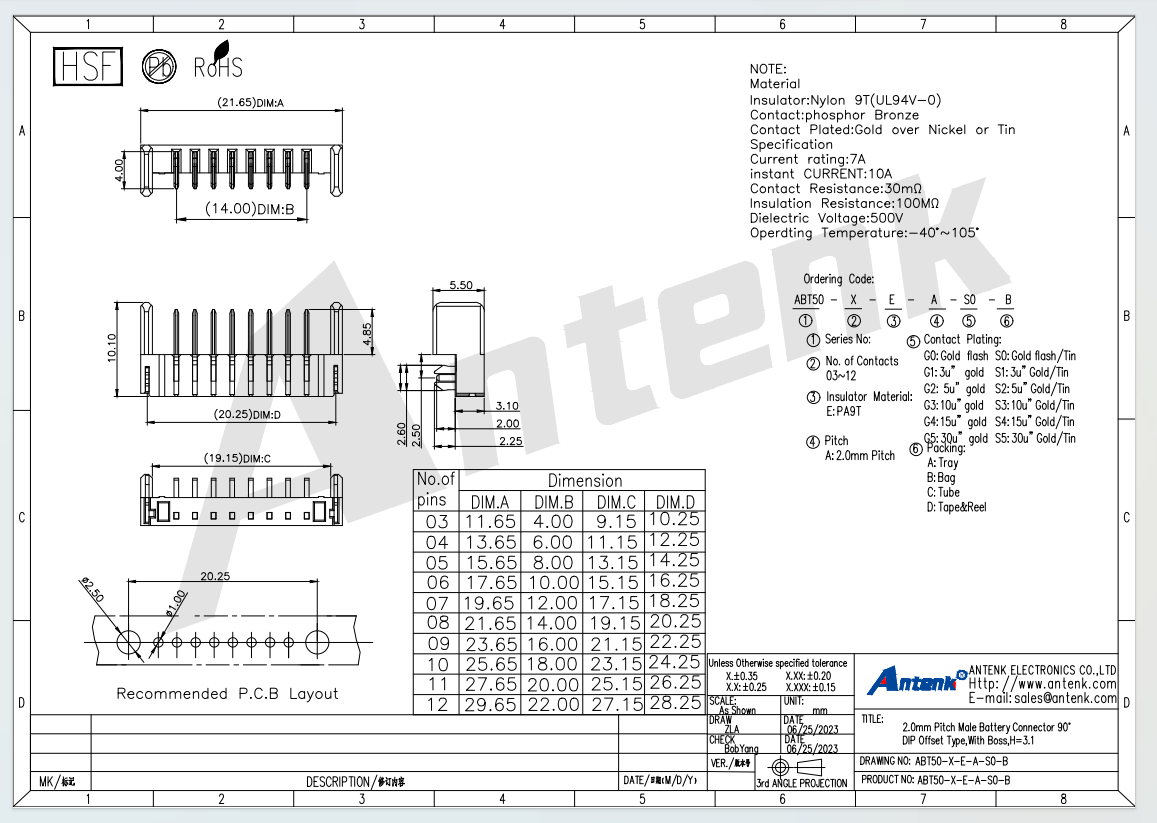

This offset right angle DIP battery connector adopts through hole wave soldering installation. Operators align the positioning boss with reserved holes on the PCB according to the official recommended layout, insert pins into the circuit board and complete wave soldering to fix the connector firmly, then mate with the matching female battery connector to realize stable power circuit connection. It is widely applied in industrial control modules, portable smart devices, digital household appliances, automotive electronic accessories, communication power supply equipment and precision testing instruments. During installation, users must avoid excessive soldering temperature and prolonged heating time to prevent insulator deformation, strictly follow the rated electrical parameters to avoid overload damage, and store unused connectors in dry sealed environment to protect phosphor bronze contacts from oxidation. All products comply with EU RoHS and REACH environmental regulations, most specifications obtain UL certification numbered E472792, and our factory has passed ISO9001, ISO14001 and IATF16949 quality management certifications, with tray bag tube and tape reel multiple packaging options to fit automated mass production.
Compared with other connector manufacturers, Antenk owns more than 250 sets of self developed plastic molds and 180 sets of precision hardware terminal molds, supporting flexible customization of pin number, plating type and packaging mode for this battery connector series. Our 10000 square meter production base with 250 professional employees is equipped with over 180 automatic assembly machines and 20 sets of professional testing devices, ensuring stable product consistency and large batch delivery capacity. As an enterprise certified with Guangdong Famous Trademark qualification, more than 70 percent of our connectors are exported to global markets. Our multi stage incoming, in process and finished product inspection system provides excellent high temperature resistance and anti misinsertion performance, effectively reducing power connection failure risks and establishing long term trusted cooperative partnerships with customers across Europe, America, Southeast Asia and other international regions.
