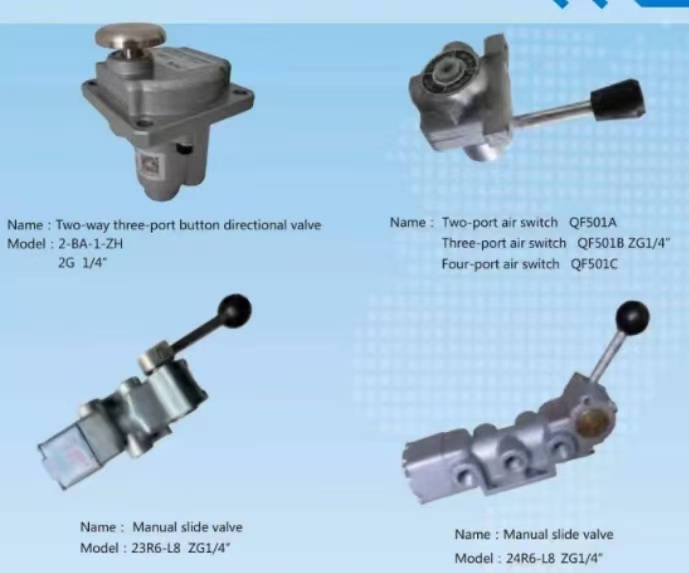

Two-way three-port button directional valve

Two-way three-port button directional valve

3 week ago

0 0

Ningbo Hengnuo Hydraulic Drive Co.,Ltd

 4 year year

Product details

Core Function and Structure

1. Two-way Three-port

• Two-way: The valve supports fluid flow in two opposite directions, making it suitable for systems requiring bidirectional control (e.g., pneumatic circuits, hydraulic systems).

• Three-port: The valve features three interfaces (inlet, outlet, exhaust/return port), enabling fluid path switching (e.g., charging, exhausting, pressure holding).

2. Button Directional Valve

• Operated via manual button pressing to shift the valve spool position, offering intuitive operation without external power (e.g., electromagnetic actuation).

• Ideal for scenarios requiring rapid manual intervention (e.g., emergency stops, mode switching).

Model Breakdown (2-BA-1-ZH)

1. 2: May indicate the valve series or category (e.g., second-generation product, specific application scenario).

2. BA: Likely represents button actuation (Button Actuation) or a manufacturer/
brand code.

3. 1: Could denote valve port size (e.g., DN1, 1/4-inch) or functional grade.

4. ZH: May signify additional features (e.g., explosion-proof design, special sealing materials) or mounting type (e.g., panel-mounted, pipe-connected).

Typical Applications

1. Pneumatic Control Systems: Used to control cylinder extension/retraction or pneumatic gripper clamping/releasing.

2. Hydraulic Equipment: Switches oil paths in small hydraulic systems (e.g., machine tool fixtures, lifting platforms).

3. Automation Devices: Serves as a manual control unit for semi-automated operations when integrated with PLCs or sensors.

4. Industrial Safety: Enables rapid fluid supply cutoff via button press during emergencies (e.g., gas leak response).

Technical Features and Advantages

1. Compact Design: Small footprint, suitable for space-constrained installations.

2. Simple Operation: Button-based design minimizes misoperation risks and requires no specialized training.

3. Instant Response: Manual actuation ensures zero delay, ideal for time-critical applications.

4. High Reliability: Mechanical structure eliminates electrical failure risks, reducing maintenance costs.

Selection and Usage Considerations

1. Port Compatibility: Verify valve port sizes (e.g., G1/4, NPT1/8) match the piping system.

2. Pressure Rating: Ensure the valve’s rated pressure meets system requirements (e.g., below 1.0 MPa).

3. Fluid Compatibility: Select appropriate sealing materials (e.g., NBR, FKM) based on the medium (air, water, hydraulic oil).

4. Environmental Adaptability: For outdoor or humid environments, choose models with higher protection ratings (e.g., IP65).
