2.0mm Pitch Male Battery Connector 90

4 week ago

0 0

HuiZhou Antenk Electronics Co., LTD

 5 year year

Product details

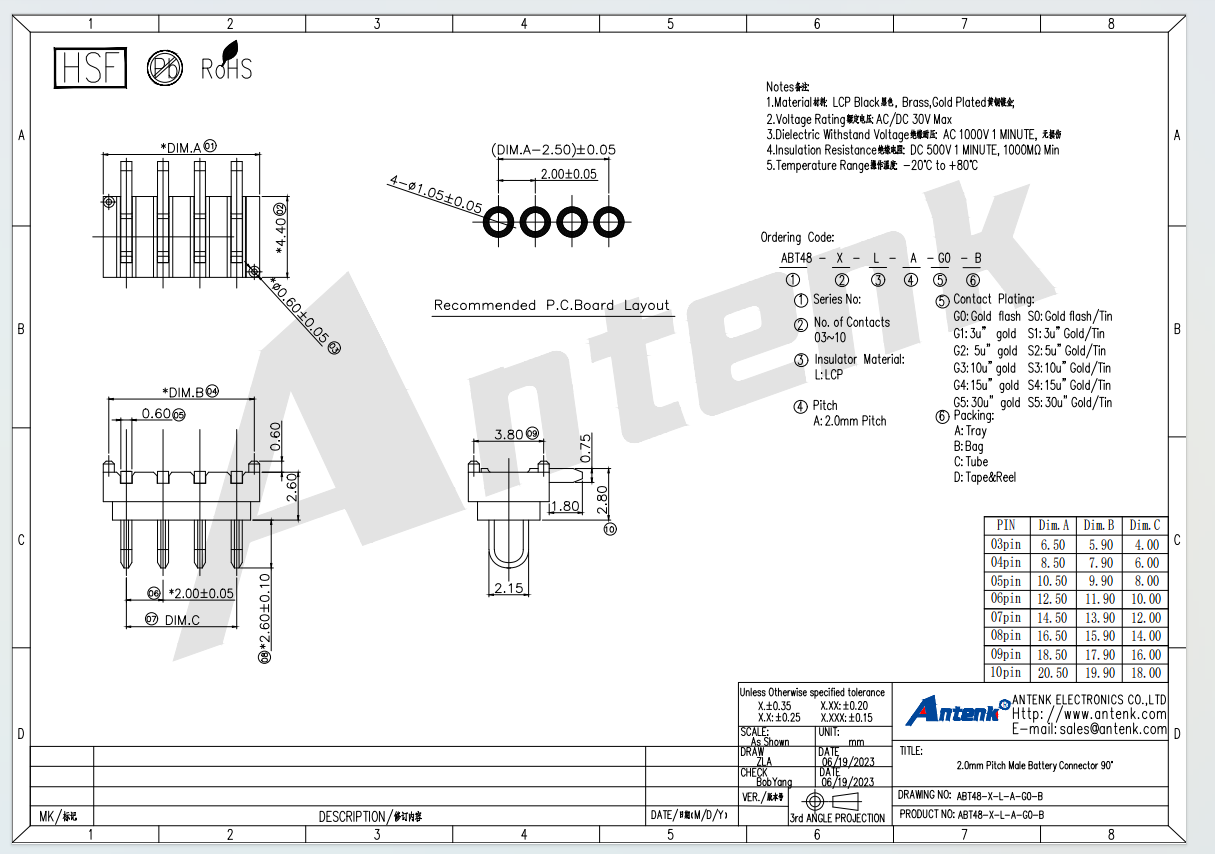

Manufactured by Huizhou Antenk Electronics Co., Ltd, the ABT48 series 2.0mm pitch 90 degree male battery connector provides stable low voltage power and signal interconnection for compact battery-operated electronic devices. This connector covers pin specifications from 3 pins to 10 pins, adopting black high-performance LCP insulator material with brass contacts finished with various gold plating options such as gold flash and selective gold plating. It carries a rated voltage of 30V AC DC, withstands 1000V AC voltage within one minute, and features minimum insulation resistance of 1000MΩ, operating steadily between minus 20 degrees Celsius and 80 degrees Celsius. Our complete standardized production workflow consists of independent precision mold development, high-speed brass terminal stamping, high temperature resistant LCP injection molding, anti-oxidation gold electroplating, automatic assembly and full electrical reliability testing in professional laboratories. Equipped with Taiwan high-speed punching machines and Japanese precision injection molding equipment, all key dimensional parameters are strictly controlled within tiny tolerances, and the compact miniaturized structure saves valuable PCB space for thin and small electronic products.

This right angle male battery connector adopts through-hole DIP wave soldering installation. Operators place the connector onto printed circuit boards following the official recommended PCB layout, fix pins via automatic wave soldering equipment, then match it with corresponding female battery connectors to form complete power supply circuits. It is widely applied in portable smart devices, digital cameras, memory backup modules, consumer remote controls, small medical testing equipment, communication wearable gadgets and industrial miniature control instruments. During operation, users must strictly comply with the 30V voltage limit to avoid breakdown damage, control soldering temperature reasonably to prevent LCP insulator deformation, and store unused connectors in dry sealed packaging to stop brass terminals from oxidation. All products comply with EU RoHS and REACH environmental regulations, most specifications obtain UL certification numbered E472792, and our factory holds ISO9001, ISO14001 and IATF16949 quality certifications, supplying tray, bag, tube and tape reel packaging to fit different automated production demands.

Compared with other connector manufacturers, Antenk owns more than 250 sets of self-developed plastic molds and 180 sets of precision brass stamping molds, supporting flexible customization of pin count and contact plating type for this miniature battery connector series. Our 10000 square meter production base with 250 professional employees is equipped with over 180 automatic assembly machines and 20 sets of professional testing instruments, ensuring consistent product quality and fast delivery for large batch orders. As a Guangdong Famous Trademark certified enterprise, more than 70 percent of our connectors are exported to global markets. Our multi-stage incoming, in-process and finished product inspection system delivers outstanding heat resistance and stable conductive performance, effectively reducing miniature circuit disconnection faults and establishing long-term trusted cooperative partnerships with customers across Europe, America, Southeast Asia and other international regions.
