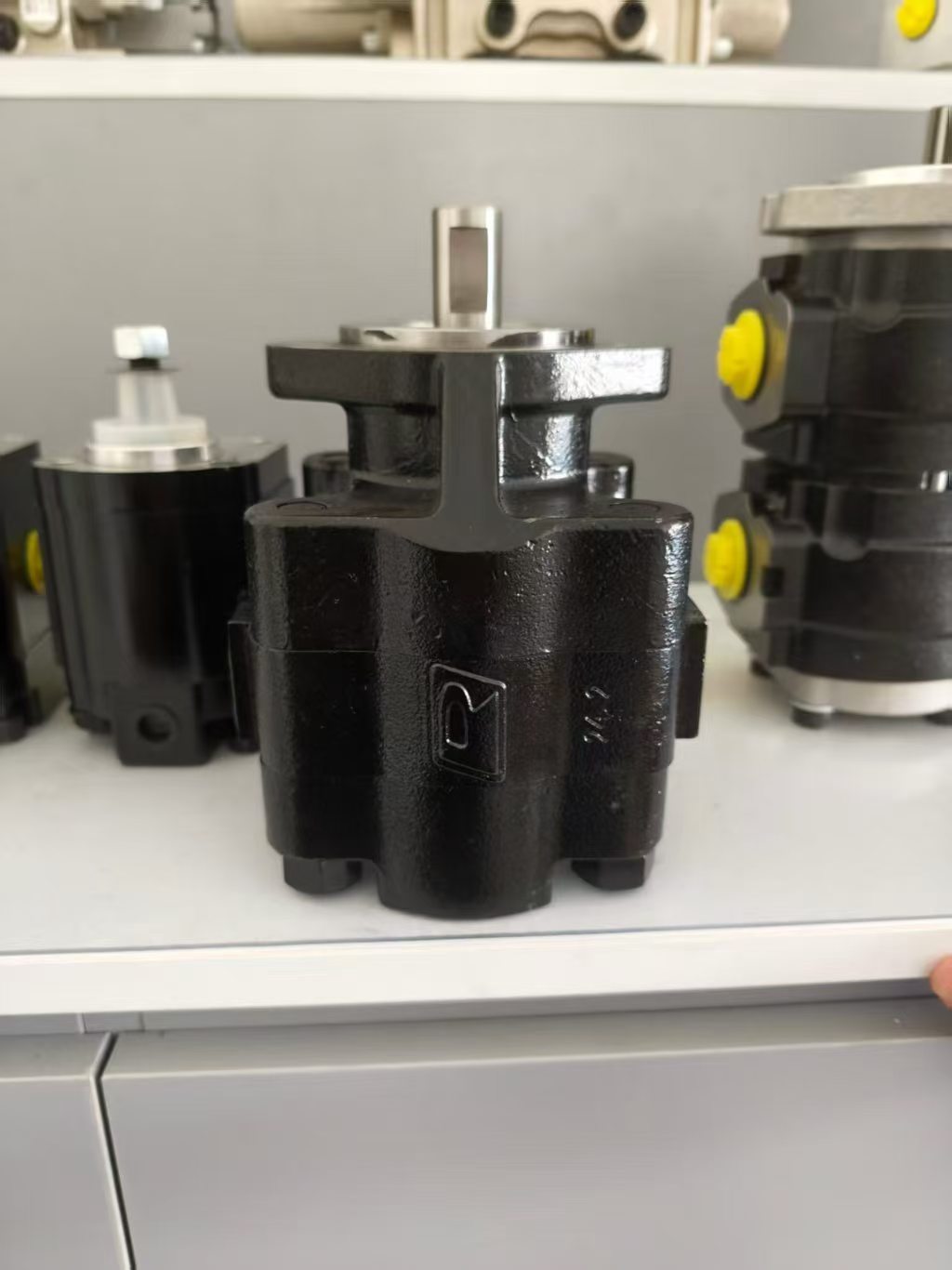

Parker 620 Series Fixed Displacement Gear Pumps

Parker 620 Series Fixed Displacement Gear Pumps

4 week ago

0 0

Ningbo Hengnuo Hydraulic Drive Co.,Ltd

 4 year year

Product details

Parker 620 Series Fixed Displacement Gear Pumps adopt an interlocked two-piece cast iron construction, delivering extremely high volumetric efficiency and power density. This makes the 600 Series an ideal solution for mobile engineering machinery equipped with hydraulic systems demanding high energy efficiency and superior performance. Widely deployed in harsh working conditions such as construction and material handling, the 600 Series is available in single or multiple pump sections with pressure relief and anti-cavitation functions.

Features & Benefits

- Two-piece interlocked valve body design for high efficiency and high-pressure operation

- Cast iron pumping assembly for robust durability

- Journal bearings for extended service life

- Pressure-balanced thrust plates to enhance efficiency

- Multi-section configurations available

Applications

- Fan drive pumps

- Mower pumps

- Steering and brake pumps

- Winch pumps

Technical Specifications

- Displacement range: 19 to 50 cc

- Maximum working pressure: 275 bar (4,000 psi)

- Maximum rotational speed: 3,500 rpm

- Available in clockwise (CW), counterclockwise (CCW) and bi-rotational versions

- SAE standard shafts, flanges and porting configurations optional

- Optional valve assemblies: pressure relief, anti-cavitation, cross-port relief, solenoid unloading and proportional relief valves
