5.08 mm Pin Header Single Row Straight Type Connector

4 week ago

0 0

HuiZhou Antenk Electronics Co., LTD

 5 year year

Product details

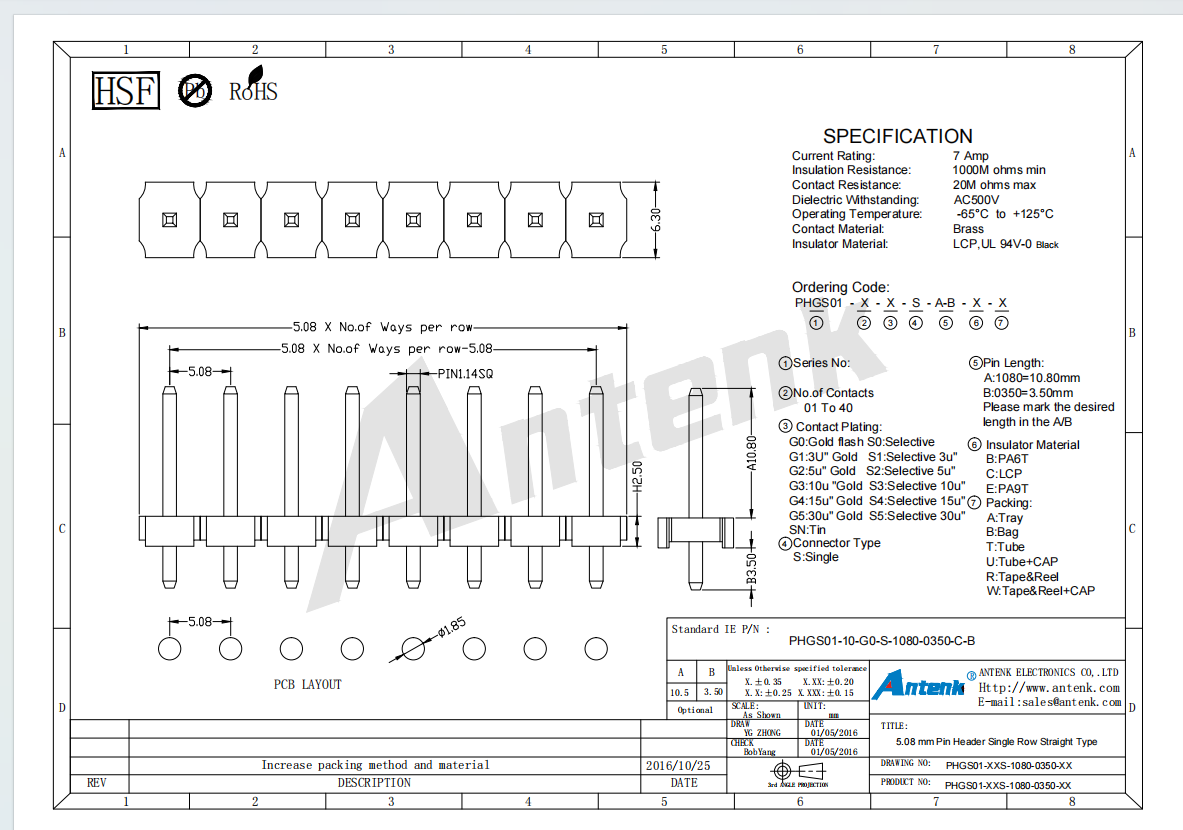

Manufactured by Huizhou Antenk Electronics Co., Ltd, the PHGS01 series 5.08mm single row straight pin header is a standard PCB interconnection component built for high-current power and signal transmission. Per drawing specifications, this single row header supports contact quantities ranging from 01 pin to 40 pins. The insulator can be selected from PA6T, LCP and PA9T materials with black UL94V-0 flame retardant grade, while square brass pins are available with diverse plating options including gold flash, multi-thickness selective gold plating and pure tin plating. Its core electrical parameters include 7A rated current, minimum 1000M ohms insulation resistance and maximum 20m ohms contact resistance, enduring 500V AC dielectric withstand voltage and operating stably within an ultra-wide temperature span of -65°C to +125°C. Two standard pin tail lengths 3.5mm and 10.8mm are offered to fit different PCB stacking heights. Our complete standardized manufacturing workflow covers independent precision mold development, high-speed brass terminal stamping, high-temperature resistant plastic injection molding, anti-oxidation surface electroplating, automatic assembly and full electrical aging testing. Equipped with Taiwan high-speed punching machines and Japanese precision injection molding equipment, all PCB layout dimensions are strictly controlled within unified tight tolerances for stable through-hole wave soldering.

This straight single row pin header provides abundant packaging choices including tray, bag, tube, tube with cap, tape reel and tape reel with cap to match manual assembly and fully automatic DIP production lines. Operators solder the straight pin tails onto printed circuit boards following the official PCB layout drawing, then mate the header with matching female wafer sockets to form complete power and signal transmission circuits. It is widely applied in industrial control racks, communication power adapters, new energy equipment, automotive electronic modules, digital display devices, household intelligent appliances and high-power precision testing instruments. During assembly and operation, users must choose matched pin length to fit PCB thickness, control soldering temperature reasonably to avoid plastic insulator deformation, and store unused pin headers in dry sealed packaging to protect brass pins from oxidation. All products comply with EU RoHS and REACH environmental regulations, most specifications obtain UL certification numbered E472792, and our factory holds ISO9001, ISO14001 and IATF16949 automotive quality management certifications.

Compared with other connector manufacturers, Antenk owns more than 250 sets of self-developed plastic molds and 180 sets of precision brass stamping molds, supporting flexible customization of pin count, insulator material, pin plating thickness and packaging mode for this 5.08mm single row pin header series. Our 10000-square-meter production base with 250 professional employees is equipped with over 180 automatic assembly machines and 20 sets of professional testing instruments, ensuring consistent batch quality and fast delivery for large-volume orders. As a holder of Guangdong Famous Trademark qualification, more than 70 percent of our pin headers are exported to global markets. Our multi-stage incoming, in-process and finished product inspection system delivers outstanding high and low temperature resistance as well as stable conductive performance, effectively solving poor contact and overheating problems under heavy load and establishing long-term trusted cooperative partnerships with customers across Europe, America, Southeast Asia and other international regions.
