2.50mm Right Angle SMT Wafer Connector

4 week ago

0 0

HuiZhou Antenk Electronics Co., LTD

 5 year year

Product details

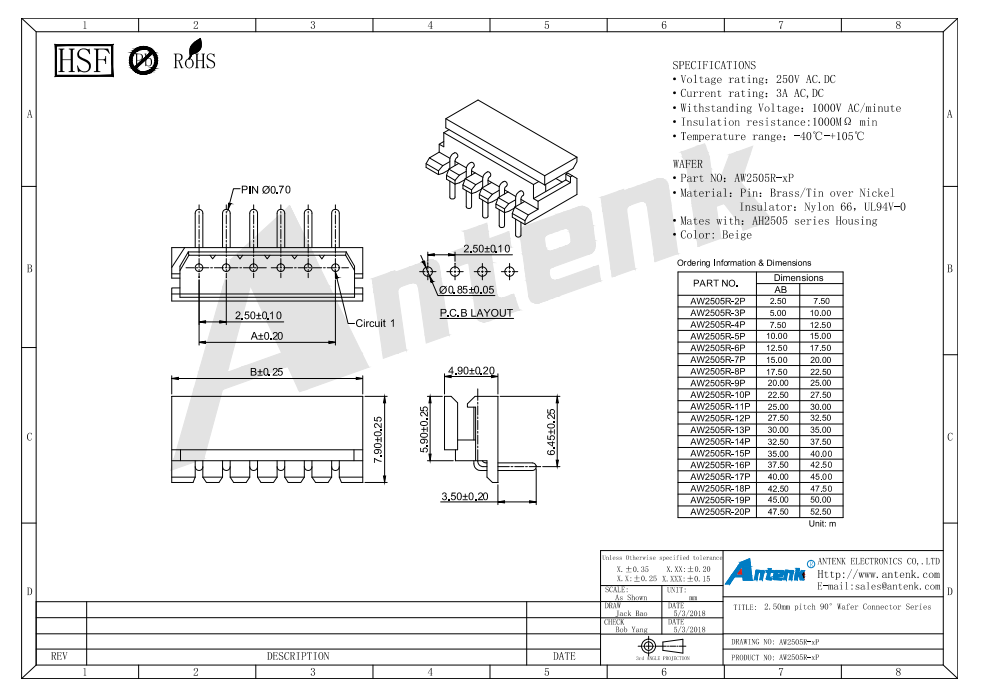

Manufactured by Huizhou Antenk Electronics Co., Ltd, the AW2505R series 2.50mm pitch 90 degree wafer connector is a professional SMT interconnection component for low-power signal transmission, compatible with matching AH2505 series housings. Per drawing specifications, this right angle wafer covers pin counts from 2P to 20P with unified 2.50mm pitch. The insulator adopts beige Nylon 66 material reaching UL94V-0 flame retardant standard, paired with 0.70mm diameter brass pins finished with tin over nickel plating to resist oxidation. It holds 3A AC DC rated current and 250V rated voltage, with minimum 1000MΩ insulation resistance and 1000V AC one-minute dielectric withstand capacity, operating reliably between minus 40 degrees Celsius and 105 degrees Celsius. Standard PCB layout dimensions are precisely controlled with small tolerances to match automatic SMD reflow soldering. Our complete production workflow includes independent precision mold development, high-speed brass terminal stamping, high-temperature Nylon injection molding, anti-corrosion tin nickel electroplating, automatic assembly and full electrical reliability testing. Imported Taiwan high-speed punchers and Japanese injection molding machines guarantee consistent dimensional accuracy for mass production.

This right angle SMT wafer connector supports tape reel packaging for fully automatic assembly lines. Operators place the connector onto printed circuit boards following the official PCB layout diagram and complete reflow soldering, then mate the wafer with corresponding male pin headers to form complete signal circuits. It is widely applied in industrial control small modules, communication signal boards, digital cameras, smart home appliances, portable storage devices, electronic toys and compact precision measuring instruments. During usage, users must strictly control reflow temperature curve to avoid nylon insulator deformation, operate within rated electrical parameters to prevent pin overheating, and store unused connectors in dry sealed bags to protect tin nickel plated brass pins from corrosion. All products comply with EU RoHS and REACH environmental standards, most specifications obtain UL certification numbered E472792, and our factory holds ISO9001, ISO14001 and IATF16949 quality management certifications.

Compared with other connector manufacturers, Antenk owns more than 250 sets of self-developed plastic molds and 180 sets of precision brass stamping molds, supporting flexible customization of pin quantities for this 2.50mm right angle wafer series. Our 10000-square-meter production base with 250 professional staff is equipped with over 180 automatic assembly machines and 20 sets of professional testing instruments, ensuring stable batch quality and fast delivery for large orders. As a Guangdong Famous Trademark certified enterprise, more than 70 percent of our wafer connectors are exported to global markets. Our multi-stage incoming, in-process and finished-product inspection system delivers stable elastic mating performance and excellent heat resistance, effectively reducing intermittent signal failure risks and building long-term trusted cooperative partnerships with clients across Europe, America, Southeast Asia and other international regions.
