2.54mm Dual Row Triple Contact Female Header

4 week ago

5 0

HuiZhou Antenk Electronics Co., LTD

 5 year year

Product details

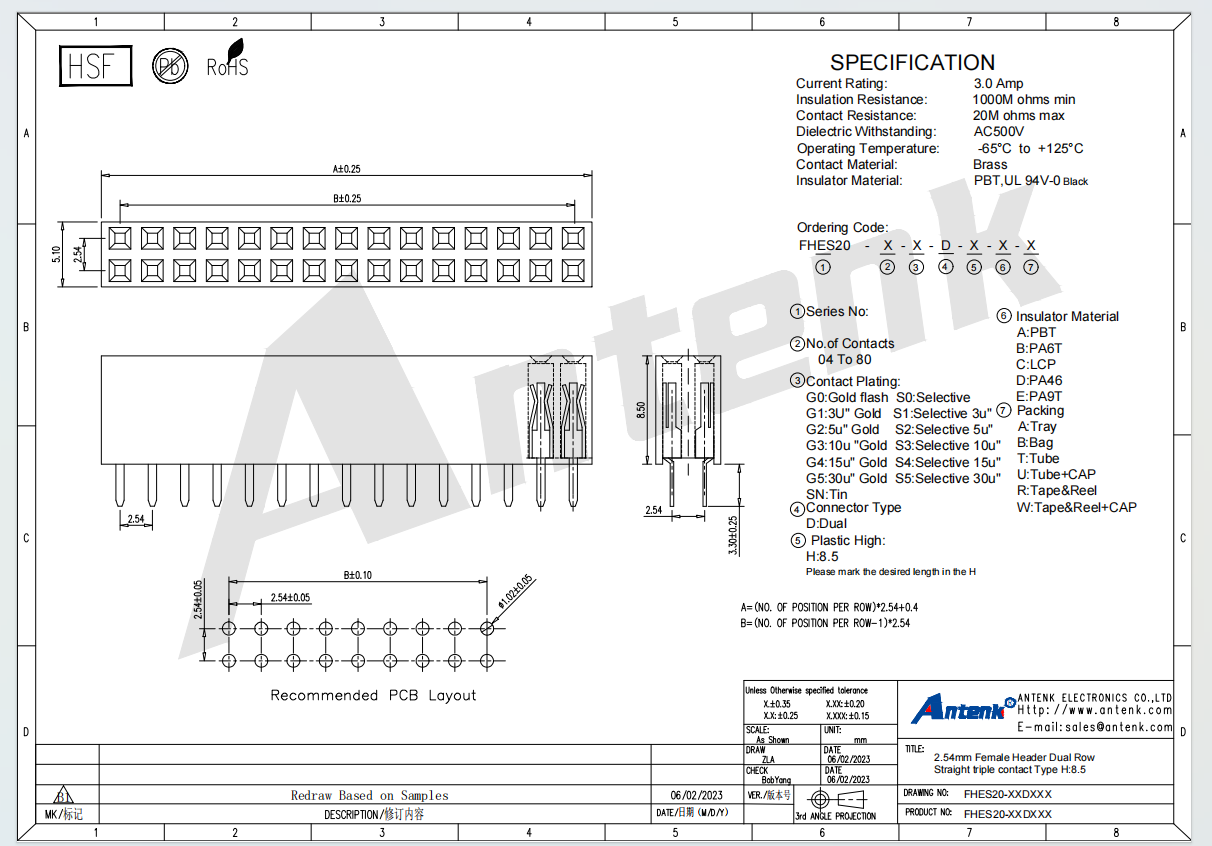

Manufactured by Huizhou Antenk Electronics Co., Ltd, the FHES20 series 2.54mm dual row straight female header with triple contact structure H8.5 is a reliable PCB interconnection component for signal and low power transmission, available with contact quantities ranging from 04 pins to 80 pins. Per drawing specifications, this socket features three independent contact clips for stable mating connection. The insulator offers optional materials including PBT, PA6T, LCP, PA46 and PA9T, with standard black PBT complying with UL94V-0 flame retardant grade. Brass contacts support tin plating, gold flash and multiple selective gold plating thicknesses to match different anti-oxidation and conductive requirements. Its electrical parameters cover 3.0A rated current, minimum 1000MΩ insulation resistance and maximum 20MΩ contact resistance, passing 500V AC dielectric withstand test and operating steadily in ultra-wide temperature from -65°C to +125°C. The fixed plastic height of 8.5mm meets standard PCB stacking space demands, and all PCB layout dimensions are controlled under unified tight tolerances for stable through-hole wave soldering. Our complete production workflow consists of independent precision mold development, high-speed brass terminal stamping, high-temperature plastic injection molding, anti-corrosion electroplating, automatic triple contact assembly and full electrical aging testing. Imported Taiwan high-speed punchers and Japanese precision injection molding machines guarantee consistent dimensional accuracy for mass production.

This dual row triple contact female header supplies multiple packaging options including tray, bag, tube, tube with cap, tape reel and tape reel with cap to fit manual and fully automatic DIP production lines. Operators solder straight pin tails onto printed circuit boards following the official PCB layout drawing, then mate the socket with matched dual row male pin headers to form complete circuit connection. It is widely deployed in industrial control modules, communication signal equipment, digital storage devices, automotive auxiliary electronics, smart household appliances and portable precision measuring instruments. During application, users must control soldering temperature curve properly to prevent insulator deformation, work within rated electrical limits to avoid contact overheating, and store unused connectors in dry sealed bags to protect brass contacts from oxidation. All products comply with EU RoHS and REACH environmental regulations, most specifications obtain UL certification numbered E472792, and our factory holds ISO9001, ISO14001 and IATF16949 quality management certifications.

Compared with other connector manufacturers, Antenk owns more than 250 sets of self-developed plastic molds and 180 sets of precision brass stamping molds, supporting flexible customization of pin count, insulator material and contact plating type for this triple contact female header series. Our 10000-square-meter production base with 250 professional employees is equipped with over 180 automatic assembly machines and 20 sets of professional testing instruments, ensuring consistent batch quality and fast delivery for large orders. As a Guangdong Famous Trademark certified enterprise, more than 70 percent of our connectors are exported to global markets. Our multi-stage incoming, in-process and finished product inspection system delivers outstanding vibration resistance brought by triple contact design, effectively reducing intermittent circuit failure risks and establishing long-term trusted cooperative partnerships with customers across Europe, America, Southeast Asia and other international regions.
