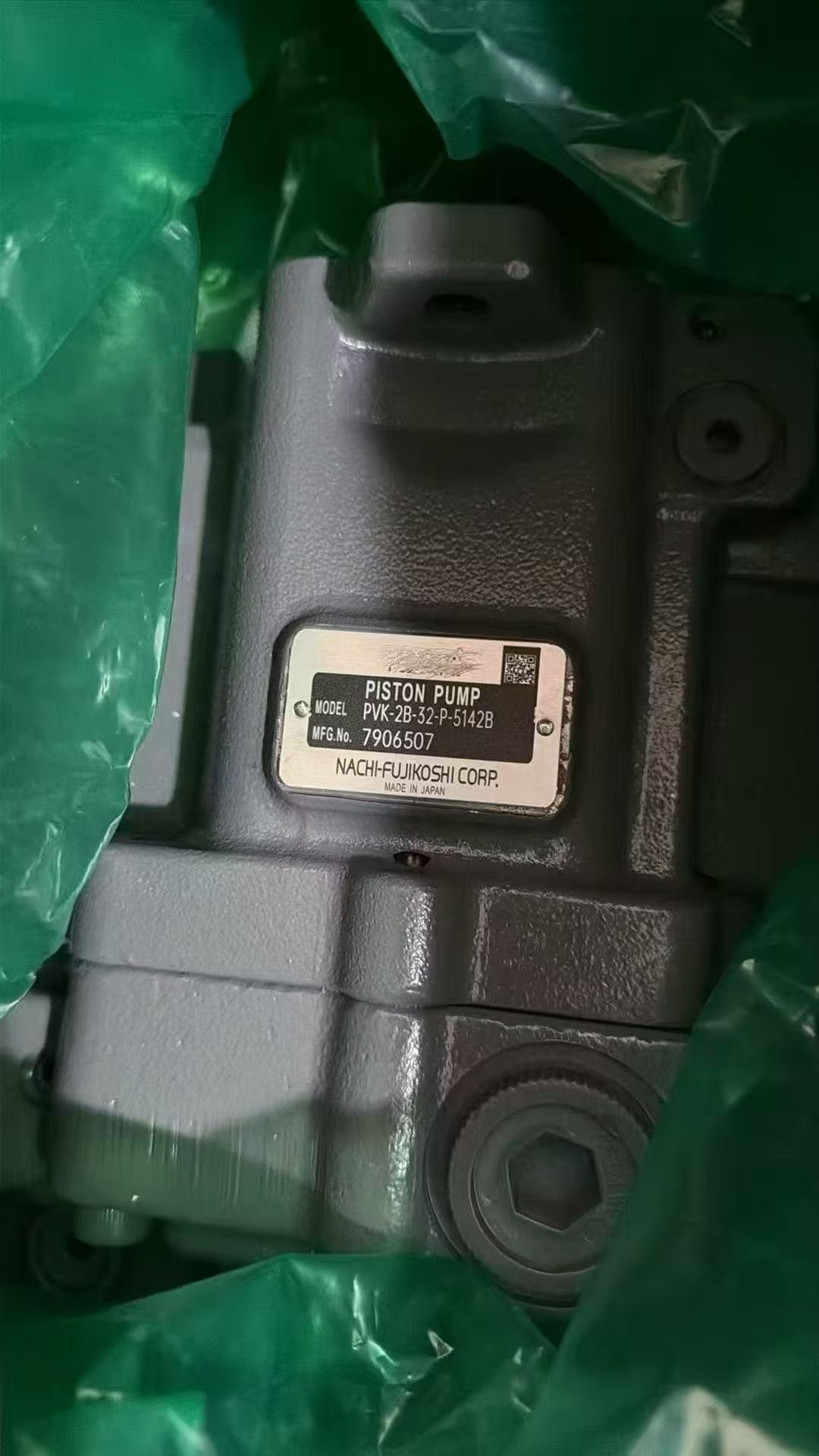

Hitachi 490-5A Fan Pump PVK-2B-32: A High-Performance Hydraulic Power Core
1. Product Positioning and Core Functions
The Hitachi 490-5A Fan Pump PVK-2B-32 is a specializedhydraulic pumpdesigned for heavy-duty construction machinery such as excavators. Classified as ahydraulic piston pump, its primary role is to provide stable and efficient power to the equipment'shydraulic system, ensuring rapid response and precise control of front-end attachments (e.g., buckets, booms).
2. Technical Specifications and Performance Parameters
• Model: PVK-2B-32
• Applications: Compatible with large excavators like the Hitachi ZX490LCH-5A, ideal for high-load operations in mining, earthmoving, and other demanding environments.
• Pressure and Flow Rate:
• Rated pressure: 350 bar (5,075 psi); peak pressure up to 420 bar (6,090 psi) for heavy-duty conditions.
• Flow range: Adjustable displacement enables dynamic matching of flow to load, minimizing energy waste.
• Speed and Efficiency:
• Rated speed: 1,800 rpm; supports maximum speeds exceeding 1,800 rpm for high-speed drive compatibility.
• Volumetric efficiency: ≥95%, ensuring minimal energy loss during mechanical-to-hydraulic power conversion and reducing system heat generation.
3. Technical Advantages
• Swashplate Axial Piston Design:
• Pistons are arranged parallel to the drive shaft, with displacement adjusted via swashplate inclination for a compact, reliable structure.
• Pressure-balanced technology reduces internal stress, extending service life and lowering maintenance costs.
• Low Noise and Long Lifespan:
• Precision timing minimizes piston motion impact, achieving noise levels near or below those of the drive motor for enhanced operator comfort.
• Heavy-duty bearings and shaft extensions reduce internal deformation and wear, significantly outlasting comparable products.
• Modularity and Flexibility:
• Supports multi-pump configurations, enabling integration with fixed or variable displacement pumps for complexhydraulic systemlayouts.
• Offers multiple control modes (e.g., pressure compensation, load sensing) for dynamic flow matching with system demands.
• Media Compatibility:
• Compatible with petroleum-based hydraulic oils, synthetic hydraulic fluids, water-containing hydraulic liquids, and phosphate ester hydraulic fluids to suit diverse operating conditions.
4. Role in the Hydraulic System
As the power source of thehydraulic system, the PVK-2B-32 optimizes performance through:
• Precision Control: Adjustable displacement enables precise matching of flow and pressure, enhancing equipment operational accuracy.
• Energy Efficiency: High volumetric efficiency reduces energy loss, lowering system heat and extending hydraulic fluid lifespan.
• Reliability: High-pressure design and pressure-balancing technology ensure stable operation under heavy loads, minimizing downtime.
5. Typical Application Scenarios
• Mining Operations: Provides sustained, reliable power for excavators in harsh mining environments, supporting high-intensity digging and loading.
• Earthmoving Projects: Enhances productivity for large excavators in rapid, precise earth excavation and material handling.
• Heavy Equipment Integration: Serves as a corehydraulic pumpcomponent in heavy machinery requiring high-pressure, large-flowhydraulic systems.
6. Maintenance and Service Recommendations
• Regular Inspections: Monitor hydraulic fluid levels and quality; replace fluid and filters periodically to maintain system cleanliness.
• Temperature Management: Avoid prolonged high-temperature operation to prevent hydraulic fluid oxidation and seal degradation.
• Professional Repairs: In case of leaks or abnormal noise, seek certified technicians for inspection and repair to avoid unauthorized disassembly.
