1、Product Description

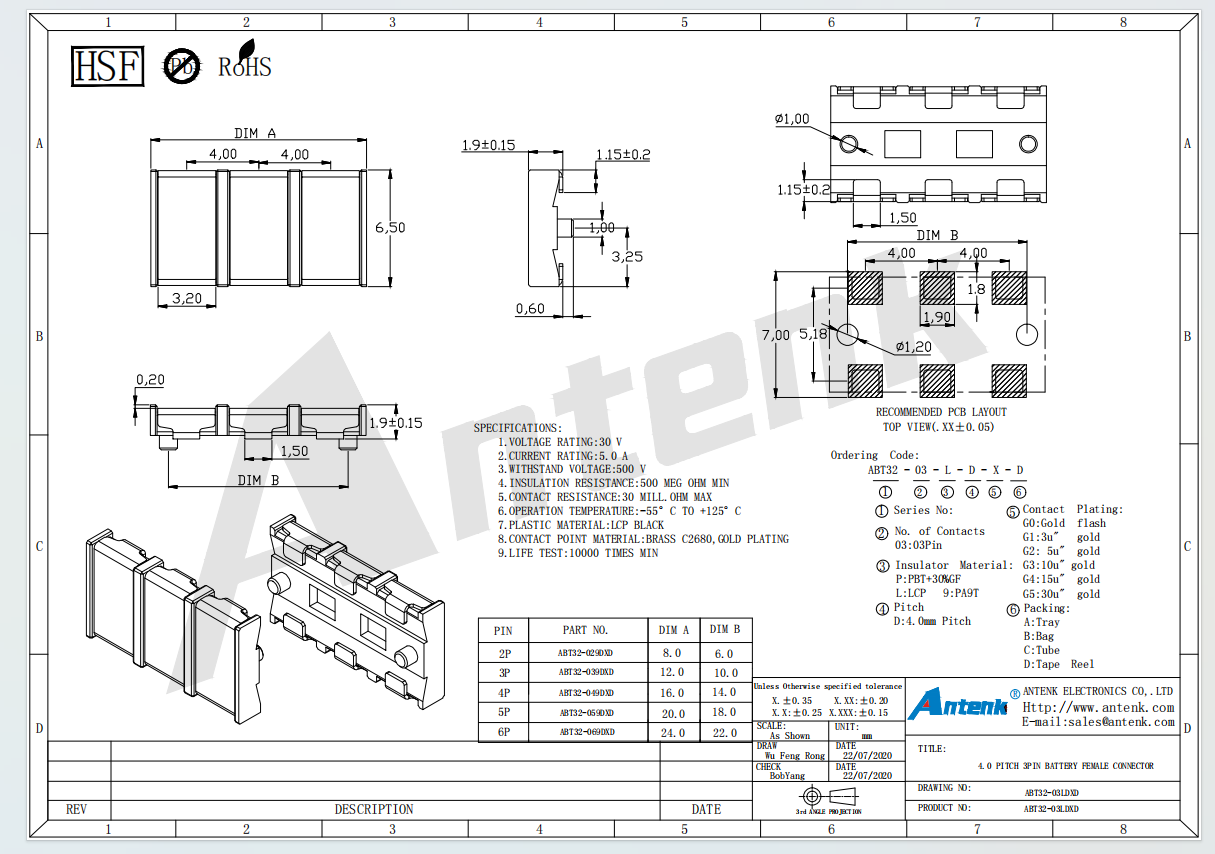

Manufactured by Huizhou Antenk Electronics Co., Ltd, the ABT32 series 4.0mm pitch battery female connector is a surface mount power connection component dedicated to stable power supply between batteries and main circuit boards. According to drawing specifications, this connector supports pin counts ranging from 2 pins up to 6 pins with fixed 4.0mm pitch. The insulating housing can be selected from pure LCP and glass filled PBT materials, both conforming to UL94V-0 flame retardant standard. Contact terminals are stamped from C2680 brass with multiple grades of gold plating and gold flash options to lower contact resistance and resist oxidation. Its electrical performance includes 30V rated voltage and 5.0A rated current, minimum 500 megaohms insulation resistance and maximum 10 milliohms contact resistance, capable of withstanding 500V AC dielectric voltage. It operates reliably from minus 55°C to +125°C and passes a minimum 10000 times mating life test to ensure long-term service durability. The SMT soldering structure matches standardized PCB layout for automatic reflow soldering assembly. Our complete production workflow consists of independent precision mold development, high-speed brass terminal stamping, high temperature resistant plastic injection molding, anti-corrosion gold electroplating and automatic assembly. Imported Taiwan high-speed punching machines and Japanese precision injection molding equipment strictly control all dimensional tolerances for consistent mass production quality.
This SMT battery female connector provides tray, bag, tube and tape reel four packaging modes to adapt to manual assembly and fully automatic SMT patch production lines. Operators align the SMT solder feet with designated PCB pads following the official PCB layout drawing and complete reflow soldering fixation, then buckle matched battery male terminals into the elastic contact clips to form continuous power transmission loops. It is widely applied in wearable smart devices, Bluetooth audio equipment, portable power modules, electronic toys, medical miniature detection devices and household intelligent sensor hardware. During installation and daily use, users must strictly follow the reflow temperature curve to prevent plastic insulator thermal deformation, avoid forced mismating to protect elastic brass contacts from permanent fatigue damage, and store unused connectors in dry sealed packaging to avoid terminal rusting and oxidation. All products comply with EU RoHS and REACH environmental regulations, most specifications obtain UL certification numbered E472792, and our factory has passed ISO9001, ISO14001 and IATF16949 automotive industry quality management certifications.
Compared with other connector manufacturers, Antenk owns more than 250 sets of self-developed plastic molds and 180 sets of precision brass stamping molds, supporting flexible customization of pin quantity, insulator material and contact plating thickness for this battery connector series. Our 10000-square-meter production base with 250 professional employees is equipped with over 180 automatic assembly machines and 20 sets of professional testing instruments, guaranteeing stable batch product quality and fast delivery for large bulk orders. As an enterprise holding Guangdong Famous Trademark qualification, more than 70 percent of our power connectors are exported to global overseas markets. Our multi-stage incoming, in-process and finished product inspection system greatly improves high and low temperature resistance and mechanical service life, effectively solving unstable power supply caused by loose battery connection and establishing long-term trusted cooperative partnerships with customers across Europe, America, Southeast Asia and other international regions.
2、FAQ
Q: How many packaging do you have?
A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.
Q: Can you do our own packaging?
A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.
Q: How many different types of products your company manufactures?
A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.
