1. Overall Product Overview

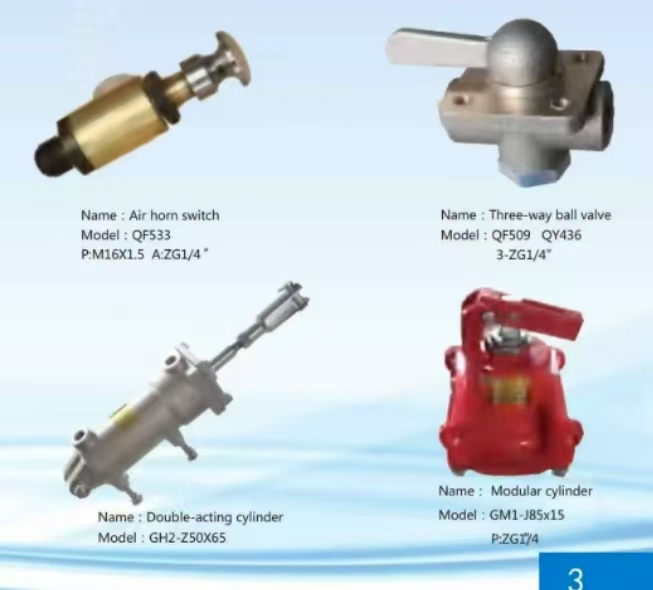

Both items are compact manual three-way plug-type ball valves specially designed for construction machinery, pneumatic and hydraulic systems. They feature cast brass bodies, base plate mounting and manual lever 90° rotation for flow path switching. They are mainly used to divert, split and reverse the flow of clean media such as compressed air, low-pressure hydraulic oil and clear water, and widely fitted to forklifts, loaders, sanitation trucks, agricultural machinery, pneumatic jigs and small hydraulic circuit switching assemblies. They are classic domestic small reversing valves for pneumatic and hydraulic applications.
- QF509: Standard L-port 2-position three-way plug valve, the most commonly equipped stock model
- QY436: Upgraded three-way ball valve with identical installation dimensions and optimized sealing structure; higher pressure resistance and wear resistance, enabling direct on-site replacement for QF509
2. Model Definition
QF509
1. QF: Series code for small pneumatic/hydraulic switching plug valves
2. 509: Original factory design serial number (matching old national standard configurations for construction machinery OEM fitting)
QY436
1. QY: Series code for hydraulic oil circuit reversing ball valves
2. 436: Structural serial number for upgraded modified version, with identical mounting hole layout to replace QF509
3. Structure & Materials
1. Valve Body: Precision cast forged brass, integrated molding with excellent corrosion and vibration resistance for vehicle-mounted construction machinery working conditions
2. Valve Core: Tapered plug core with surface hardening treatment (traditional plug structure, different from spherical ball core)
3. Sealing Assembly: Composite seals of PTFE and oil-resistant rubber, achieving zero internal leakage and dust resistance
4. Operating Component: Integrated metal lever with mechanical positioning notches for 90° indexed rotation to prevent accidental actuation
5. Mounting Type: Square flange base secured by 4 bolts, embedded plate mounting to save piping layout space
6. Port Type: Female threaded pipe connections (standard G1/4 and optional G3/8 threads available)
7. Net Weight: Approx. 0.3kg, compact mini-sized design
4. Key Technical Specifications (General & Differentiated Parameters)
Item QF509 QY436 Upgraded Version
Structure Type L-port three-way plug valve L-port three-way ball valve with reinforced sealing
Applicable Media Compressed air, hydraulic oil, diesel fuel, clear water Compressed air, hydraulic oil, antifreeze, mild corrosive coolant
Working Pressure 0~1.0MPa, Max Burst Pressure: 1.2MPa 0~1.6MPa, Max Burst Pressure: 2.0MPa
Operating Temperature -20℃ ~ +80℃ -30℃ ~ +100℃
Operation Mode Manual 90° indexed lever rotation Lever with damping positioning for smoother rotation
Nominal Bore DN6 (standard) DN6 same bore size
Port Thread Main G1/4, G3/8 optional Interchangeable G1/4 & G3/8 threads
Leakage Class Minimal residual leakage under dry seal Precision zero-leakage sealing
Mechanical Service Life ≥150,000 switching cycles ≥300,000 switching cycles
5. Working Principle (L-type Flow Path)
Equipped with 3 fluid ports: P (Inlet), A (Outlet 1), B (Outlet 2)
1. Lever home position: P connects to A, port B fully closed
2. Lever rotated 90° to locked position: P connects to B, port A fully closed
It only realizes one-in two-out alternative switching (select either passage), and cannot connect all three ports simultaneously. Ideal for switching one air/hydraulic supply to alternately feed two actuators.
6. Product Features
QF509 (Classic Standard Model)
1. Cost-effective, mass stocked as OEM original fitting for forklifts and modified agricultural machinery
2. Brass valve body withstands vehicle vibration, suitable for open-air and dusty construction sites
3. Simple structure for easy maintenance with replaceable internal seal kits
4. Pure mechanical manual operation; functional without air or power supply, operable under power/air failure
QY436 (Upgraded Replacement Model)
1. Enlarged sealing contact surface to eliminate air/oil seepage under high pressure, maintenance-free for long-term operation
2. Low-temperature anti-hardening seal formulation, preferred for construction machinery in northern cold regions
3. Fully replicates QF509 base mounting holes and pipe threads for direct replacement without piping modification
4. Anti-ejection valve stem explosion-proof structure with higher safety for heavy-duty bumpy working conditions
7. Main Application Scenarios
1. Construction Machinery: Forklift brake air circuit switching, loader auxiliary cylinder hydraulic circuit changeover, sanitation sprinkler truck water circuit reversing
2. Agricultural Equipment: Harvester hydraulic circuit switching, pneumatic control changeover for farm dump trucks
3. Industrial Pneumatics: Dual-station cylinder air supply switching on production lines, two-way air circuit changeover for pneumatic jigs
4. Modified Equipment: Oil tanker hydraulic reversing, manual bypass switching for small hydraulic power units
8. Selection & Replacement Instructions
1. Conventional low-pressure pneumatic circuits: Adopt QF509 for lower procurement cost and sufficient performance
2. Hydraulic oil circuits, high-pressure service, frequent switching or low-temperature environments: Choose upgraded QY436 to replace QF509
3. Identical base mounting dimensions and port threads allow unrestricted mutual replacement between the two models
