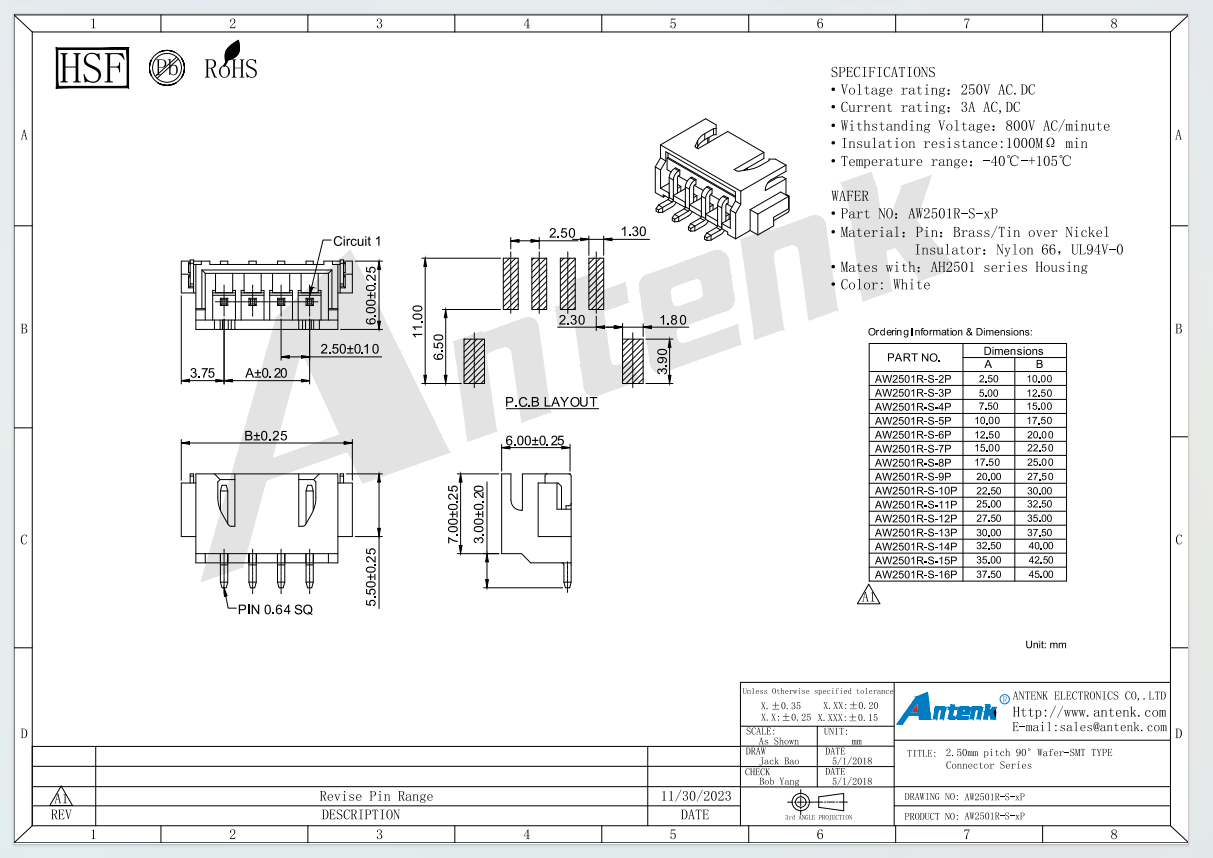

Manufactured by Huizhou Antenk Electronics Co., Ltd, the AW2501R series 2.50mm pitch 90 degree SMT wafer connector is a surface-mount wire-to-board connector designed for compact circuit signal and low-current power transmission, compatible with AH2501 series crimp housings for complete wiring assembly. Per drawing specifications, this product supports pin quantities ranging from 2 pins up to 16 pins with standard 2.50mm center pitch. The insulator is molded from white Nylon 66 material conforming to UL94V-0 flame retardant grade, while square 0.64 brass pins adopt tin over nickel double-layer plating to strengthen soldering adhesion and anti-oxidation ability. Its electrical specifications include 250V rated voltage and 3A rated current, minimum 1000MΩ insulation resistance and 800V AC one-minute dielectric withstand voltage. It operates stably in a wide temperature range from minus 40°C to 105°C, and the right-angle bent SMT structure greatly reduces vertical occupation on PCB boards to fit slim electronic device layout. Our complete production workflow includes independent precision mold development, high-speed brass terminal stamping, high-temperature nylon injection molding, electroplating surface treatment and automatic pin assembly. Imported Taiwan high-speed punching machines and Japanese precision injection molding equipment strictly control PCB footprint dimensions within unified tolerances to adapt to fully automatic reflow soldering production.
This right-angle SMT wafer connector is suitable for tape and reel packaging to match automated SMT mounting lines. Operators position the connector onto designated PCB pads following the official PCB layout drawing and complete reflow soldering fixation, then crimp discrete wires into matched AH2501 female housing and lock the housing onto the wafer header to finish wire and circuit board interconnection. It is widely applied in wearable smart devices, Bluetooth audio products, digital camera internal modules, industrial miniature control boards, household small appliances, portable data storage equipment and handheld precision testing instruments. During processing and usage, users must strictly follow standard reflow temperature curve to prevent nylon insulator thermal deformation, avoid forced mis-mating to prevent pin deformation, and store unused connectors in dry sealed packaging to avoid brass terminal oxidation. All products comply with EU RoHS and REACH environmental regulations, most items obtain UL certification numbered E472792, and our factory has passed ISO9001, ISO14001 and IATF16949 automotive industry quality management certifications.
Compared with other connector suppliers, Antenk independently develops over 250 sets of plastic molds and 180 sets of precision brass stamping molds, supporting personalized customization of pin count and plating parameters for this SMT wafer connector series. Our 10000-square-meter manufacturing plant with 250 professional staff is equipped with more than 180 automatic assembly machines and 20 sets of professional testing instruments, ensuring stable batch product quality and fast bulk order delivery. As an enterprise awarded Guangdong Famous Trademark certification, more than 70 percent of our wire-to-board connectors are exported to global markets. Our whole-process inspection system covering raw material incoming, in-process production and finished product delivery improves anti-vibration and high-temperature resistance, effectively eliminating intermittent circuit faults caused by poor contact, and establishing long-term reliable cooperative partnerships with customers across Europe, America, Southeast Asia and other international regions.
