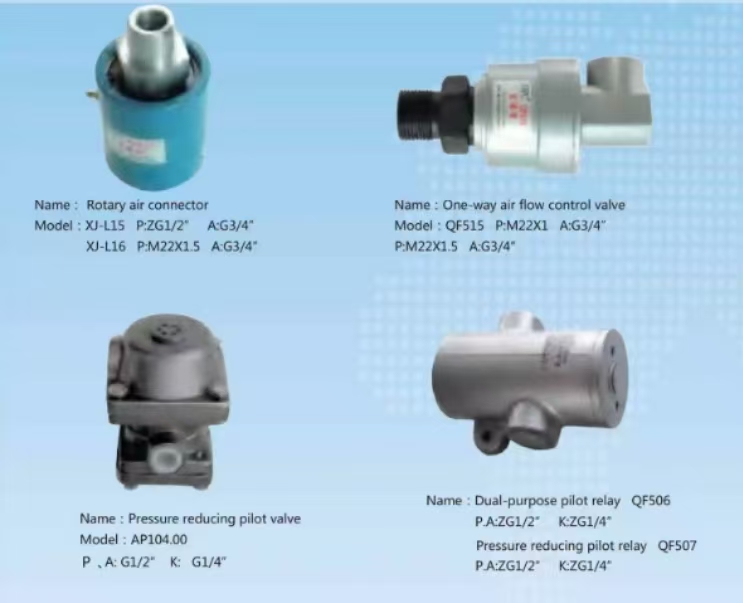

Full Specification: XJ-L15 & XJ-L16 Rotary Air Connector
1. Product Overview
XJ-L15 and XJ-L16 are single-pass rotary air guide joints (air swivel joints) of XJ series, specially designed to deliver compressed air from stationary pipelines to continuously rotating mechanical parts without hose tangling or breakage. They are standard OEM spare parts for pneumatic air tube clutches, widely used in brick making machines, punching presses, oil workover rigs, drilling rigs and construction machinery. Interchangeable with QY494 and QF515 old models.
- XJ-L15: DN15 standard mainstream model, most widely installed for general pneumatic clutches
- XJ-L16: DN16 enlarged bore upgraded model for high airflow demand
2. Model Definition
- XJ: Series code for rotary air guide connector
- L: Vertical threaded inline structure (external thread rotary shaft + side stationary air inlet)
- 15/16: Nominal bore DN15 / DN16 (mm), determines air flow capacity
3. Construction & Materials
1. Housing: Integrally precision machined 6061 hard aluminum alloy with hard anodizing treatment, wear-resistant and anti-corrosion
2. Rotary Shaft: Quenched & tempered 45# carbon steel male thread shaft, connected to clutch rotary hub
3. Sealing Assembly: Combined graphite + FKM end face seal with preload compression spring for automatic wear compensation
4. Internal Parts: Precision ball bearings, compression springs, dustproof oil seals
5. Maintainable Design: Grease nipple on side for regular bearing lubrication
6. Port Layout: Top male thread (rotary end for rotating parts) + side female thread (stationary end for fixed air pipeline), single inlet & single outlet air passage
4. Technical Parameters
Item XJ-L15 XJ-L16
Nominal Bore DN15 DN16
Thread Spec. Rotary shaft G3/4; Air inlet G1/2 Rotary shaft G1; Air inlet G3/4
Working Pressure 0.05~1.0MPa, Max. Pressure 1.6MPa 0.05~1.0MPa, Max. Pressure 1.6MPa
Max Rotating Speed ≤1000rpm (Recommended: ≤500rpm for long service) ≤1000rpm
Operating Temperature -40℃ ~ +60℃ (custom ultra-low temp version available) -40℃ ~ +60℃
Air Leakage Rate ≤25Nml/min ≤25Nml/min
Net Weight 0.85kg 1.1kg
Compatible Medium Dry clean compressed air only Dry clean compressed air only
5. Working Principle
Side female port connects to stationary air pipeline while aluminum housing remains fixed; top male shaft rotates synchronously with clutch main shaft. The spring-tightened graphite dynamic end face seal maintains airtight cavity during rotation. Compressed air flows from side inlet through central shaft bore into rotating air tube clutch to realize continuous air supply.
6. Product Features
1. Single-pass pneumatic dedicated design, compact integrated structure for easy on-site installation
2. Spring-compensated end face seal automatically compensates wear gap, stable anti-leak performance under frequent start-stop cycles
3. Grease nipple maintenance structure reduces bearing abnormal noise and jamming failure
4. Rust-proof impact-resistant aluminum housing, suitable for dusty harsh working conditions
5. XJ-L15 universal replacement for QF515/QY494; XJ-L16 for high-flow heavy-duty applications
7. Application Scope
1. Building Materials: Pneumatic clutch air supply for automatic brick making machines
2. Forging Equipment: Punch press & friction press pneumatic clutch
3. Oil & Mining: Workover rig, drilling winch rotary air circuit
4. Construction Machinery: Pneumatic tire inflation circuit for road rollers
5. Automation Equipment: Rotary worktable & rotary fixture pneumatic actuator air supply
8. Selection Guide
- General small & medium clutches, standard pneumatic circuits: Choose XJ-L15
- Large air tube clutches, fast high-volume inflation, high-speed equipment: Choose XJ-L16
- Replacement for old units: Confirm original thread size; G3/4 shaft → XJ-L15, G1 shaft → XJ-L16
