1、Product Description

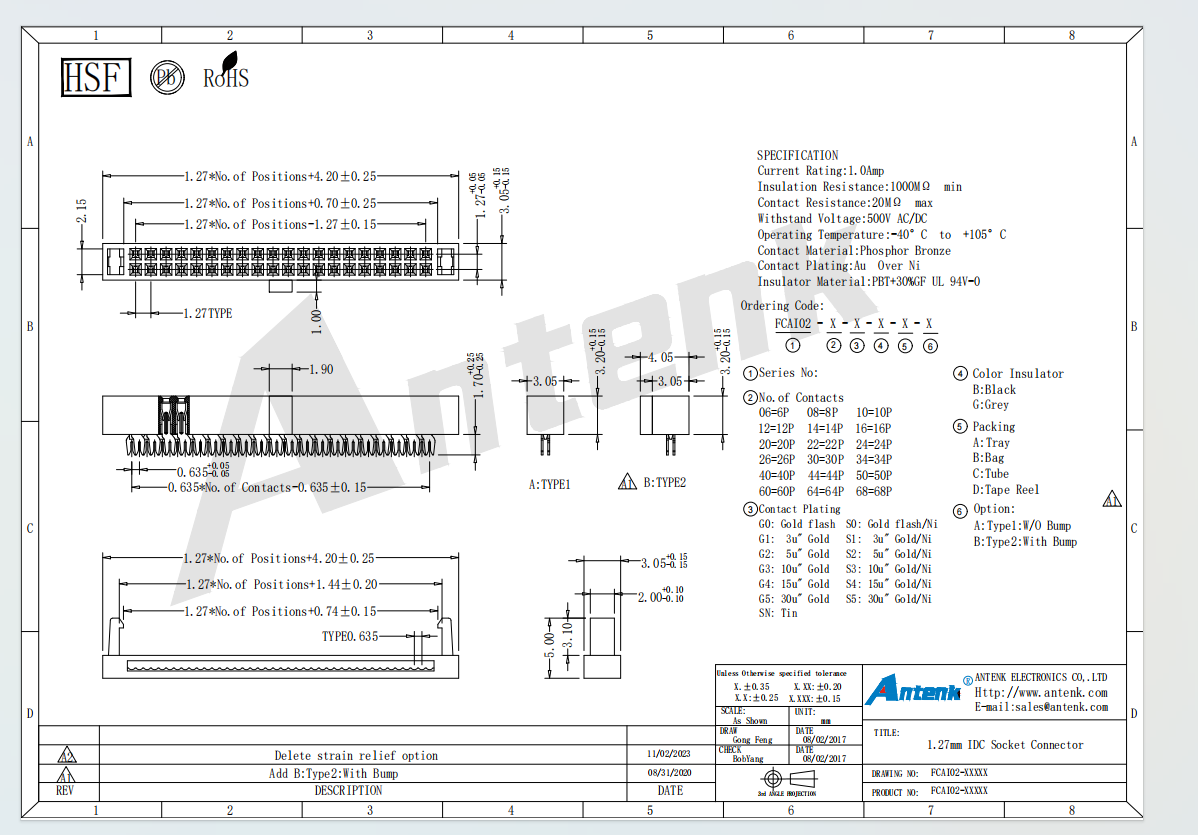

Manufactured by Huizhou Antenk Electronics Co., Ltd, the FCA102 series 1.27mm IDC socket connector is a professional insulation displacement connection component that achieves rapid wire conduction without pre stripping cable insulation. According to engineering drawing standards, this connector supports pin counts ranging from 6 pins up to 68 pins with fixed 1.27mm pitch, and it is divided into Type 1 without anti misplug bump and Type 2 with positioning bump to avoid reverse assembly. The insulator is made of PBT material filled with 30 percent glass fiber which meets UL94V-0 flame retardant standard, and can be customized into black and gray two mainstream colors. Contact pieces are stamped from phosphor bronze with gold over nickel plating and tin plating options to improve conductivity and anti oxidation performance. Its electrical parameters include 1.0A rated current, minimum 1000MΩ insulation resistance and maximum 20MΩ contact resistance, withstanding 500V AC DC dielectric voltage and operating steadily from minus 40°C to 105°C. All PCB layout sizes are controlled within precise tolerances to adapt to standard through hole soldering processes. Our complete production workflow includes independent precision mold development, high speed phosphor bronze terminal stamping, high temperature resistant plastic injection molding, electroplating surface treatment and automatic assembly. Imported Taiwan high speed punching machines and Japanese precision injection molding equipment guarantee stable dimensional consistency during mass batch production.
This IDC socket connector provides tray, bag, tube and tape reel multiple packaging modes to match manual assembly and fully automatic production lines. Operators fix the socket onto printed circuit boards through through hole soldering following the official PCB layout drawing, then press flat ribbon cables into the IDC terminal slots with professional crimping tools, so the sharp terminal blades cut through wire insulation and form stable electrical connection directly. It is widely applied in industrial control signal transmission modules, communication equipment internal wiring, digital display equipment, smart household control boards, portable storage devices and precision testing instruments. During operation, users need to use standard crimping pressure to prevent terminal deformation caused by excessive force, make full use of the anti reverse bump structure to avoid wrong direction wiring, and store unused connectors in dry sealed packaging to prevent phosphor bronze contacts from rusting. All products comply with EU RoHS and REACH environmental regulations, most specifications obtain UL certification numbered E472792, and our factory has passed ISO9001, ISO14001 and IATF16949 automotive industry quality management certifications.
Compared with other connector manufacturers, Antenk owns more than 250 sets of self developed plastic molds and 180 sets of precision metal stamping molds, supporting flexible customization of pin quantity, housing color, bump structure and contact plating type for this IDC socket series. Our 10000 square meter production base with 250 professional employees is equipped with over 180 automatic assembly machines and 20 sets of professional testing instruments, ensuring consistent batch product quality and fast delivery for large volume orders. As an enterprise certified as Guangdong Famous Trademark, more than 70 percent of our IDC connectors are exported to global markets. Our multi stage incoming, in process and finished product inspection system greatly enhances crimping stability and vibration resistance, effectively reducing signal interruption caused by loose wire connection and establishing long term trusted cooperative partnerships with customers across Europe, America, Southeast Asia and other international regions.
2、FAQ
Q: How many packaging do you have?
A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.
Q: Can you do our own packaging?
A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.
Q: How many different types of products your company manufactures?
A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.
