Product details

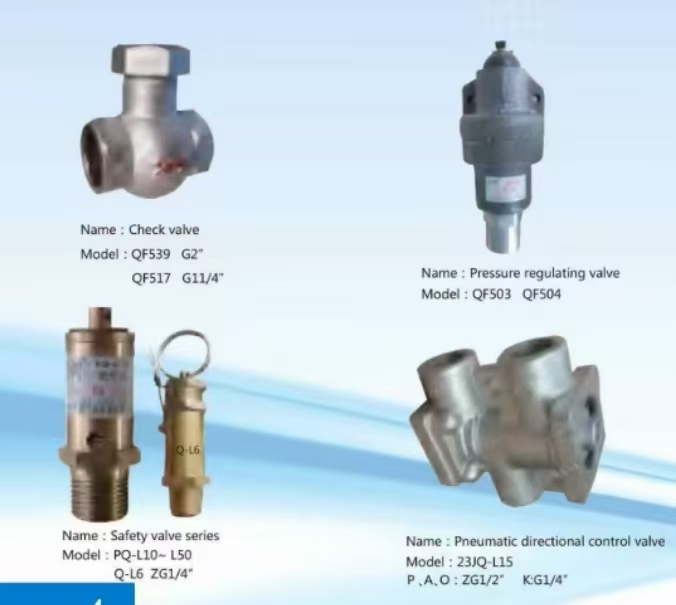

1. Product Overview

QF539 and QF517 are heavy-duty threaded lift-type check valves of QF series, widely installed in pneumatic pipelines and low-pressure oil circuits. They are mounted at the outlet of hydraulic pump and Hydraulic piston pump inside the whole hydraulic system, allowing fluid to flow in one direction only and blocking reverse backflow, so as to protect pump assemblies and pipeline components from reverse impact damage. They are matched with rotary air connectors and Rexroth hydraulic pumps for brick making machines, drilling rigs and construction machinery systems.

2. Model Definition

- QF: Series code for general pneumatic & hydraulic check valve

- 517 / 539: Factory structural design serial number, corresponding to fixed bore size and thread port

3. Structure & Materials

1. Valve Body: Integral cast iron casting with thickened wall, shock-resistant and durable for harsh sites

2. Internal Assembly: Spring-loaded lift poppet valve (hardened steel cone spool + return compression spring)

3. Sealing Structure: Combined metal hard seal + NBR soft seal for minimal leakage

4. Mounting: Straight female threaded inline installation, flow arrow marked on valve body for assembly guidance

5. Compatible Media: Dry compressed air, mineral hydraulic oil, clean water, diesel oil (suitable for standard hydraulic system fluid)

4. Technical Parameters

Item QF517 QF539

Nominal Bore DN40 DN50

Port Thread ZG1-1/4 (RC1 1/4) G2

Effective Flow Area 480 mm² 650 mm²

Working Pressure 0~1.0MPa 0~1.0MPa

Cracking Pressure 0.03~0.05MPa 0.03~0.05MPa

Temp Range 5℃~60℃ 5℃~80℃

Service Life ≥1,800,000 cycles ≥2,000,000 cycles

Overall Size 166mm(L)×127mm(W) 167mm(L)×155mm(W)

Net Weight 2.9KG 4.2KG

5. Working Principle

Forward fluid pushes the poppet against spring force to open the passage. When the hydraulic pump or Hydraulic piston pump stops running, reverse pressure together with spring force presses the spool tightly on valve seat to fully cut off backflow, maintaining pressure of the whole hydraulic system and preventing cylinder sagging and pump internal wear.

6. Features & Application

1. Large flow area reduces pipeline pressure drop without limiting output flow of hydraulic pump, ensuring high efficiency of the entire hydraulic system

2. Robust cast iron body adapts to bumpy & dusty outdoor construction working conditions

3. Sensitive opening & rapid closing performance for frequent start-stop working cycles

4. Fully mechanical passive structure, easy retrofitting for simple hydraulic system without electric control

5. OEM original replacement part for old brick machines & oil drilling rigs
