Nano Purifier Pro - Industrial Compressed Air Nano Purifier | 3 National Invention Patents for CNC, Laser, Semiconductor, Medical Industry

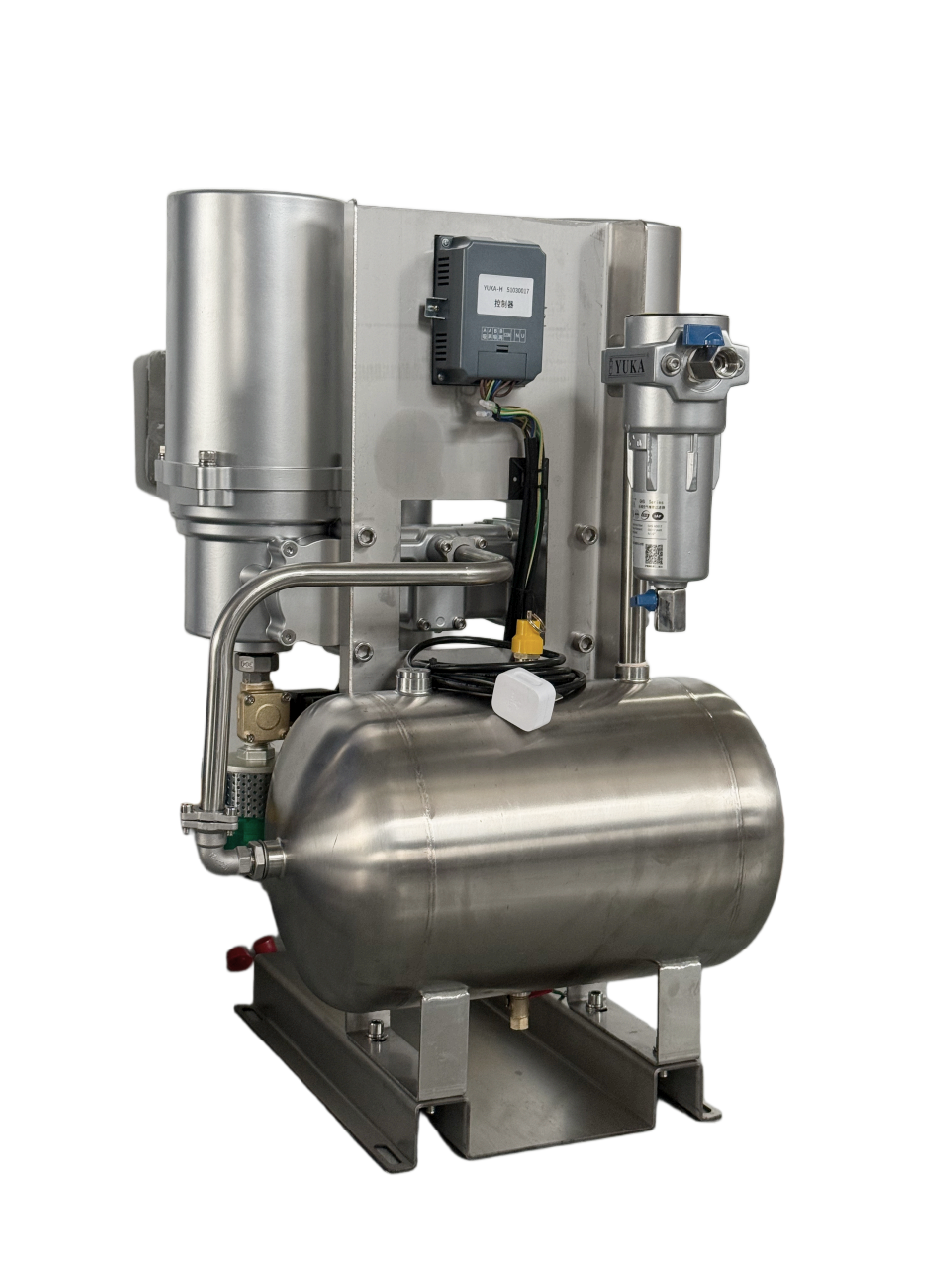

Nano Purifier Pro Advanced Compressed Air Nano Purification System
Manufactured by Hongrijia Depurate Facility Science & Technology Co., Ltd. (YUKA), the Nano Purifier Pro is our flagship integrated compressed air purification device equipped with 3 independent national invention patents, delivering efficient, stable and ultra-clean compressed air within only 10 minutes to thoroughly resolve industrial air pollution troubles for all precision manufacturing enterprises.
As a national standard drafting unit for compressed air purification industry, YUKA founded in 1998 has 16 consecutive years of national high-tech & specialized sophisticated enterprise qualification, certified by ISO9001, ISO14001, ISO13485, GB national standard and CE certification. Our Nano Purifier Pro inherits our core compressed air purification technology, upgrading nano-level filtration and drying performance to remove all harmful contaminants in compressed air completely.
1. 3 National Invention Patents, Leading Nano Purification Technology
Our exclusive patented nano purification structure realizes ultra-high precision filtration effect: residual oil mist controlled at 0.005–0.1 PPN, residual particulates filtered down to 0.01–0.1μm, thoroughly intercept liquid water, water mist and water vapor mixed in compressed air. No tiny impurities will flow into post-process pipelines and precision equipment.
2. Multi-Flow Model Matching, Wide Working Condition Adaptability
Complete equipment specification lineup covers gas flow rate from 0.3 m³/min to 10.5 m³/min, including small-flow Nano Purifier Pro and medium-low flow integrated refrigerated & adsorption dryer series (INTG B-025, INTG B-068). Working temperature ranges support ≤25°C, ≤45°C and high-temperature working condition up to 45°C, matching all mainstream air compressors and terminal equipment with RC1/2” standard interfaces. Universal optional adapters fit all common industrial pipe diameters for seamless installation.
3. 10-Minute Rapid Air Pollution Removal, Stable Continuous Operation
Quickly purify contaminated compressed air in 10 minutes, maintaining consistent clean air output for 24-hour non-stop production lines. The integrated all-in-one structure combines refrigeration drying and adsorption drying, saving workshop space compared with split traditional purifiers.
4. Certified Reliable Quality, Global Standard Compliance
Passed GB national industry standard, CE export certification and three major ISO management system certifications (quality, environmental, medical device quality). The whole machine is made in China with strict industrial quality inspection, stable operation without frequent failures for long-term mass production.
5. Simple Plug-and-Play Installation
Clear two-step installation guide: Step 1 connect air inlet internal thread port with air compressor; Step 2 link air outlet to post-process production pipeline. No complicated transformation required for existing factory air supply systems.
Specification
| Model | Pipe Size | Flow rate (m³/min) | Working Pressure (barg) | PDP (℃) | Oil Vapor(ppm) | Particle Dust (μm) | Dimension（mm) |
| INTG A-003 | Rc1/2" | 0.3-0.5 | 3～10 | -20～-40 | 0.1~0.005 | 0.1~0.01 | 500*520*710 |
| INTG A-005 | Rc1/2" | 0.5-0.8 | 3～10 | 500*520*810 | |||
| INTG B-012 | Rc1/2" | 1.2 | 6-20 | -20～-40 | 0.1~0.005 | 0.1~0.01 | 1410*615*1235 |
| INTG B-018 | Rc3/4" | 1.8 | 6-20 | 1410*615*1235 | |||
| INTG B-026 | Rc1" | 2.6 | 6-20 | 1490*615*1600 | |||
| INTG B-036 | Rc1" | 3.6 | 6-20 | 1490*615*1870 | |||
| INTG B-068 | Rc1-1/2" | 6.8 | 6-20 | 1900*650*1870 | |||
| INTG B-085 | Rc2" | 8.5 | 6-20 | 2100*650*1870 | |||
| INTG B-105 | Rc2" | 10.5 | 6-20 | 2000*1200*1870 |

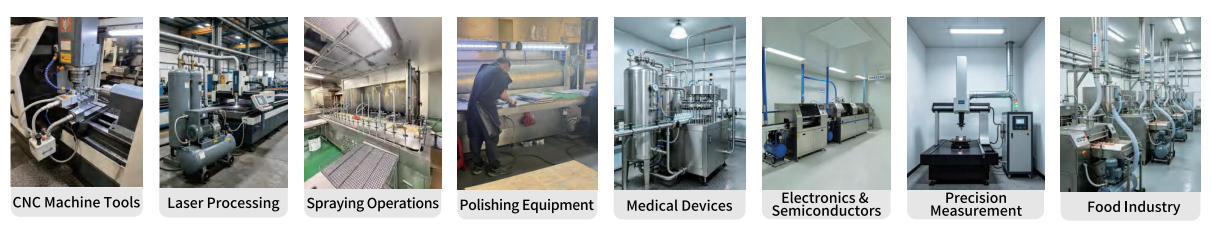

Main Application Scenarios
Nano Purifier Pro is specially recommended for industries with high requirements on compressed air cleanliness, covering:
1. Fully Protect High-Precision Production Equipment
Oil mist, water vapor and micro particles in unpurified compressed air will cause rust, blockage and abrasion of precision valves, laser heads, machine tool spindles and semiconductor chips. Nano Purifier Pro eliminates all contaminants to extend equipment service life and avoid frequent precision component replacement.
2. Stabilize Production Quality & Reduce Defect Rate
Impure air leads to uneven spraying paint layers, chip circuit short-circuit, measurement data deviation and unqualified medical device finished products. Nano-level clean air ensures consistent product surface finish, accurate processing dimension and qualified medical & electronic finished goods, effectively lowering production rejection rate.
3. Cut Operation & Maintenance (O&M) Costs
Less equipment failure reduces downtime loss and maintenance labor cost; long service life of internal filter elements lowers consumable replacement frequency. Enterprises can achieve obvious cost reduction on daily production operation within a short usage cycle.
4. Boost Overall Factory Productivity
Rapid 10-minute air purification provides stable continuous clean air supply, avoiding production line shutdown caused by air pollution equipment faults. Smooth production flow greatly improves daily output and enterprise comprehensive production efficiency.
5. Meet Strict Industry Compliance Standards
Medical, semiconductor and food industries have strict compressed air cleanliness access requirements. Nano Purifier Pro’s ultra-low residual oil and particulate indicators fully meet industry regulatory standards, helping enterprises pass factory inspection, export audit and certification review smoothly.
Company Strength Support
Hongrijia YUKA is a global technology powerhouse in compressed air purification, the domestic pioneer of integrated compressed air purification solutions and national standard drafting unit for compressed air purification industry. We have rich customer cooperation cases covering all precision manufacturing sectors, with professional technical matching service for customized flow and working condition solutions.
Consult our technical team via hotline:+86 755 2868 6438 for equipment model selection and factory layout scheme design.
