Product details

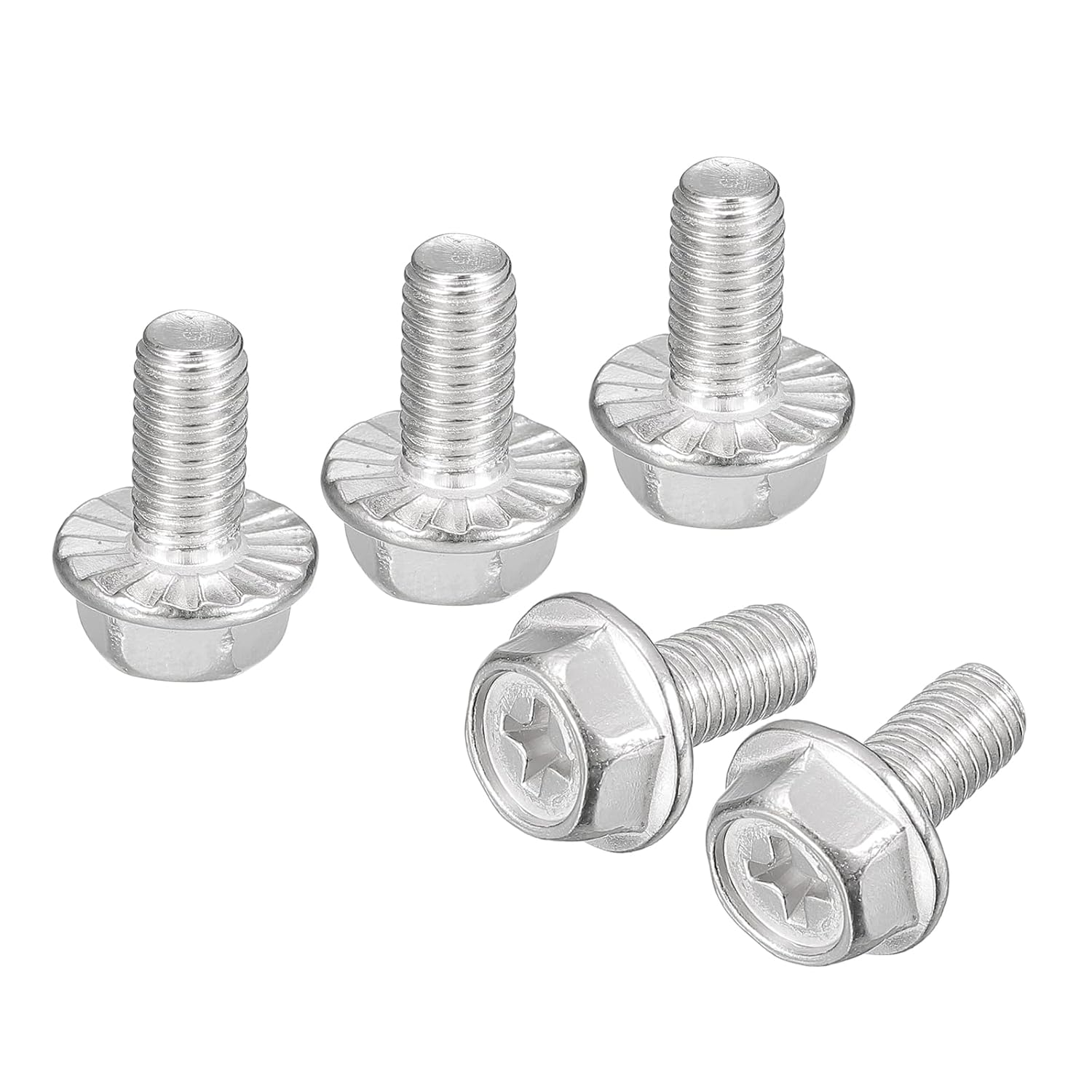

Our factory specializes in manufacturing high-performance stainless steel Bolt and matching Nut series, among which cross recessed hex flange bolt is one of our core wholesale fastener products. This integrated flange bolt combines hex head, cross drive and serrated anti-slip flange washer as one piece, eliminating extra gasket installation steps for assembly clients. All raw materials adopt food-grade and marine-grade stainless steel to guarantee long-term anti-rust performance for outdoor and humid working environments. As direct factory supplier, we support bulk wholesale for global fastener importors, machinery distributors and retail chain merchants. The Bolt can be produced per DIN, ISO international standards, and we provide full OEM & private label customization service to meet brand merchants’ personalized procurement demands. Compared with ordinary hex bolts, the serrated flange base enhances friction locking force to prevent loose connection under vibration working conditions, widely matched with our supporting stainless steel Nut for complete fastening assembly solutions.

2.Product Features

✔ Integrated serrated flange base prevents loosening under vibration without extra washers

✔ Cross recess phillips drive enables quick manual and electric tool installation

✔ 304/316 stainless steel raw material delivers long-term rust and corrosion resistance

✔ Precision rolled metric threads for smooth, tight fit during fastening

✔ High tensile strength structure suitable for heavy load industrial assembly work

✔ Uniform passivated surface without paint or wax to avoid surface contamination

✔ Customizable head marking for brand logo and size identification

✔ Wide range of metric sizes from M3 to M12 to match diverse equipment demands

3.Specifications Table

Item	Specification
Material	304 Stainless Steel / 316 Stainless Steel
Length	6mm to 100mm Customized
Surface	No Lacquer No Wax, Passivated Anti-rust Finish
OEM	Available, Custom Drawing Acceptable
MOQ	Negotiable, Low MOQ for Trial Wholesale
Head Type	Hex Flange Head with Serrated Anti-slip Base
Drive Type	Cross Recess Phillips Drive
Thread Standard	ISO Metric Thread
Tensile Grade	A2-70 (304), A4-80 (316)
Working Temperature	-40°C to 450°C

4.. Product Details

Raw Material Selection

All our hex flange Bolt products use certified 304 or 316 stainless steel bars sourced from qualified domestic metal mills. 304 stainless steel Bolt fits general indoor machinery and construction use with balanced cost and anti-rust performance, while 316 stainless steel flange Bolt provides superior acid and salt corrosion resistance for coastal, marine and food processing equipment installation.

Manufacturing Craft

The whole production flow of each Bolt includes metal blank cutting, hot forging hex flange head forming, precision thread rolling, surface passivation treatment and full finished product sorting. Thread rolling technology ensures complete, uniform thread teeth without burrs, avoiding thread slipping during repeated disassembly. The integrated flange and hex head are forged in one molding process, eliminating separation risk under long-term vibration working conditions. After forming, all Bolt workpieces go through chemical passivation to form a dense anti-rust protective film on metal surface, meeting export hardware quality standards with no paint or wax coating to prevent chemical residue contamination.

Core Competitive Advantages for Wholesale Buyers

Compared with split bolt and washer combinations, our integrated hex flange Bolt cuts installation labor cost by over 30% for large construction and equipment assembly projects. Consistent dimensional tolerance across all bulk production batches reduces product return rate for overseas distributors. Our factory maintains stable raw material stock to guarantee on-time delivery for large container wholesale orders, avoiding supply chain delays for import merchants.

Strict Quality Control System

Every production batch of flange Bolt undergoes multi-stage inspection: raw metal composition testing, head hardness tensile testing, thread size caliper inspection, salt spray anti-corrosion testing and finished appearance sorting. Unqualified Bolt pieces are fully separated and recycled, only qualified products enter export packaging links to protect wholesale clients’ brand reputation in local markets.

5. OEM / ODM Capabilities

We offer full one-stop customization service for all wholesale importers and brand owners:

Logo Customization: Laser engrave client’s private brand logo, size code or trademark on bolt hex head
Size Customization: Develop non-standard length, thread pitch and head thickness flange Bolt per client technical drawings
Packaging Customization: Design custom export carton labels, small retail plastic bags with buyer brand printing
Private Label Service: Unbranded blank bolt products for clients to repack under their own local brand names

Mold ODM Support: Develop exclusive new flange bolt molds for clients with unique fastener design requirements

Thread Size (d)	Thread Pitch (P)	Width Across Flats (s)	Flange Outer Dia (dc)	Min Full Thread Length (b)
M3	0.5	5.5	9.8	12
M4	0.7	7.0	11.8	14
M5	0.8	8.0	14.2	16
M6	1.0	10.0	16.2	18
M8	1.25	13.0	20.0	22
M10	1.5	15.0	23.8	26
