1、Product Description

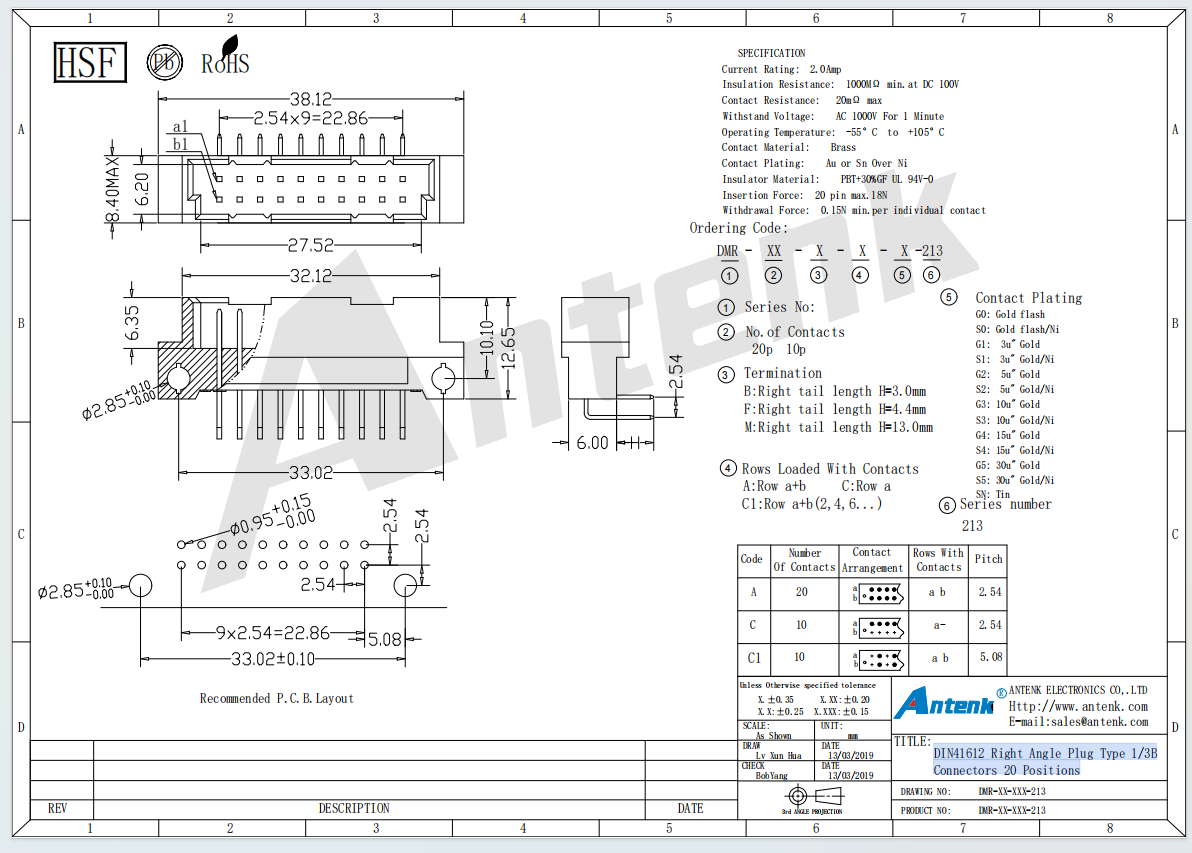

Manufactured by Huizhou Antenk Electronics Co., Ltd, the DMR series DIN41612 right angle 1/3B standard plug connector with 20 positions is a professional industrial backplane interconnection component for signal and low-power circuit transmission between mainboard and sub-board modules. In accordance with engineering drawing specifications, this connector adopts 2.54mm fixed pitch, supporting 10 pins single row and 20 pins double row two layout modes. The insulating shell is injection molded from PBT material filled with 30 percent glass fiber that meets UL94V-0 flame retardant standard. Brass contact terminals are optional with gold flash, various thickness selective gold plating and tin over nickel plating to enhance anti-corrosion and conductive stability. Its electrical indicators include 2.0A rated current, minimum 1000MΩ insulation resistance and maximum 20mΩ contact resistance, capable of enduring 1000V AC dielectric voltage for one minute and operating stably from minus 55°C to plus 105°C. Three different right-angle pin tail lengths are reserved to match PCB boards of different thicknesses, with standardized insertion force and single contact minimum withdrawal force to guarantee long-term reliable mating. Our complete production process covers independent precision mold development, high-speed brass terminal stamping, high temperature resistant plastic injection molding, anti-oxidation electroplating and automatic assembly. Imported Taiwan high-speed punching machines and Japanese precision injection molding equipment strictly restrict all dimensional tolerances to fit standard PCB through-hole soldering and assembly procedures.
This right angle DIN plug connector is installed by inserting the bent right-angle pins into reserved through holes on printed circuit boards following the official PCB layout drawing and finishing wave soldering fixation, then mating the plug with matched DIN41612 female socket to build a complete inter-board signal transmission link. It is widely applied in industrial control rack backplanes, communication cabinet modular circuit boards, automated testing equipment, embedded industrial computers, network switching equipment and precision measuring instruments. During installation and application, users must avoid excessive soldering temperature to prevent plastic housing deformation, prohibit repeated plugging and unplugging to avoid terminal elastic fatigue and poor contact, and store unused connectors in dry sealed packaging to prevent brass pins from oxidation and rusting. All products comply with EU RoHS and REACH environmental protection directives, most product specifications pass UL certification with certificate number E472792, and our factory has obtained ISO9001, ISO14001 and IATF16949 automotive industry quality management system certifications.
Compared with other connector manufacturers, Antenk independently develops more than 250 sets of plastic molds and 180 sets of precision brass stamping molds, supporting customized pin quantity, pin tail length and contact plating scheme for this 1/3B DIN41612 right angle connector series. Our 10000-square-meter production base with 250 professional employees is equipped with over 180 automatic assembly machines and 20 sets of professional testing instruments, ensuring stable batch product quality and fast delivery for large bulk orders. As an enterprise awarded Guangdong Famous Trademark qualification, more than 70 percent of our industrial DIN connectors are exported to global overseas markets. We implement full-process quality inspection including incoming material inspection, in-process production monitoring and finished product inspection, greatly improving shock resistance and aging resistance, effectively reducing circuit disconnection faults caused by loose connection, and establishing long-term trusted cooperative partnerships with customers across Europe, America, Southeast Asia and other international regions worldwide.
